In 0105: [Perpendicularity Adjustment], you cannot individually adjust the image position on
sides 1 and 2.
You cannot skew paper with 0105: [Perpendicularity Adjustment]. For details about adjusting
paper skew,
page 91 "Paper Skew".
If it is difficult to check and adjust the image position on the printed sheet, print one side of the
format used in page 170 "Aligning the Image Position on Side 2 to That on Side 1 (Using a
Template to Align the Image Position on Side 1 and 2)".
(b) Adjust the image position (If custom paper is used)

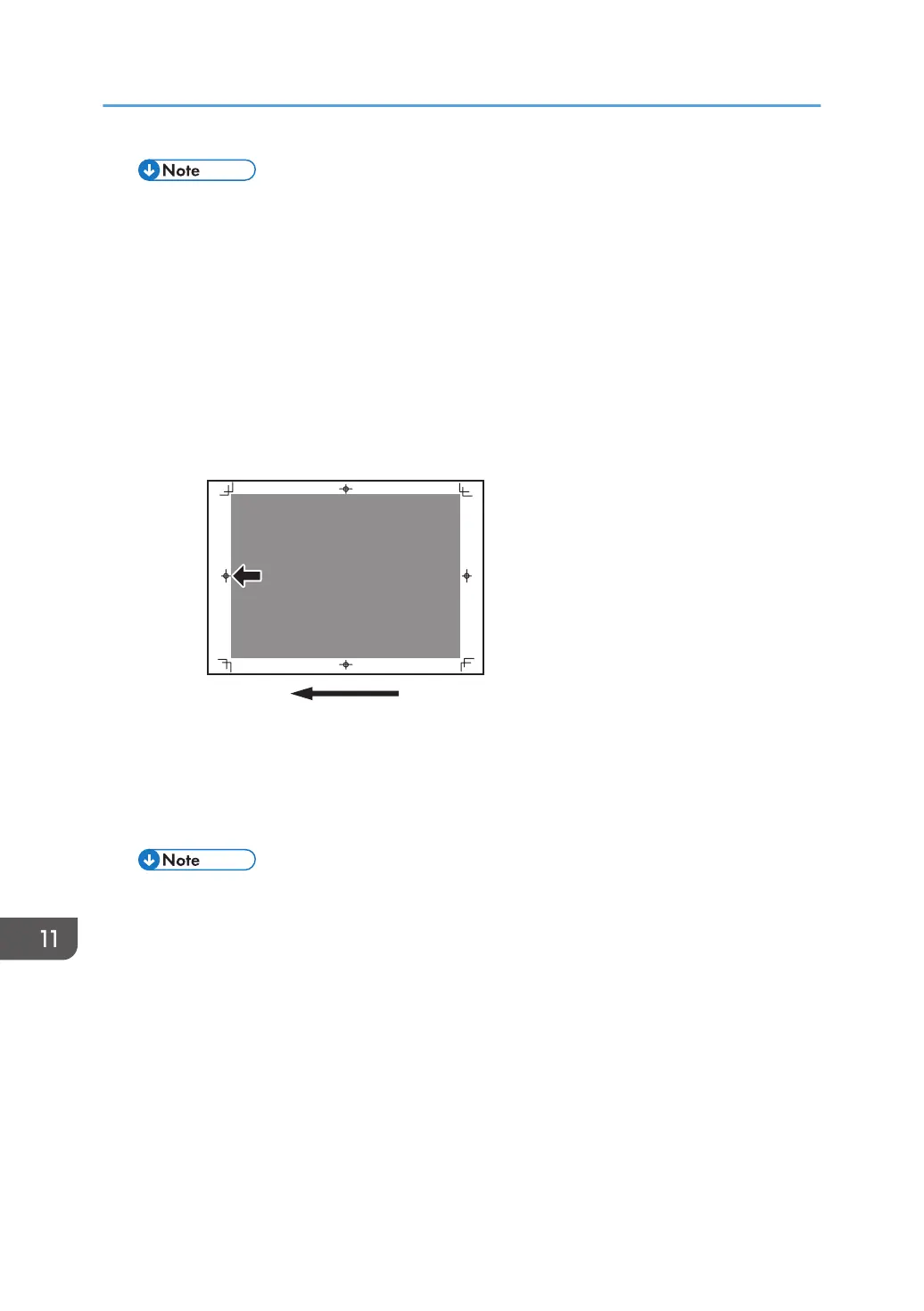

Adjust the vertical and horizontal image position so that the center (A) of the leading edge of the
image is aligned to the registration mark.
A
DFP492
In [Advanced Settings] for the custom paper you are using, select 1101: [Image Position] and
adjust the image position.
[Across Feed] of [Image Position: Side 2]
[With Feed] of [Image Position: Side 2]
For details about specifying settings in the [Adjustment Settings for Operators] menu, and
[Advanced Settings] menu, see the Adjustment Item Menu Guide.
If the problem persists even though you have adjusted the setting to its maximum and minimum
values, contact your service representative.
If it is difficult to check and adjust the image position on the printed sheet, print one side of the
format used in page 170 "Aligning the Image Position on Side 2 to That on Side 1 (Using a
Template to Align the Image Position on Side 1 and 2)".
(c) Adjust the magnification (Across feed direction)
Adjust the horizontal magnification to adjust the width between the front and back corners (B) on
the leading edge of the image.
11. Advanced Instructions
168
