2.Replacement and Adjustment
20

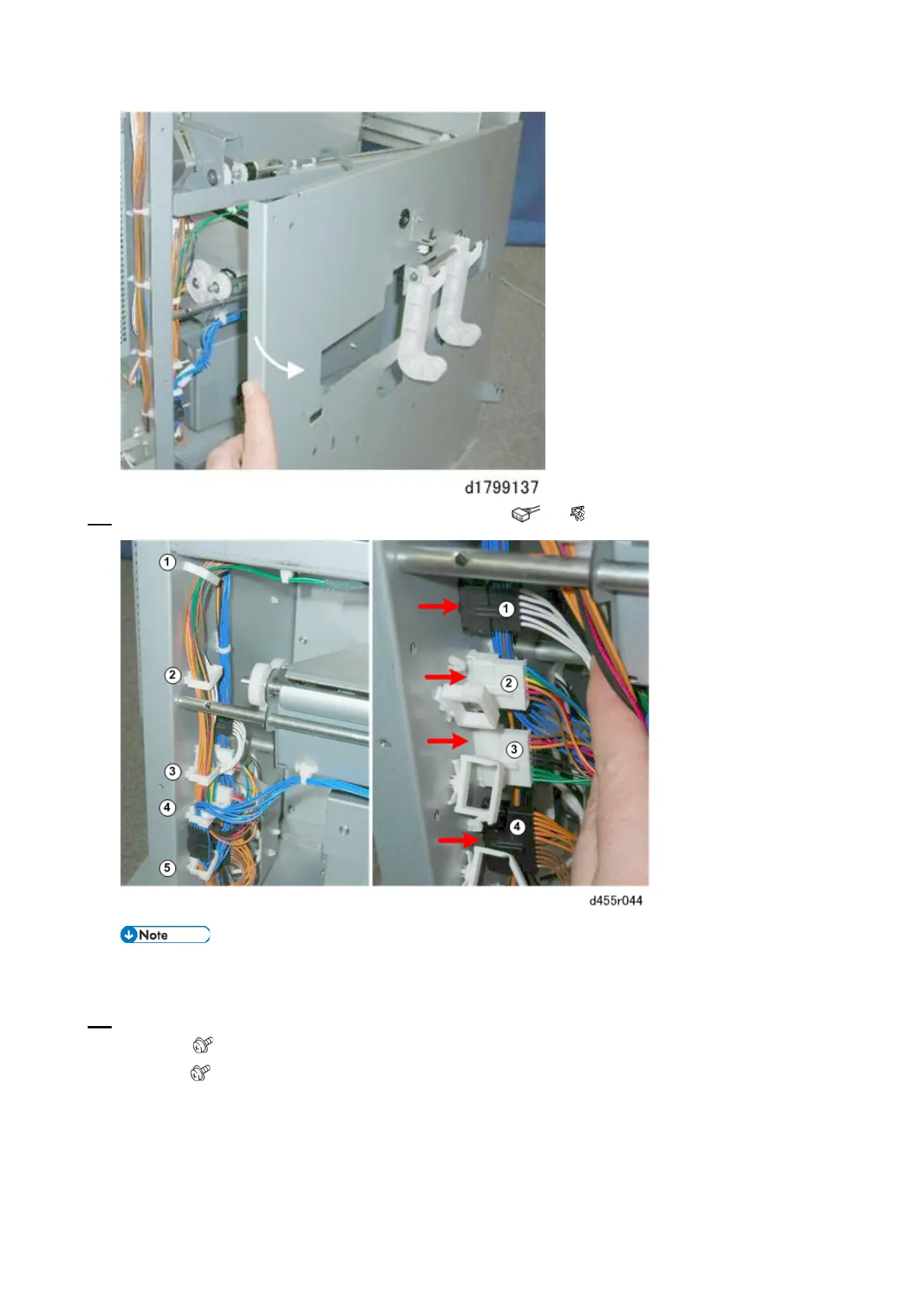

10. Open the harness clamps and pull out the harnesses ( x4, x5).
• Close the harness clamps to prevent entangling the loose harnesses when the unit is
removed.
11. Remove the trim positioning unit:
[A] Front ( x2)
[B] Rear ( x2)
