Ricoh TR5050 - Transport Unit

2.Replacement and Adjustment
21

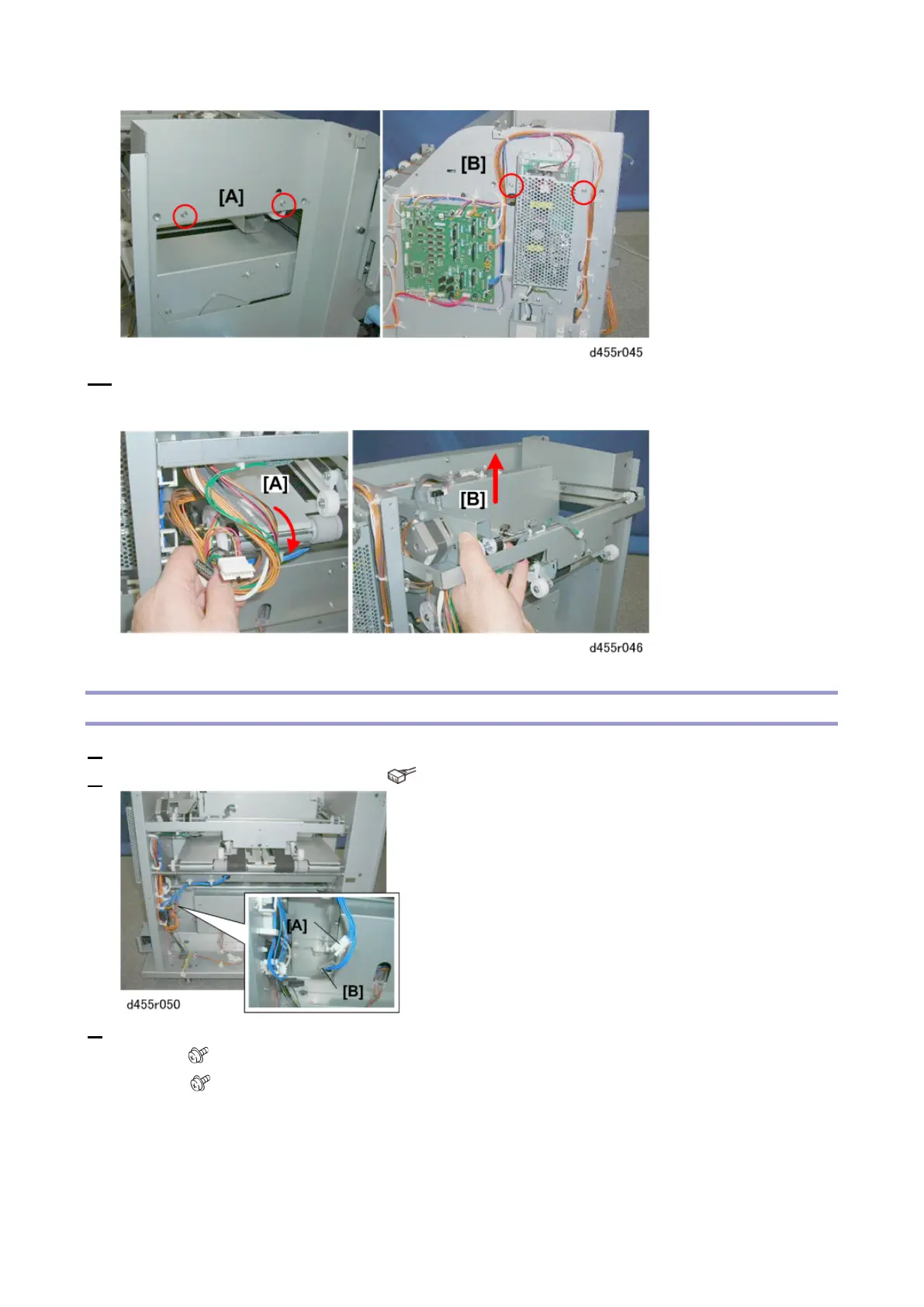

12. Pull the harnesses [A] out from behind the shaft. Lift the trim positioning unit [B] straight up and
remove it.
Transport Unit
1. Remove the trim positioning unit. (Trim Positioning Unit)
2. Remove the connectors [A] and [B]. ( x2)
3. Remove the shafts.
[A] Front( x1)
[B] Rear ( x1).
