2.Replacement and Adjustment
55

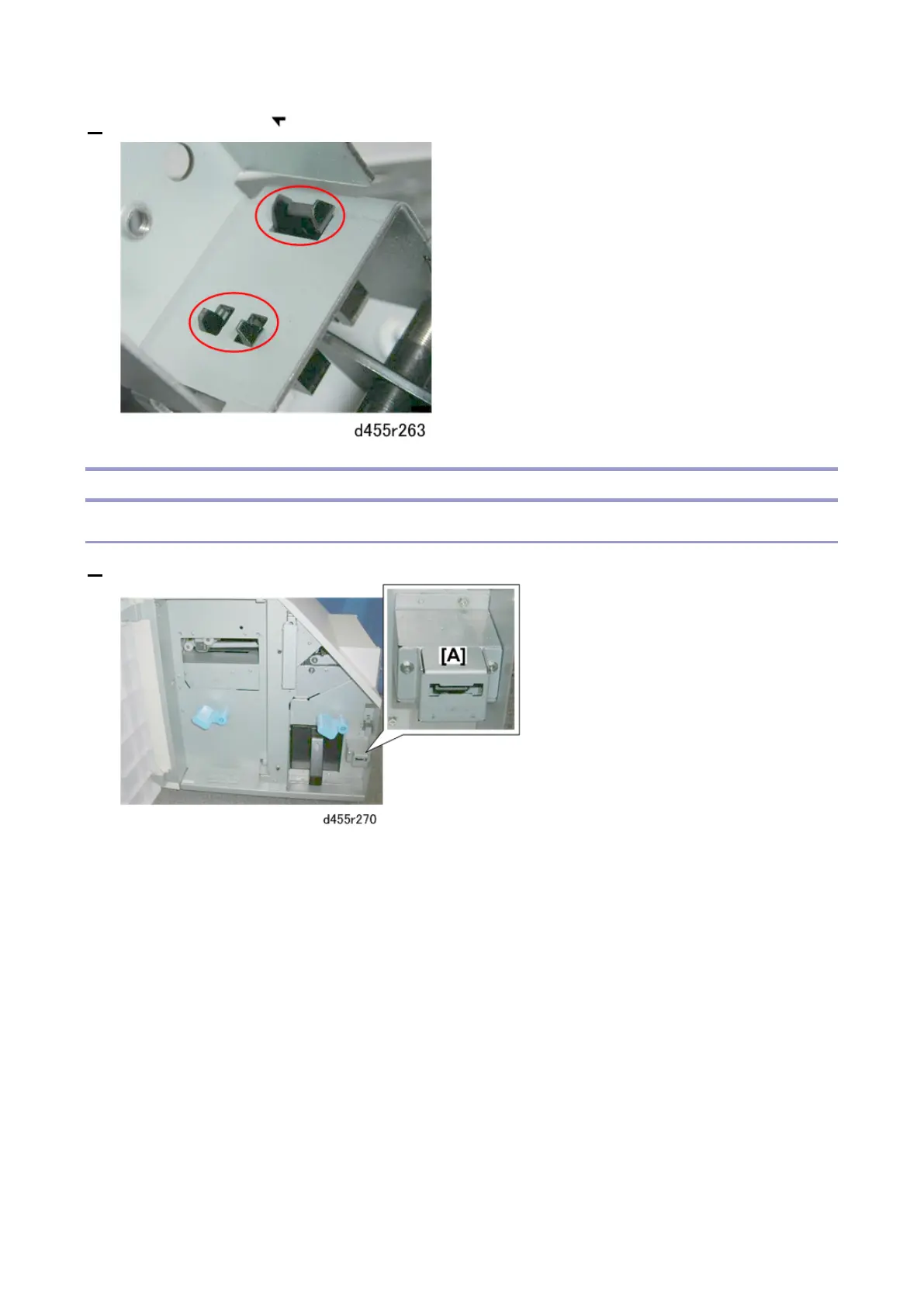

7. Remove the sensor ( x5)
Switches
Door Switch
1. Open the front door and locate the switch [A].
