Ricoh TR5050 - Transport Unit

2.Replacement and Adjustment
35
Transport Unit
Exit Motor

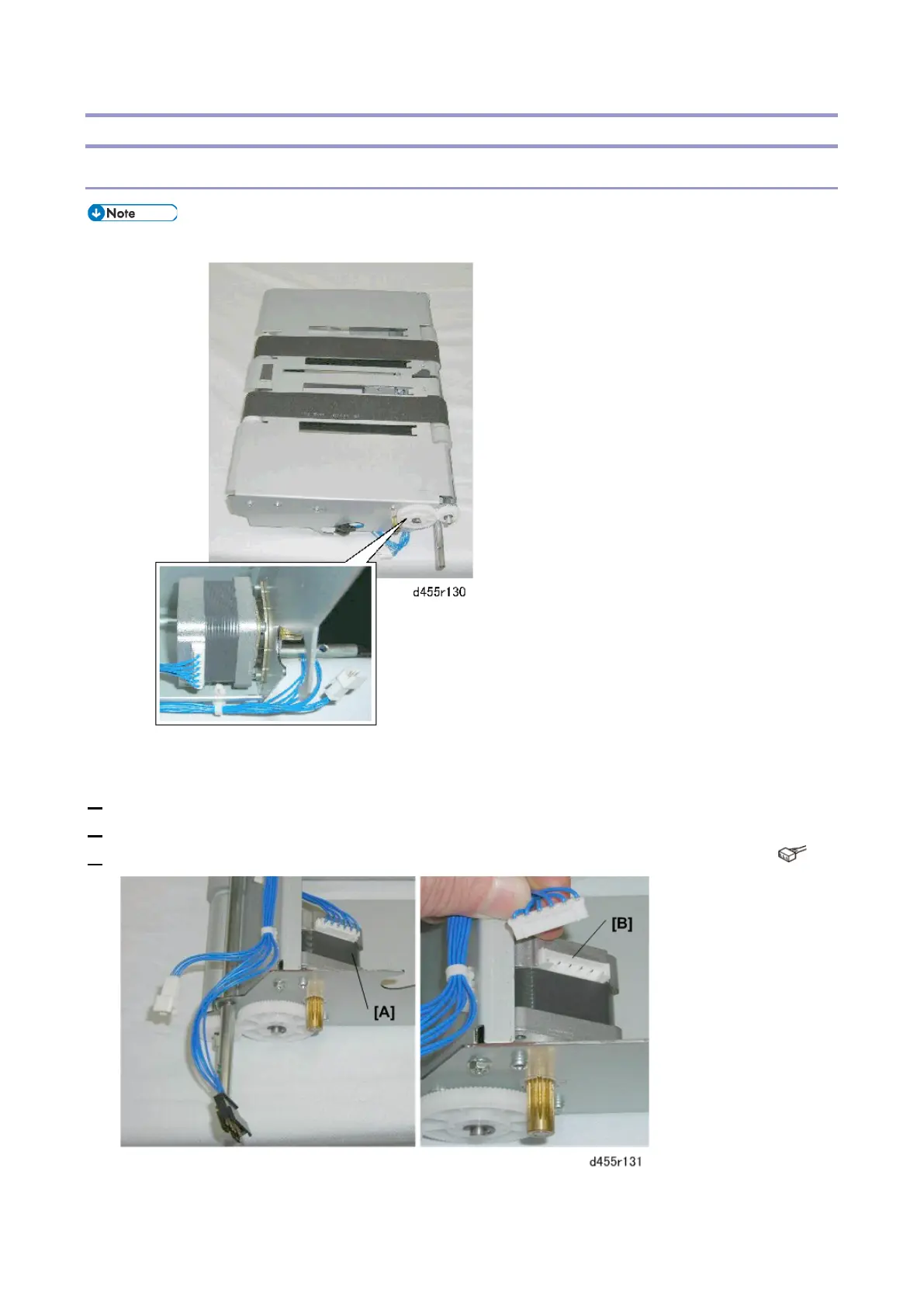

• The exit motor is under the left rear corner of the transport unit.
1. Remove the trim positioning unit. (Trim Positioning Unit)
2. Remove the transport unit. (Transport Unit)
3. Turn the transport unit over so that you can see the motor [A]. Disconnect the harness [B]. ( x1)
