2.Replacement and Adjustment
29

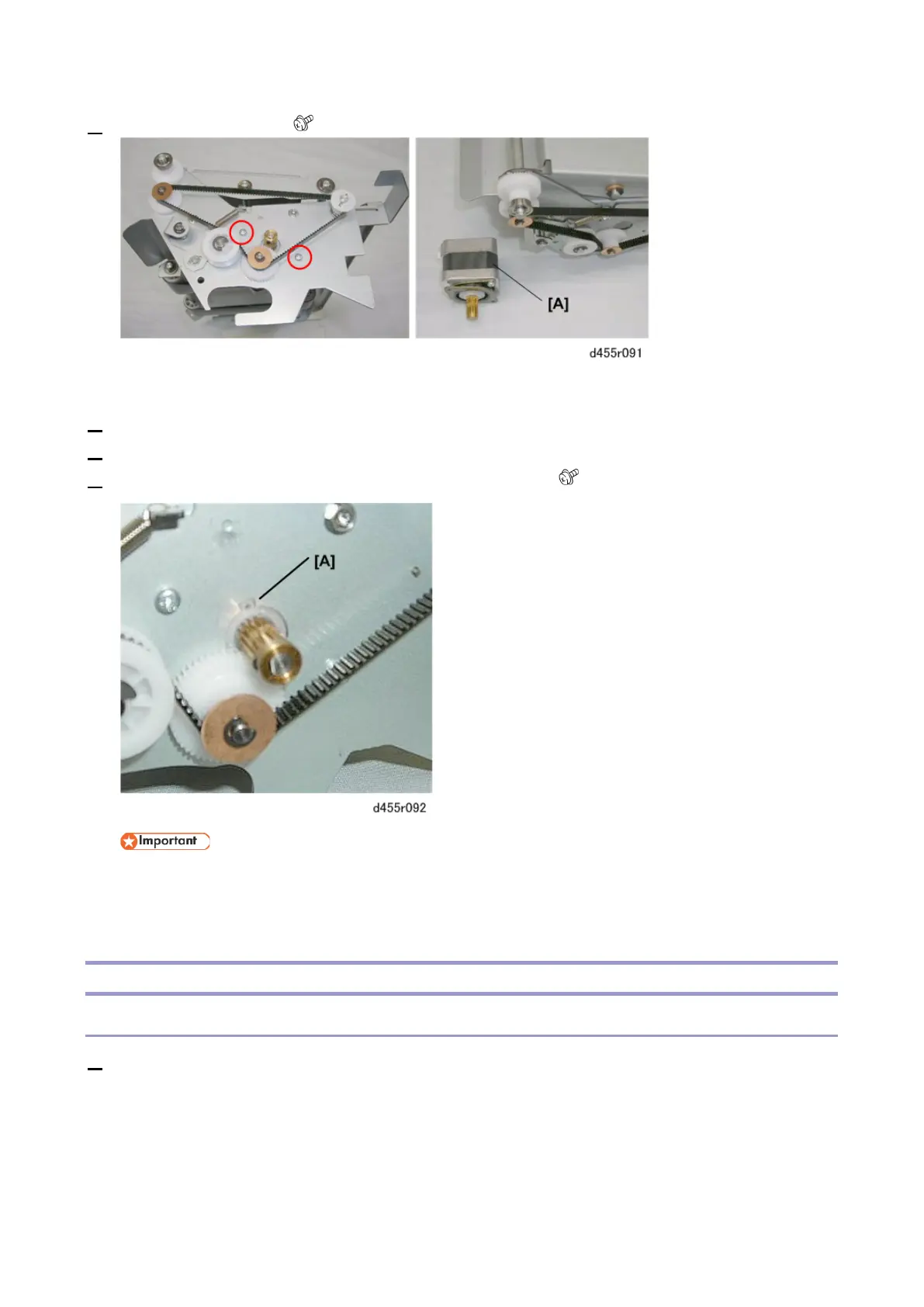

3. Remove the motor [A]. ( x2)
Re-installation
1.
Position the motor behind the frame.
2. Align the notch on the motor with the tooth [A].
3. Press the motor against the frame and re-fasten the screws ( x2).
• The tooth must be fitted properly in the notch, so that the motor mount is flat against the
back of the frame. Otherwise the motor will not be straight and the gears will not mesh
properly.
Trim Positioning Unit
Cut Position Motor
1. Remove the trim positioning unit. (Trim Positioning Unit)
