Ricoh TR5050 - Page 34

2.Replacement and Adjustment
30

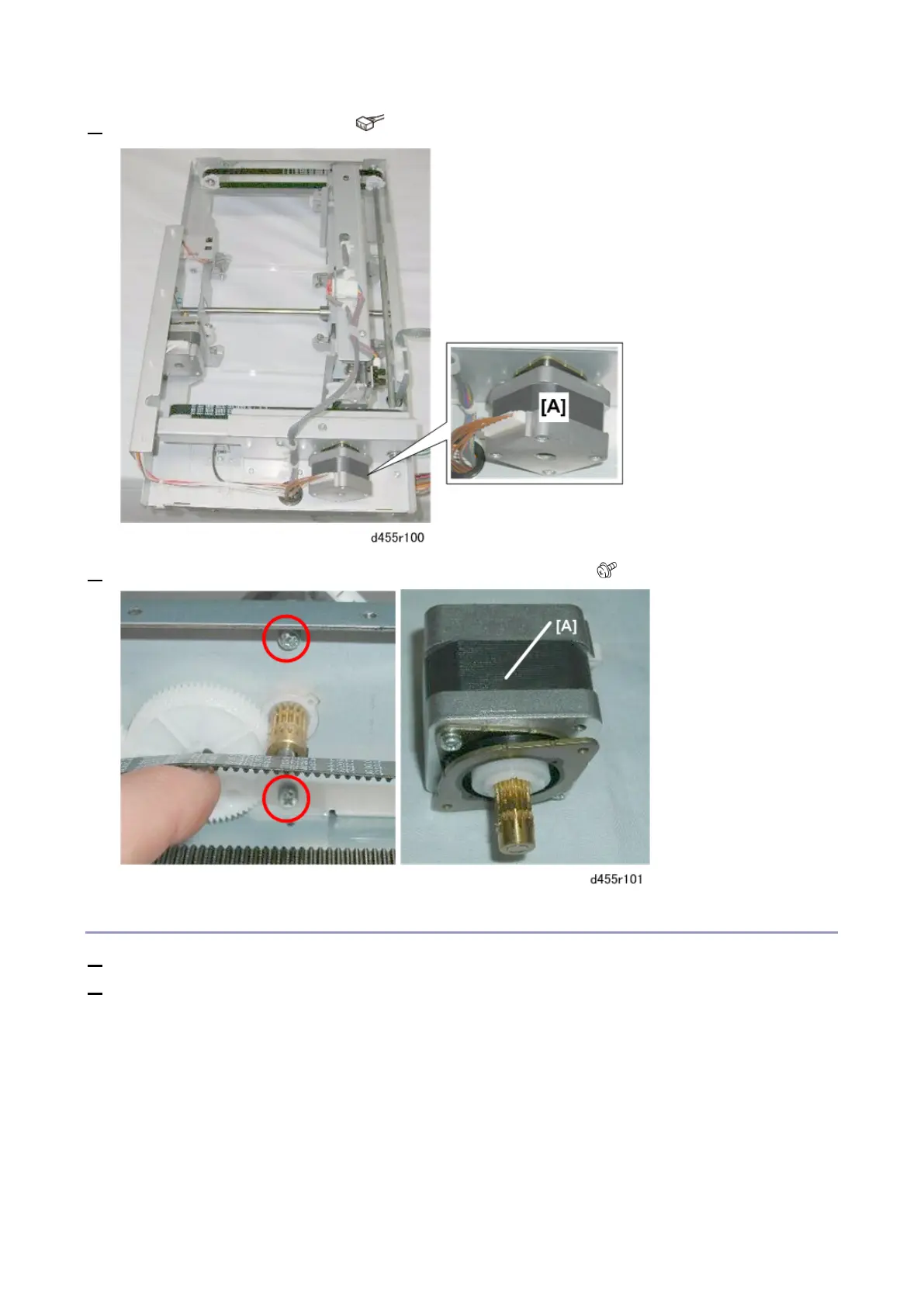

2. Remove the motor harness [A]. ( x1)
3. Remove the screws on the other side, then remove the motor [A] ( x2).
Press Stopper Motor
1. Remove the trim positioning unit. (Trim Positioning Unit)
2. Turn over the trim positioning unit so that you can see the press stopper motor, which is under the
