2.Replacement and Adjustment
32

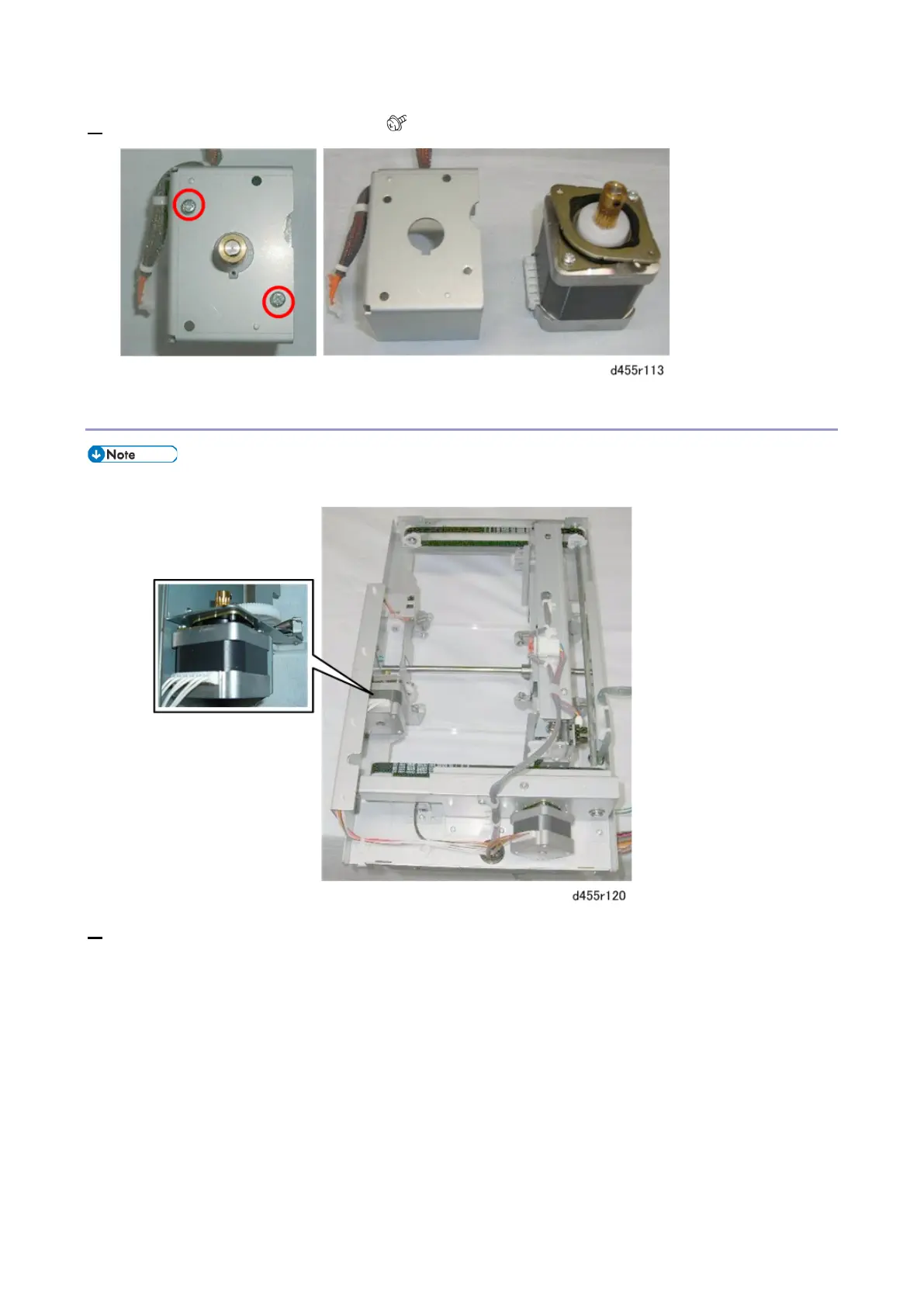

5. Remove the motor from the bracket ( x2).
Press Roller Motor
• The press roller motor is visible from the top of the trim positioning unit, near the center.
1. Remove the trim positioning unit. (Trim Positioning Unit)
