2.Replacement and Adjustment
43
3. Disconnect the sensor ( x1, x5).
Press Roller HP Sensor

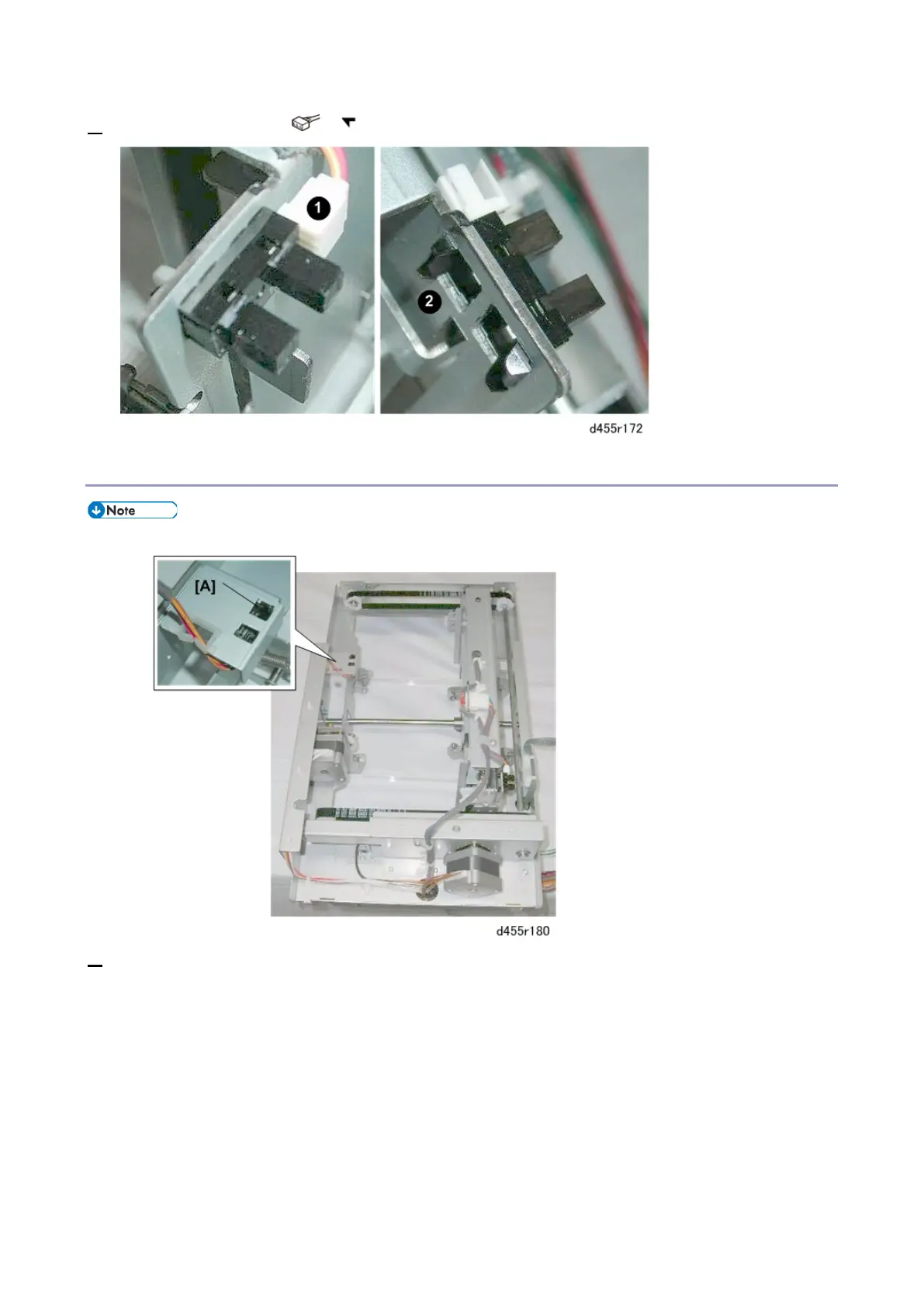

• The press roller HP sensor [A] is at the side, facing down.
1. Remove the trim positioning unit. (Trim Positioning Unit)
