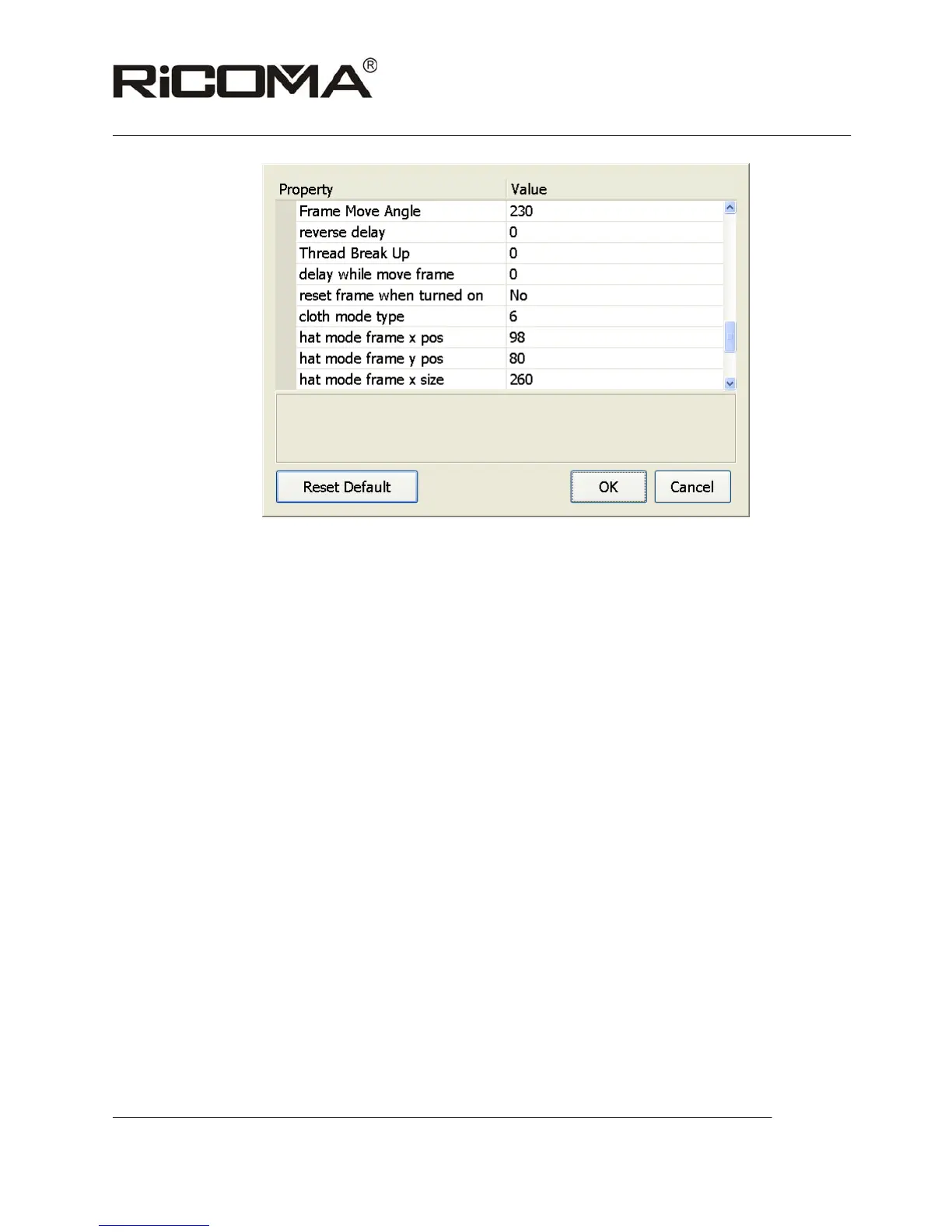

Thread break up: It means if to lift the undercarriage when there is thread
breakup, with default value 0 and setting range 0/1;
Delay while move frame: It means the compensation time for frame moving,
with positive compensation for thin material and
negative for thick one, which can be adjusted according
to actual embroidery effect, with default value 0;
Reset frame when turned on: It means the frame will automatically seek for
absolute original point when turned on, with default
status No.
Cloth mode type: Select proper frame type for the mechanical safety, with default
value 6;
Hat mode frame x pos: With default value 98;
Hat mode frame y pos: With default value 80;
Hat mode frame x size: With default value 260;
Hat mode frame y size: With default value 80;
