Note: pay attention to operational safety, keep hands way from the cutter
and needle rod;

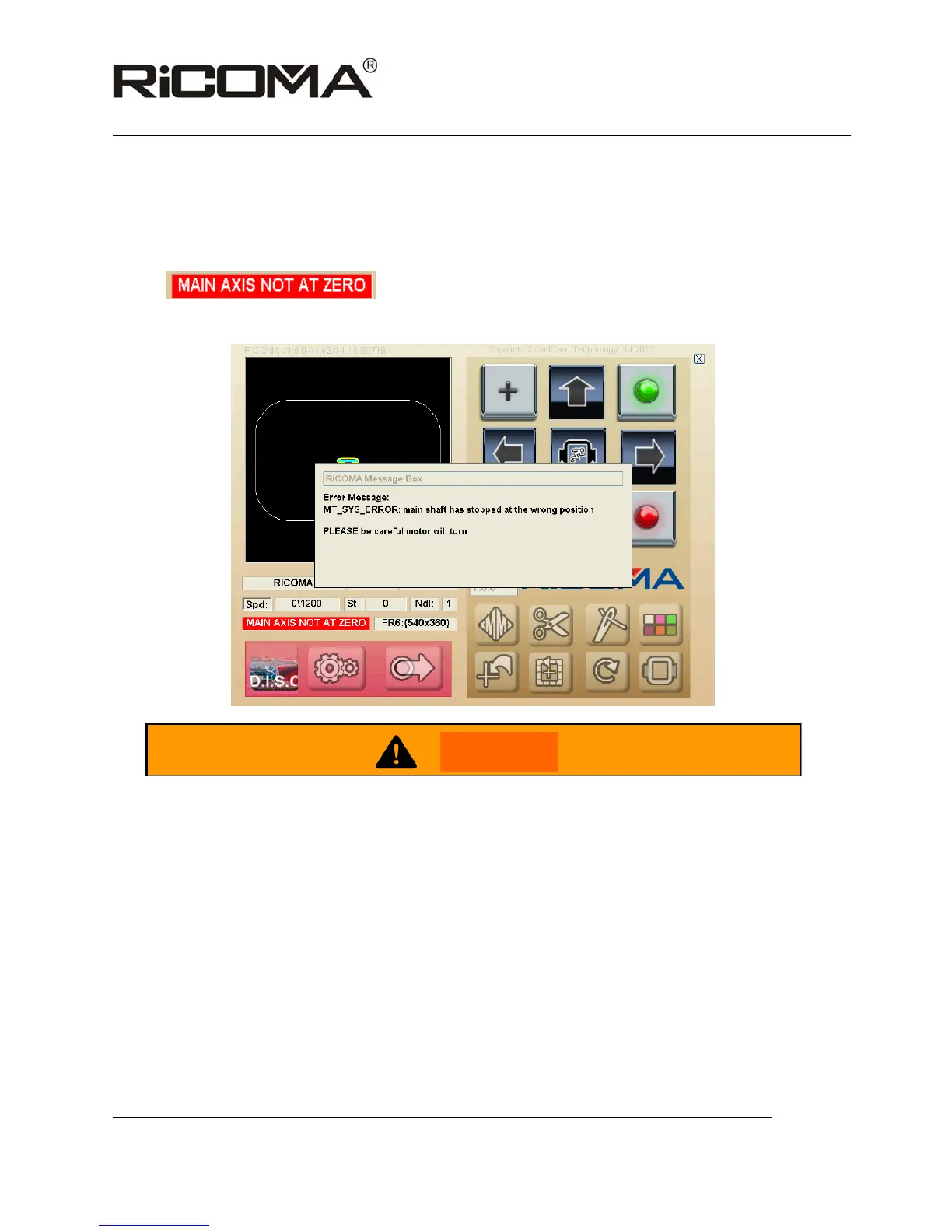

6. Trouble shooting for principal axis not being at zero position:
Errors shown as follows means the principal axis is not at zero (i.e. 100 degree)
, then click on directly the error prompt message, with
principal axis motor automatically working and turning to 100 degree.
Warning
Note: pay attention to operational safety, keep hands way from the cutter
and needle rod;
7. Prompt for pattern-out-of-frame:
After inputting pattern, if any error prompt message shown as follows occurs, it means
patter size exceeds the frame size and frame may be punched, therefore, switching to a
greater frame is the correction solution;
