26
Repair Parts
Parts List For RIDGID Oscillating Edge Belt/ Spindle Sander
Model EB44240
RIDGID parts are available on-line at www.ridgidparts.com

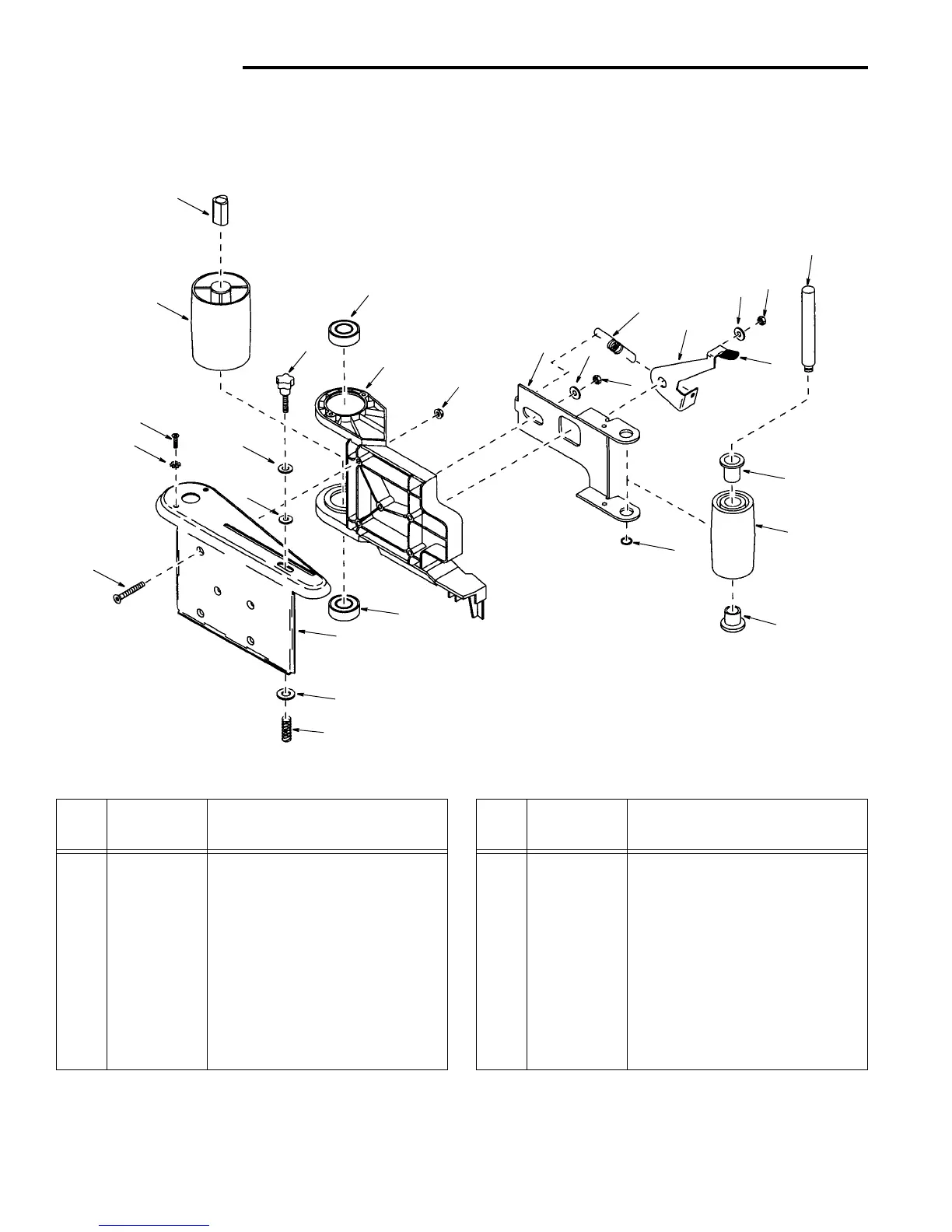

Figure 2
Always order by Part NumberNot by Key Number
* Standard Hardware Item - May be purchased locally
2
5
6
21
9
10
11
12
14
15
16
7
1
3
4
4
4
21
11
2
18
17
8
19
20
13
8
22
Key
No.
Part No.
Description
1
2
3
4
5
6
7
8
9
10
11
825539
825541
825526
37482
825528
825531
825529
805549-5
825532
826163-2
825838
Knob 10-32 x 1-1/4
Bearing Ball
Bed
Nut Lock
Guide
Spring Extension
Lever
* Washer 13/64 x 1/2 x 3/64
Shaft Idle
Cap Grip
Bushing
Key
No.
Part No. Description
12
13
14
15
16
17
18
19
20
21
22
825542
805642
826802
30521
821166-1
808380-5
820175
825547
509547
9416712
114603
Drum Idle
Ring Retaining 5160-50
Platen
Spring Swivel
Screw Flat Hd Hex 10/32 x 1-1/2
Screw Pan hd #8 x 3/4
Washer Rubber
Drum Drive
Coupling
* Washer 3/16 x 5/8 x 1/16
* Lockwasher Ext. #10
