12.1 Replacing Filter Element
The filter element can be replaced without any tools. Proceed as follows:
− Pull at the lower edge of the protective grille until it can be removed from the magnetic fixing
points.
− Disengage the protective grille at the top.
− Remove the filter element fixed in place by velcro fastener.
− The installation of a new filter element is performed in the reverse order of sequence.

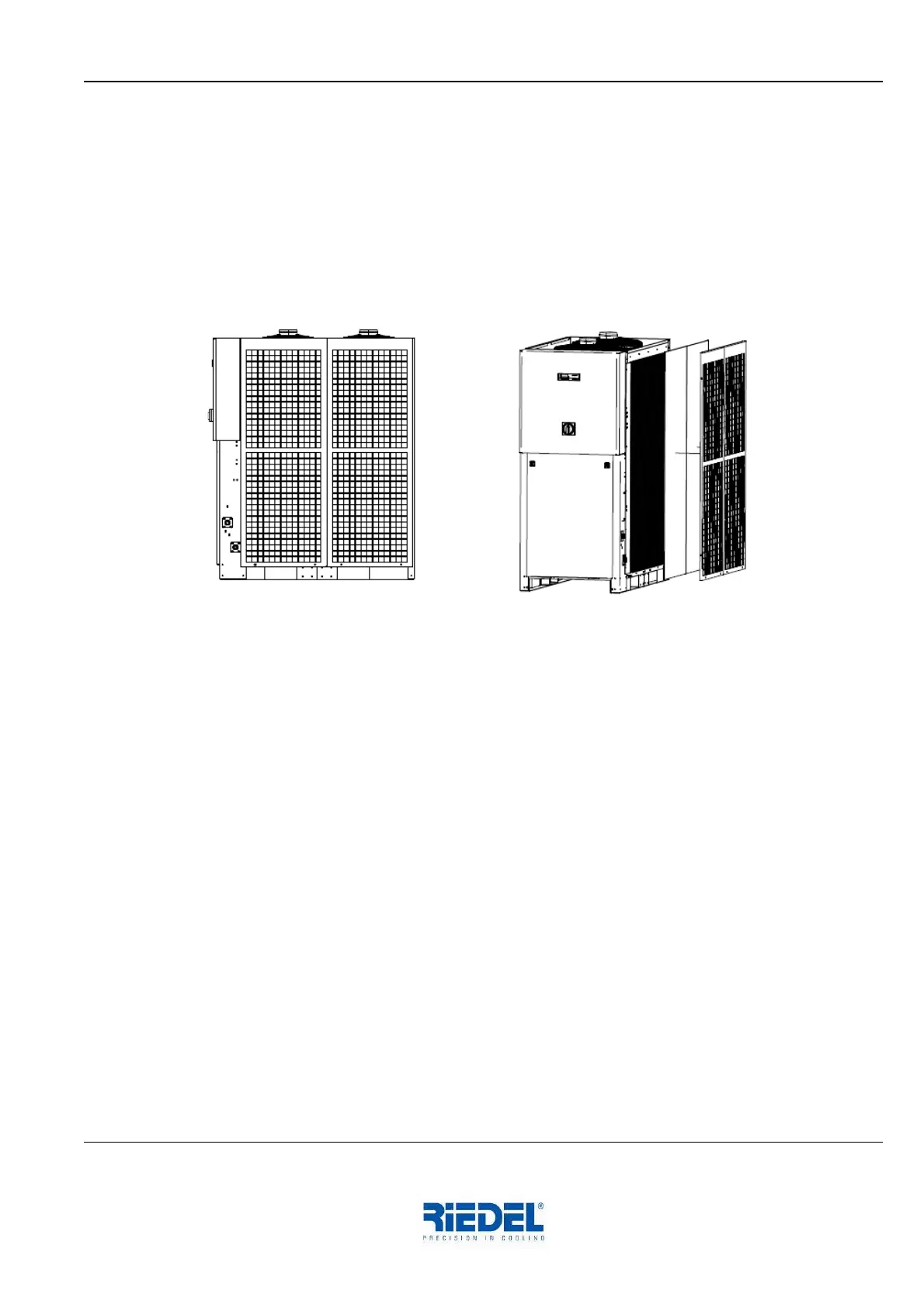

View of the chiller from the left as well as a detailed view with protective grille and filter element removed.
