Riello BS2F - Preliminary Checks; Operating Position

20140262
16
GB
Installation

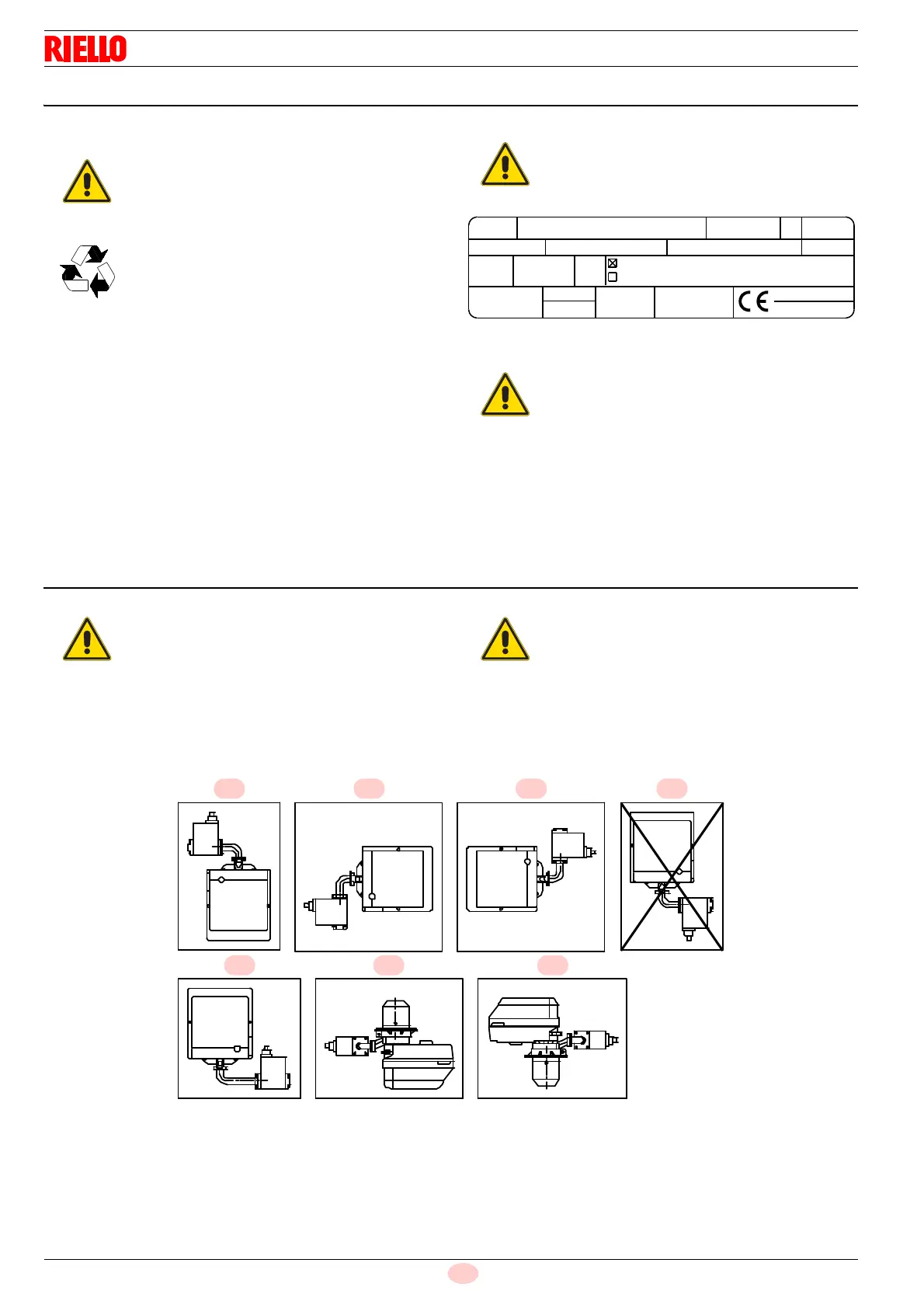

5.4 Preliminary checks
Control of the supply
Control of burner characteristics
Check the identification label of the burner (Fig. 8), showing:
A the burner model
B the burner type
C the cryptographic year of manufacture
D the serial number
E the data for electrical supply and the protection level
F the electrical power consumption
G the data of the burner possible minimum and maximum out-
put (see Firing rate)
Attention. The burner output must be within the boiler's fir-
ing rate.
5.5 Operating position
CAUTION
After removing all the packaging, check the integ-
rity of the contents.
In the event of doubt, do not use the burner; con-
tact the supplier.
The packaging elements (cardboard box, clips,
plastic bags, etc.) must not be abandoned as they
are potential sources of danger and pollution; they
should be collected and disposed of in the appro-
priate places.
ATTENTION
The figure of the label (Fig. 8) is indicative.
Some of the data may be arranged in a different
position.
ATTENTION
A burner label that has been tampered with, re-
moved or is missing, along with anything else that
prevents the definite identification of the burner
makes any installation or maintenance work diffi-
cult.
R.B.L.
TIPO TYP
TYPE
II2ELL 3B/P DE
II2H3B/P
AT,CH,IS
II2H3 GB,IE,IT
N2L3B/P LU
GAS
GAZ
FAM.2
FAM.3
I2E(P)B.I3 BE
II2L3B/P NL
II2Er3P FR
Icc A
Imax A
PESO kg
RIELLO S.p.A.
I-37048 Legnago (VR)
A
B
F
B
G
D
E
C
Fig. 8
20098188
ATTENTION
 The burner is set up to operate only in posi-
tions 1, 2, 3, 5, 6 and 7 (Fig. 9).
 Installation 1 is preferable, as it is the only
one that allows the maintenance operations
as described in this manual.
 The installation layout illustrated in position 5
is only possible using the “MULTI-BLOC rota-
tion kit”, to be ordered separately.
DANGER
 Any other position could compromise the cor-
rect operation of the appliance.
 Installation 4 is forbidden for safety reasons.
Fig. 9
D4450
2 3 4
5
1
6 7
