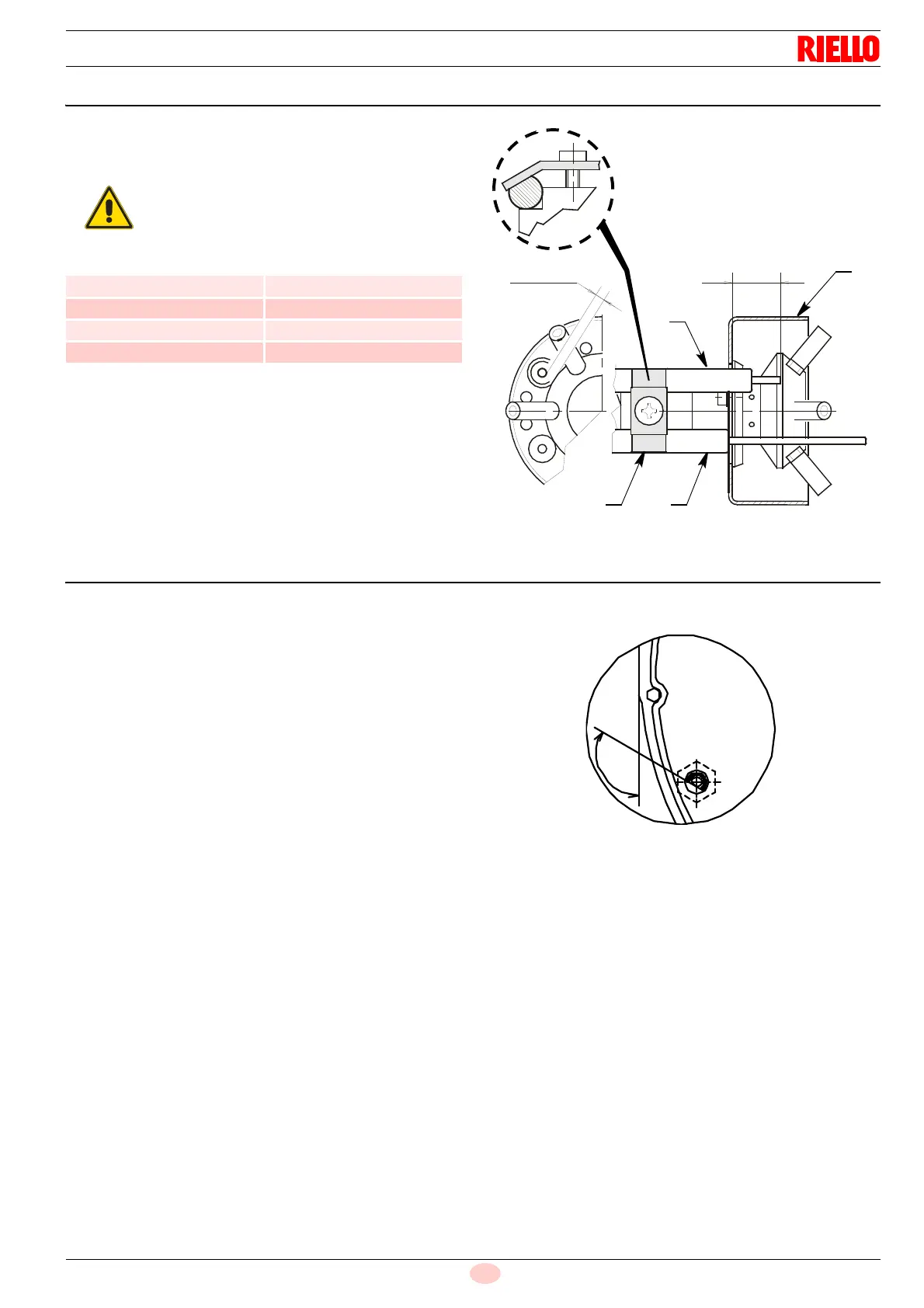

5.8 Positioning the probe - electrode
 Make sure that the plate 3)(Fig. 15) is always inserted in the
flattening of the electrode 1)(Fig. 15).
 Rest the probe insulator 4) against the air diffuser 2)(Fig. 15).
Tab. J
5.9 Positioning of the pressure test point (model BS1F only)
If the pressure test point 8)(Fig. 6 on page 13) on the intake
opening gets loose accidentally, we recommend to fix it correctly
as described in Fig. 16.
ATTENTION
Respect the positions shown in Tab. J.
Model A (mm)
BS1F 17
BS2F 30
BS3F 31
BS4F 31
Fig. 15
D6088
3.5 ± 0.3
A
±0.3
2
3 4
1
Fig. 16
D4497
View from inside the intake opening
1
2
