Riello MULTI SENTRY MST 60 - Separate Bypass Input ( Optional for Mst 60-80-100)

SEPARATE BYPASS INPUT (OPTIONAL FOR MST 60-80-100)
THE "DUALINPUT" UPS SERIES VERSION PRESENTS THE BYPASS LINE SEPARATE FROM THE INPUT LINE.
The UPS series with Separate Bypass allows a separate connection between the input line and the bypass line.
The UPS output will be synchronized to the bypass line in such a way that there will not be any incorrect switching between push-
pull voltages in the event of automatic bypass intervention or manual bypass (SWMB) closing.
THE MST 125 CAN BE CONFIGURED EITHER AS DUAL INPUT OR WITH BYPASS CONNECTED TO THE INPUT LINE.
See the following images for how to hook it up in either case

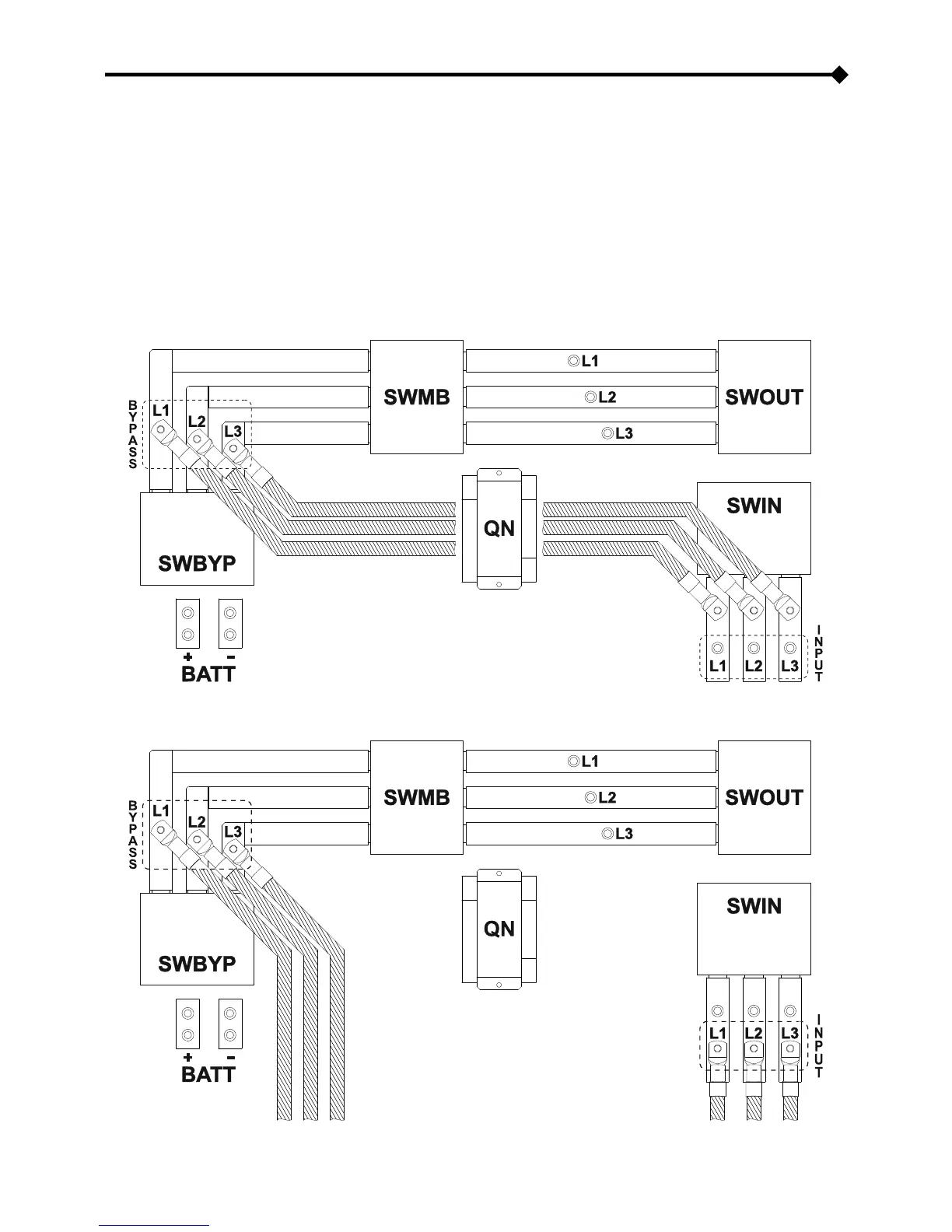

MST 125 - BYPASS CONNECTED TO INPUT LINE
MST 125 – DUAL INPUT
