Riello MULTI SENTRY MST 80 - GRAPHIC DISPLAY

GRAPHIC DISPLAY

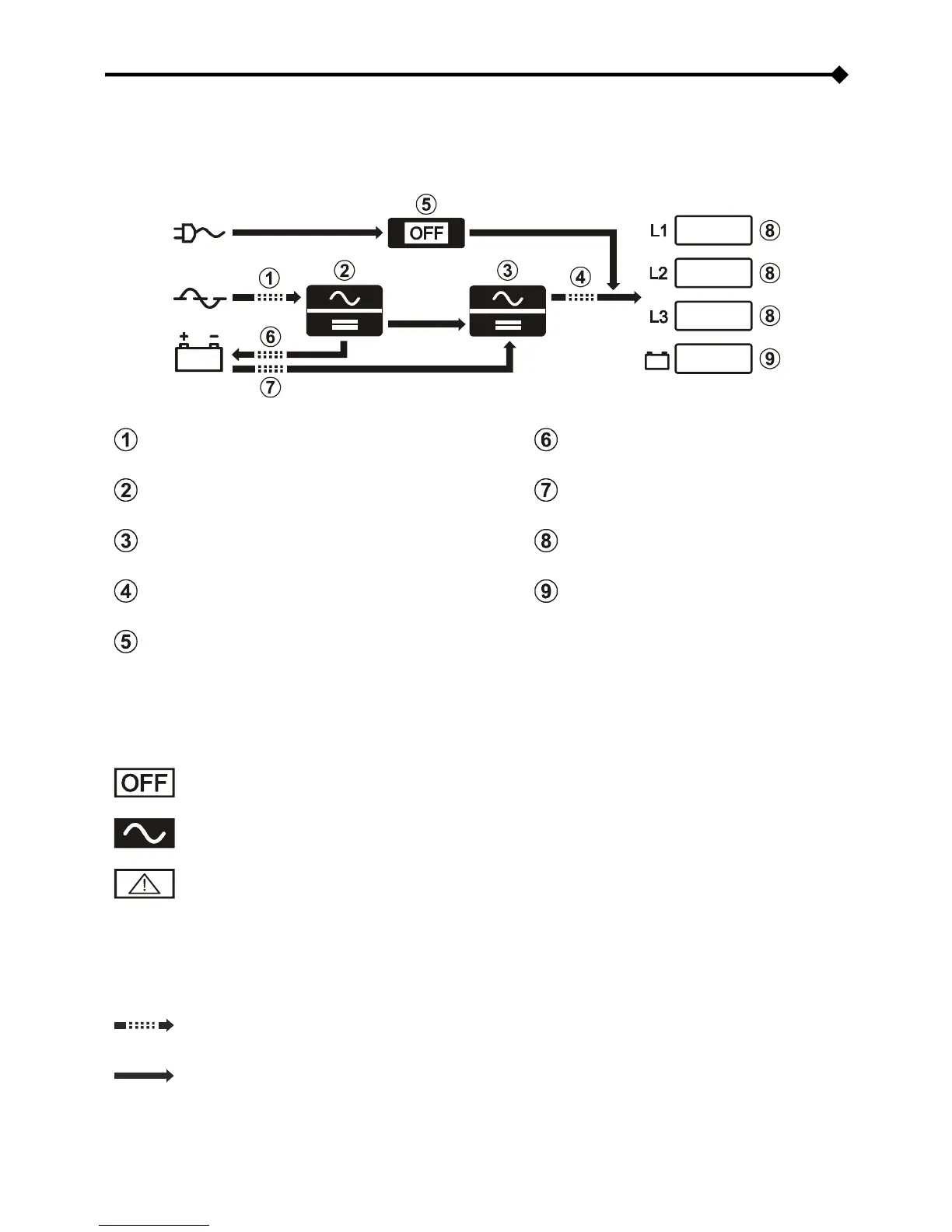

At the centre of the control panel is a wide graphic display for a constant detailed, real-time overview of UPS status. The first page
is a schematic view of UPS operating status:
Input Line
Battery Charger Line
PFC Converter
Battery Line
Inverter
% Load
Inverter Output Line
% Battery Charge
Automatic Static Bypass
The diagram shows the status of the three power logical modules (PFC Converter, Inverter, Automatic Static Bypass).
Each module can take on one of the following status types:
Module Off
Module on in normal operating mode
Module alarm or block
The following symbols show the power flow to and from the batteries (uncharged/charged) and the status of input and inverter
contacts:
Module Off
Module on in normal operating mode
