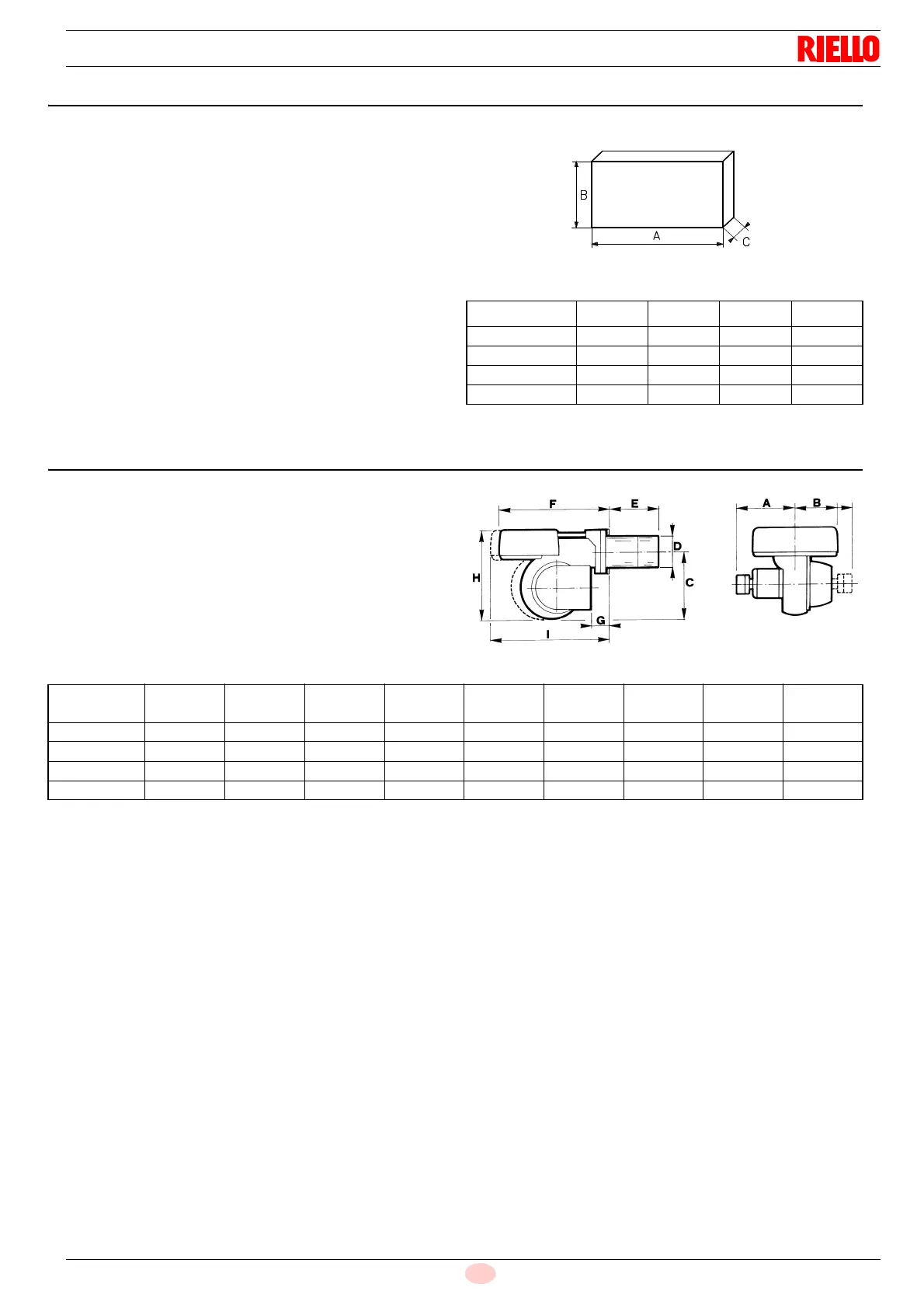

Riello PRESS 2G - Packaging - Weight; Overall Dimensions

9
20140894
GB
Technical description of the burner
4.4 Packaging - Weight
Approximate measurements.
• The burners are shipped in cardboard boxes with the maxi-
mum dimensions shown in Tab. B.
• The weight of the burner complete with packaging is indicat-
ed in Tab. B.
Tab. B
4.5 Overall dimensions
Approximate measurements.
The maximum dimensions of the burner are given in (Fig. 2).
Bear in mind that inspection of the combustion head requires the
burner to be opened and the rear part withdrawn on the slide
bars.
The maximum dimension of the burner when open is give by
measurement I.
Tab. C
mm ABCkg
PRESS GW 800 535 500 37
PRESS 1G 800 535 500 44
PRESS 2G 800 535 500 44
PRESS 3G 1000 790 550 55
Fig. 1
D88
Fig. 2
D320
mmABCDEFGH I
PRESS GW 234 205 292 140 185 473 59 397 688
PRESS 1G 270 205 292 150 236 473 59 307 688
PRESS 2G 270 205 332 155 237 506 89 437 721
PRESS 3G 406 205 370 175 227 570 88 485 761
