Riello PRESS 2G - PRESS 1 G - 2 G - 3 G Electrical Connection of Burner (Three-Phase Model)

29
20140894
GB
Electrical system

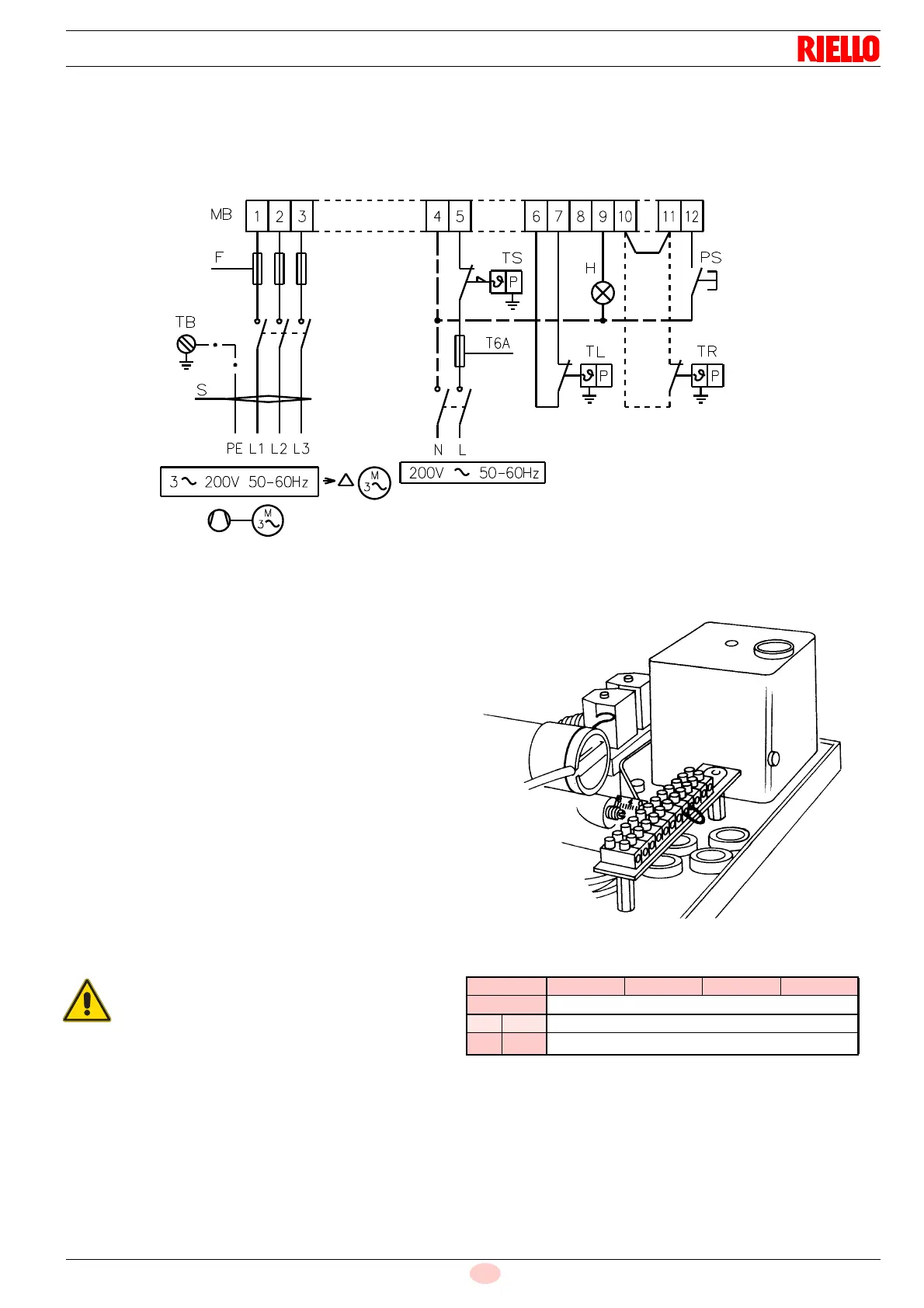

6.2.4 PRESS 1G - 2G - 3G electrical connection of burner (three-phase model)
(by installer)
Key (Fig. 25):
IN - Manual burner stop switch
MB- Burner terminal strip
PS- Lock-out reset button
S - Remote lock-out signal
TB- Burner ground (earth) connection
TL- Limit control device system:
This shuts down the burner when the boiler temperature or
pressure exceeds the setpoint value.
TR- High-low mode control device system:
This controls operating stages 1 and 2 and is necessary
only for two-stage operation.
TS- Safety control device system:
This operates when TL is faulty.
NOTE:
the burner is delivered preset for single-stage operation
with a jumper inserted in the terminal strip, see (Fig. 27). If
two-stage operation is required, remove the jumper be-
tween terminals 10-11 and insert the control device TR in its
place to command the 2nd gas oil solenoid valve
Fuse and cable sections: (cable section not indicated: 1,5 mm
2
)
Fig. 26
20141016
WARNING
– Do not invert the neutral with the phase wire in
the electricity supply line. Any inversion would
cause a lockout due to firing failure.
– Only use original spare parts to replace the
components.
PRESS GW 1G 2G 3G
V 200 200 200 230
F AT5T6T6T10
S
mm
2
1,5 1,5 1,5 1,5
Fig. 27
D346
