User’s Guide for DG2000 Series
2-22
To Edit the Arbitrary Waveform
The Generator allows users to edit Arbitrary Waveforms, which can create any new
waveform by initializing points. The operation steps are as follows:

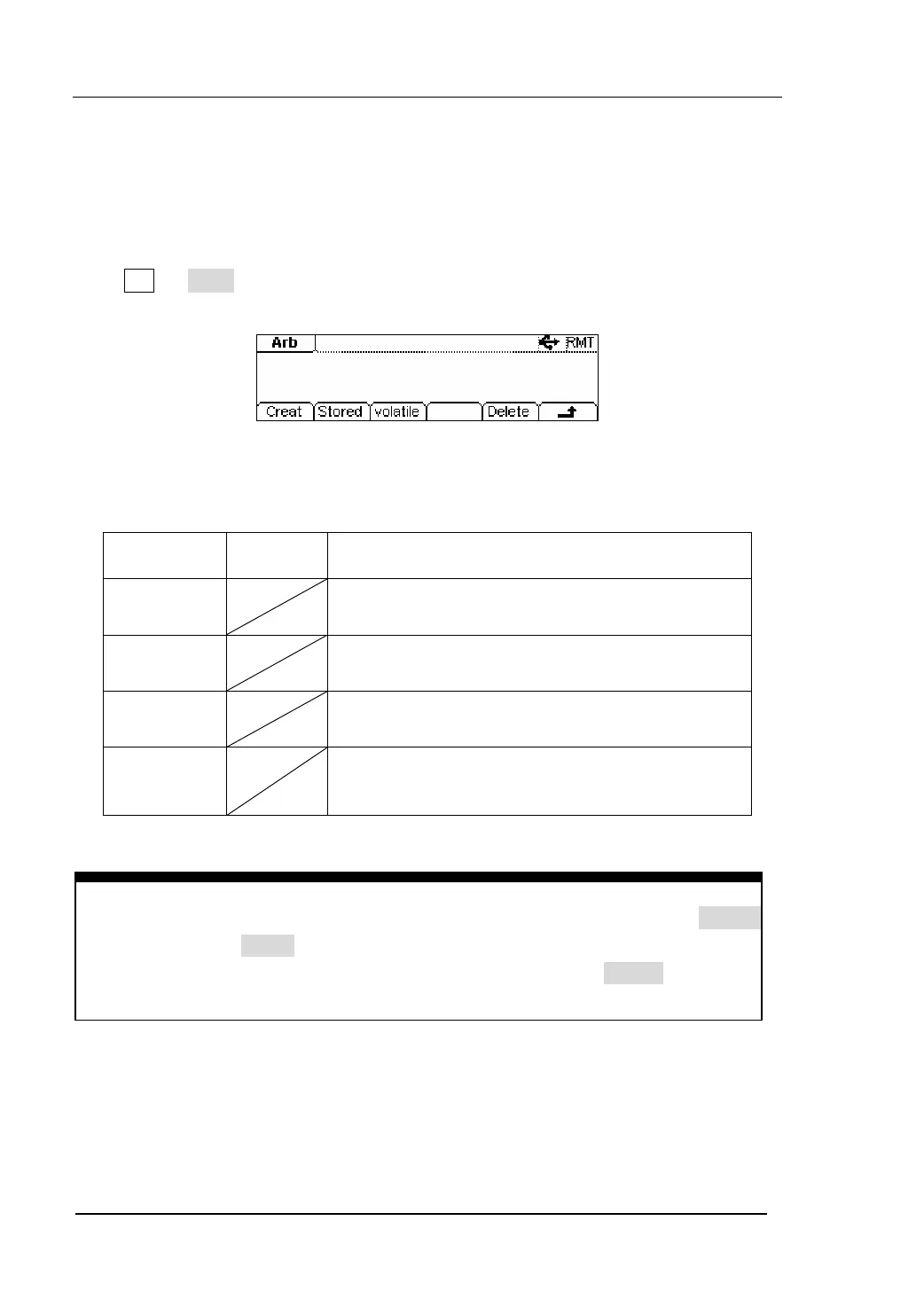

Press Arb Æ Edit , enter the interface shown below.
Figure 2-32 The Operation Menu
Table 2-11 The Menu Explanations of Waveform Edition
Instructions:
z When there is no waveform stored in the Non-Volatile Memory, the Stored
Menu and the Delete Menu will hide.
z When there is no waveform in the Volatile Memory, the Volatile menu will
hide.
Function
Menu
Settings Explanation
Creat
Create a new waveform, and erase the waveform
in the Volatile memory.
Stored
Edit the waveform stored in the non-Volatile
memory
Volatile Edit the waveform stored in the Volatile memory
Delete
Delete one of the Arbitrary Waveforms stored in
the Non-volatile memory. But The five Built-in
Waveforms can not be deleted.
