1. To Create a New Waveform
Press Arb Æ Edit Æ Creat , to set the overall parameters for the waveform.
The setting interface is shown in figure2-33 and the menu in table 2-12.

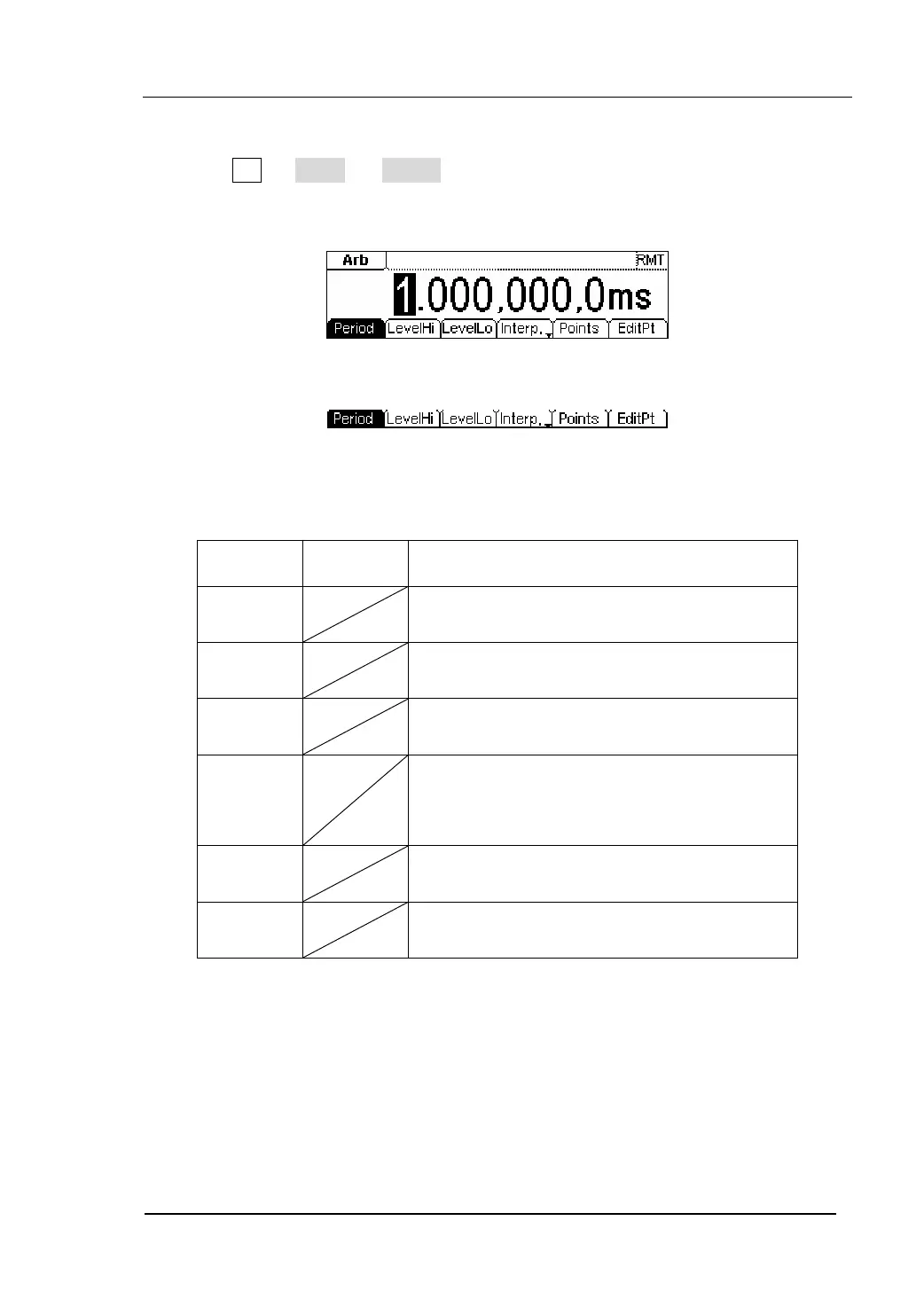

Figure 2-33 The Interface of setting the new waveform parameters
Figure 2-34 The Operation Menu
Table 2-12 The Explanations of Waveform Parameters
Function
Menu
Settings Explanation
Period Setting the Period for the Waveform
LevelHi Setting the Level High for the Waveform
LevelLo Setting the Level Low for the Waveform
Interp On/
Off
Activate the linear Interpolation between the
defined points
Deactivate the linear Interpolation between
the defined points
Points
Set the number of points when Initializing
the waveform
EditPt Start the Waveform Editor
