User’s Guide for DG2000 Series
2-24
To Set the Point Number
Press Points , set the number of the initializing points.
When a new waveform is created, the waveform editor will firstly create a waveform
with two points. The Waveform Editor connects the last point to the Voltage Level of
point #1 to create a continuous waveform automatically. A waveform with most 512K
points can be created.
In the default setting, the voltage of point #1 is High Level, the time is at 0 s, while the
voltage of point #2 is Low Level and the time is the half of the set Cycle period.
To Set the Interpolation
Press Interp , if you select Interp On , and the points will be connected with
beelines; otherwise, the voltages between the two consecutive points will not
change, and the waveform looks like a step-up one.
To Edit the Waveform Points
Press Arb Æ Edit Æ Creat Æ EditPt , the waveform can be defined by setting
the time and voltage for each point. The interface is given as follows:

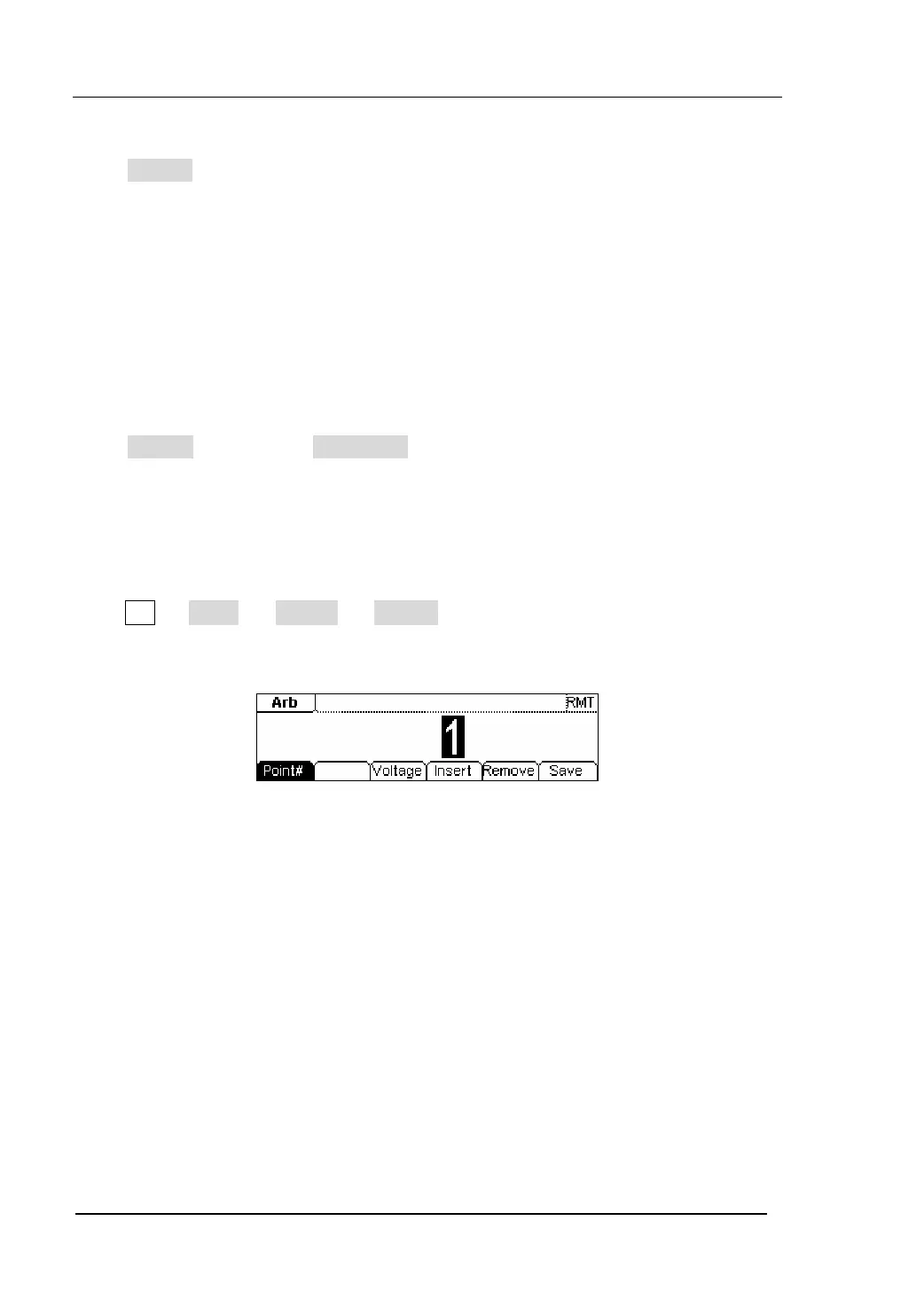

Figure 2-35 The Operation Menu
