Rigol DG2000 Series User Manual

RIGOL
© 2006 RIGOL Technologies, Inc
User’s Guide for DG2000 Series
2-37

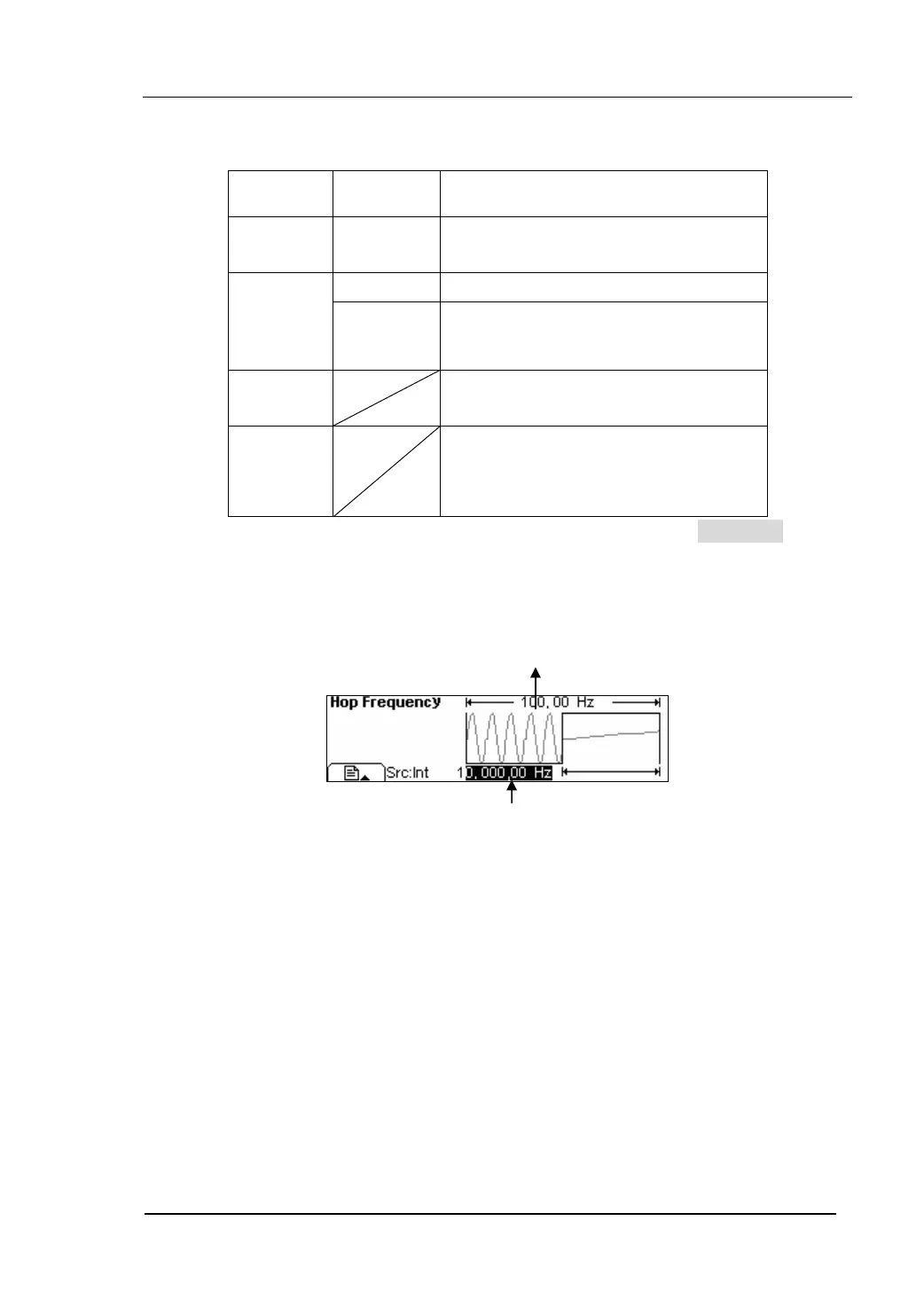

Table 2-18 The Menu Explanations of the FSK Parameters
Function
Menu
Settings
Explanation
Type FSK Frequency Shift Keying Modulation
Internal Choose the Internal source.
SrcInt
SrcExt
external
Use the rear [Ext Trig/FSk/Burst]
connector to choose the external
source.
HopFreq
Set the Hop Frequency Range:
1µHz~40MHz.
FSK Rate
Set the frequency at which the output
frequency shifts between the carrier
frequency and the Hop frequency
(OnlyInternal): 2mHz~100kHz.
Note: When choose the external modulation, the menu FSkRate
will hide.
In the Graph Mode, the waveform is shown in figure 2-48.
Figure 2-48 The Waveform Parameter in the Graph Mode
FSK Frequency
Hop Frequency
