User’s Guide for DG2000 Series

2-38

The modulated waveform consists of two parts: the Carrier Waveform and the

Modulating Waveform. In PM, the Phase of the Carrier Waveform varies with the

instantaneous voltage Level of the modulating waveform. The Parameters for the PM

are as shown in figure 2-49.

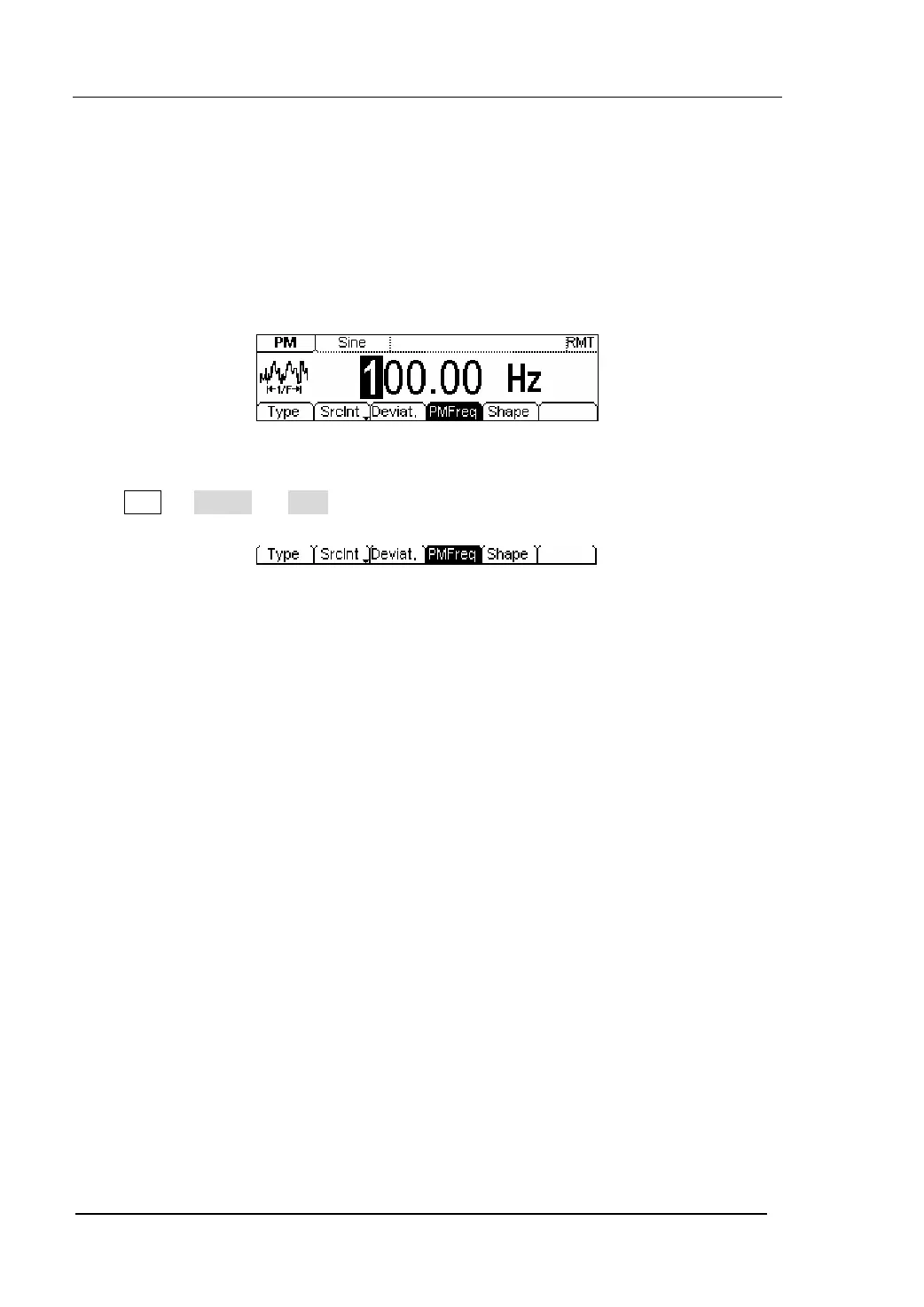

Figure 2-49 The Setting Interface of PM Waveform

Press Mod Æ Type Æ PM , enter the following interface.

Figure 2-50 The Operation Menu
