Sweep Frequency Setting
Use Start and Stop or Center and Span to set the range of the frequency.
Press the button again to switch to each other.
z To Sweep upward, set the Start Frequency lower than the Stop Frequency, or set a
positive frequency interval.
z To Sweep downward, set the Start Frequency higher than the Stop Frequency, or
set a negative frequency interval.
In the Graph Mode, the waveform is shown in figure 2-57.

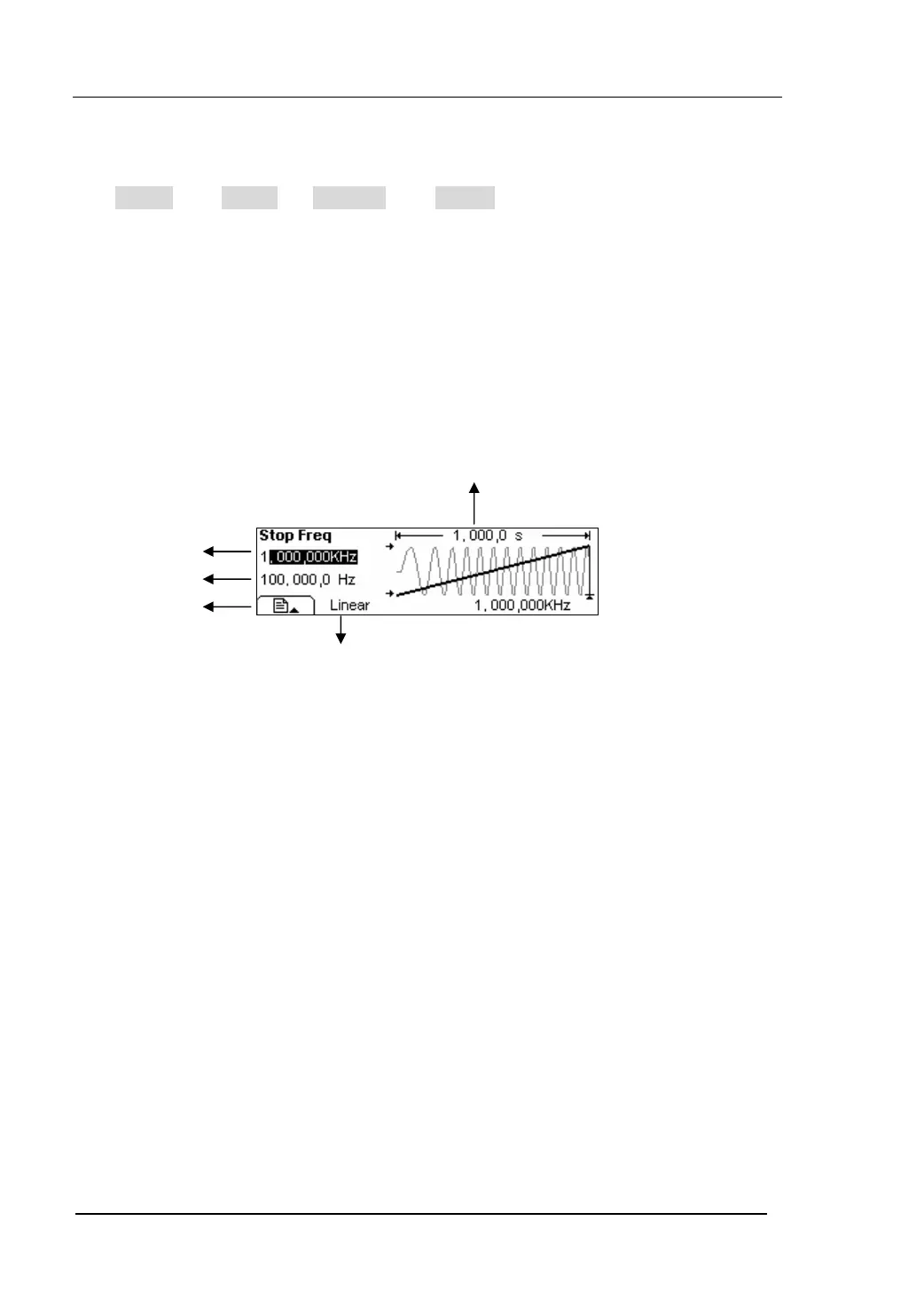

Figure 2-57 The Waveform Parameter in the Graph Mode
Start Frequency
Sweep Time
Stop Frequency
Sweep Type
