Rigol DHO1202 User Manual

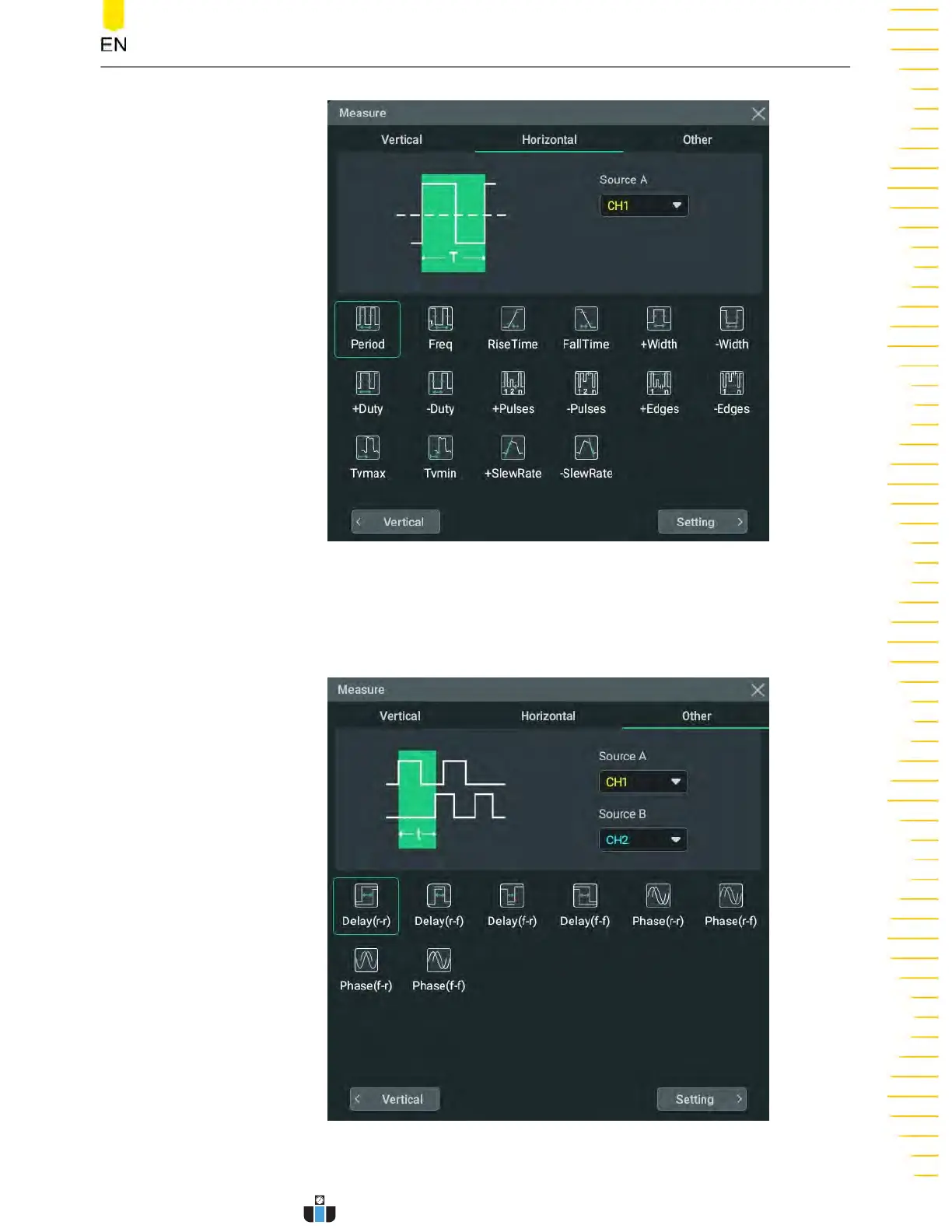

Figure 10.5 Horizontal Measurement Items
• Other: Delay (r-r), Delay (r-f), Delay (f-r), Delay (f-f), Phase (r-r), Phase (r-f),
Phase(f-r), and Phase (f-f).
Figure 10.6 Other Measurement Items
Measurements
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
DHO1000 User Guide
147
