Rigol DHO1202 User Manual

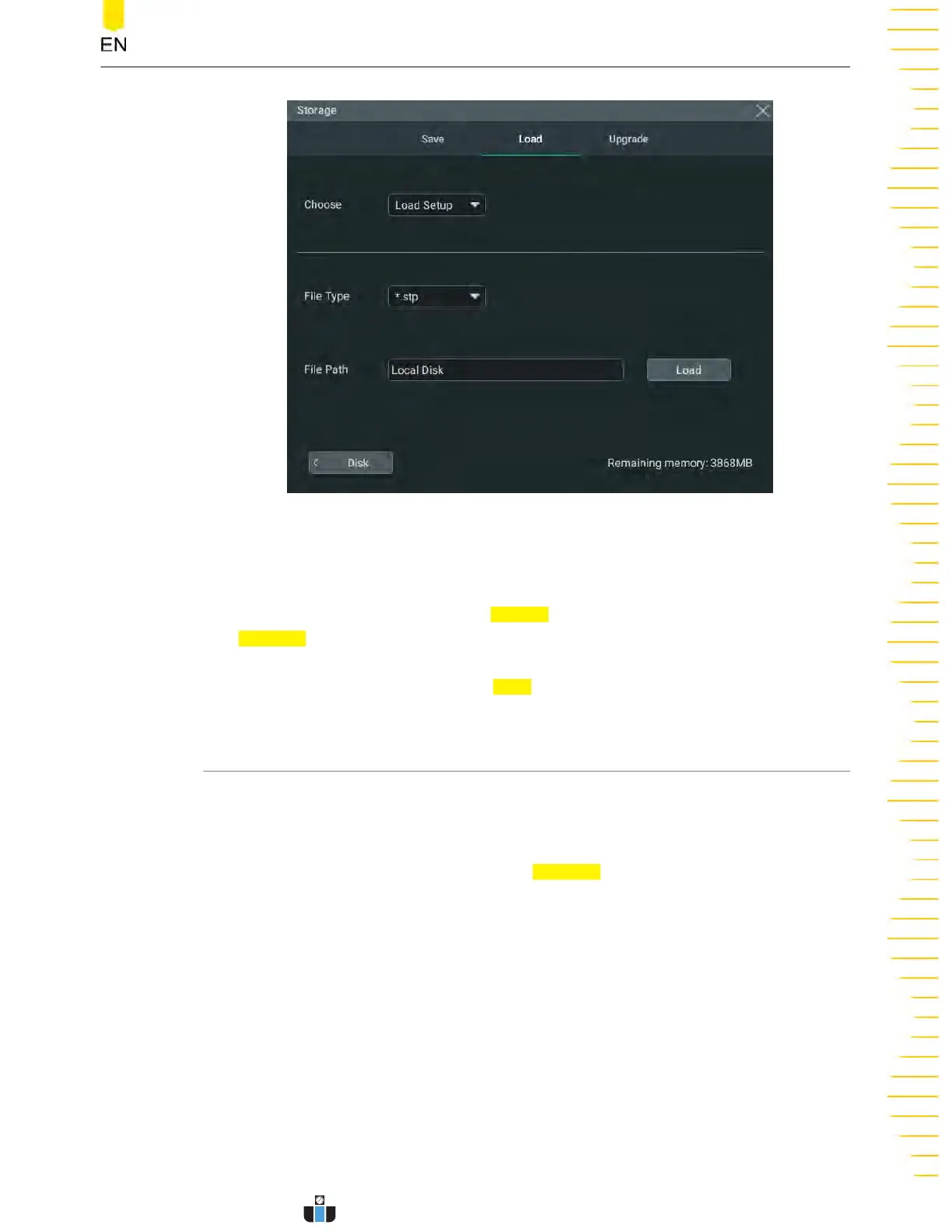

Figure 19.4 Load Setting Menu
Load Setup
Click or tap the dr
op-down button of
Choose to select "Load Setup". Then, click or
tap File Path to load the setups from the internal memory or the external USB disk.
The default file type is "*.stp", and no other options ar
e available. Select the file to be
loaded from the memory. Click or tap
Load to load the selected file.
19.4
Firmware Upgrade
This instrument supports local upgrade and online upgrade.
Local upgrade
1. In the storage setting menu, click or tap Upgrade to ent
er the local upgrade
setting menu.
Store and Load
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
DHO1000 User Guide
223
www.calcert.com sales@calcert.com1.888.610.7664
0
5
10
15
20
25
30

Rigol DHO1202 Specifications

General

Bandwidth	200 MHz
Channels	2
Vertical Resolution	12-bit
Vertical Sensitivity	1 mV/div to 10 V/div
FFT Points	1 Mpts
Operating Temperature	0°C to +50°C
Weight	2.5 kg
Input Impedance	1 MΩ ± 1%
Trigger Types	Edge, Pulse, Slope, Video, Pattern
Interface	USB Host, USB Device, LAN, HDMI
Memory Depth	50 Mpts
Display	10.1 inch LCD, capacitive touch screen
