- Cursor A is a vertical solid line ( is displayed at the bottom of the screen),
and Cursor B is a v
ertical dotted line (
is displayed at the bottom of the
screen).
- In the XY cursor mode, X cursor is used to measure the waveform
amplitude of Source X.
• Y Cursor
Y cursor is a horizontal solid/dotted line that is used to make vertical
adjustments. It can be used to measure amplitude (the unit is the same as that of
the source channel amplitude).
- Cursor A is a horizontal solid line ( is displayed at the right section of
the screen), and Cur
sor B is a horizontal dotted line (
is displayed at the
right section of the scr
een).
- In XY cursor mode, Y cursor is used to measure the waveform amplitude of
Source Y.
You can enable cursor measurements in the following ways.
• Click or tap the function navigation icon
> Cursors to enable cursor
measur
ements.
• Click or tap the
Cursors button on the t
oolbar to enable cursor measurements.
• Press the front-panel
key to enable cursor measurements.

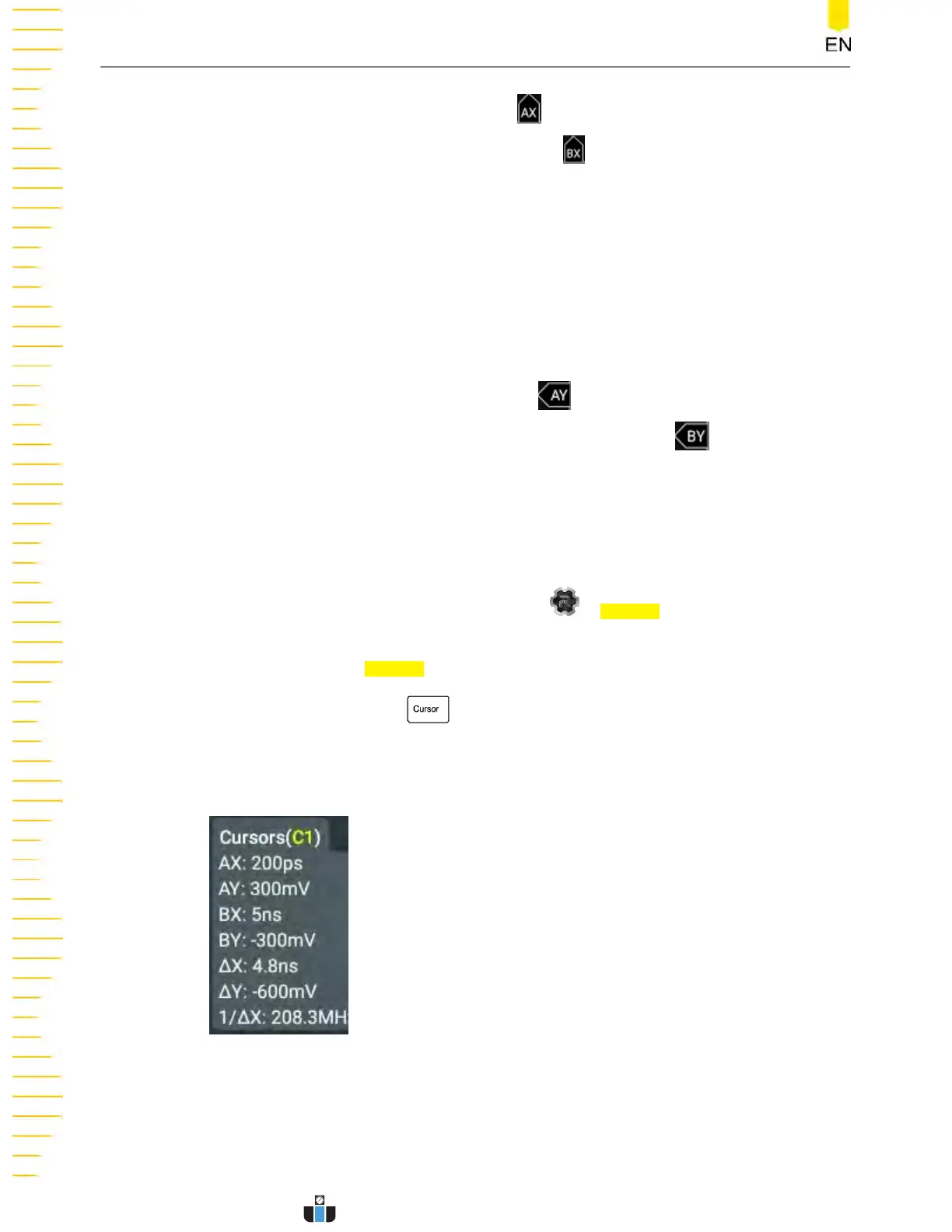

The measurement r
esults are displayed in the "Result" bar at the right side of the
screen.
• AX: indicates the X v
alue at Cursor A.
• AY: indicates the Y value at Cursor A.
• BX: indicates the X value at Cursor B.
Measurements
DHO1000 User Guide
152
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
