Rigol DHO804 Quick Guide

4.4 User Interface Overview
1
2
3
4 5
6
7
8
10
11
12
13
9

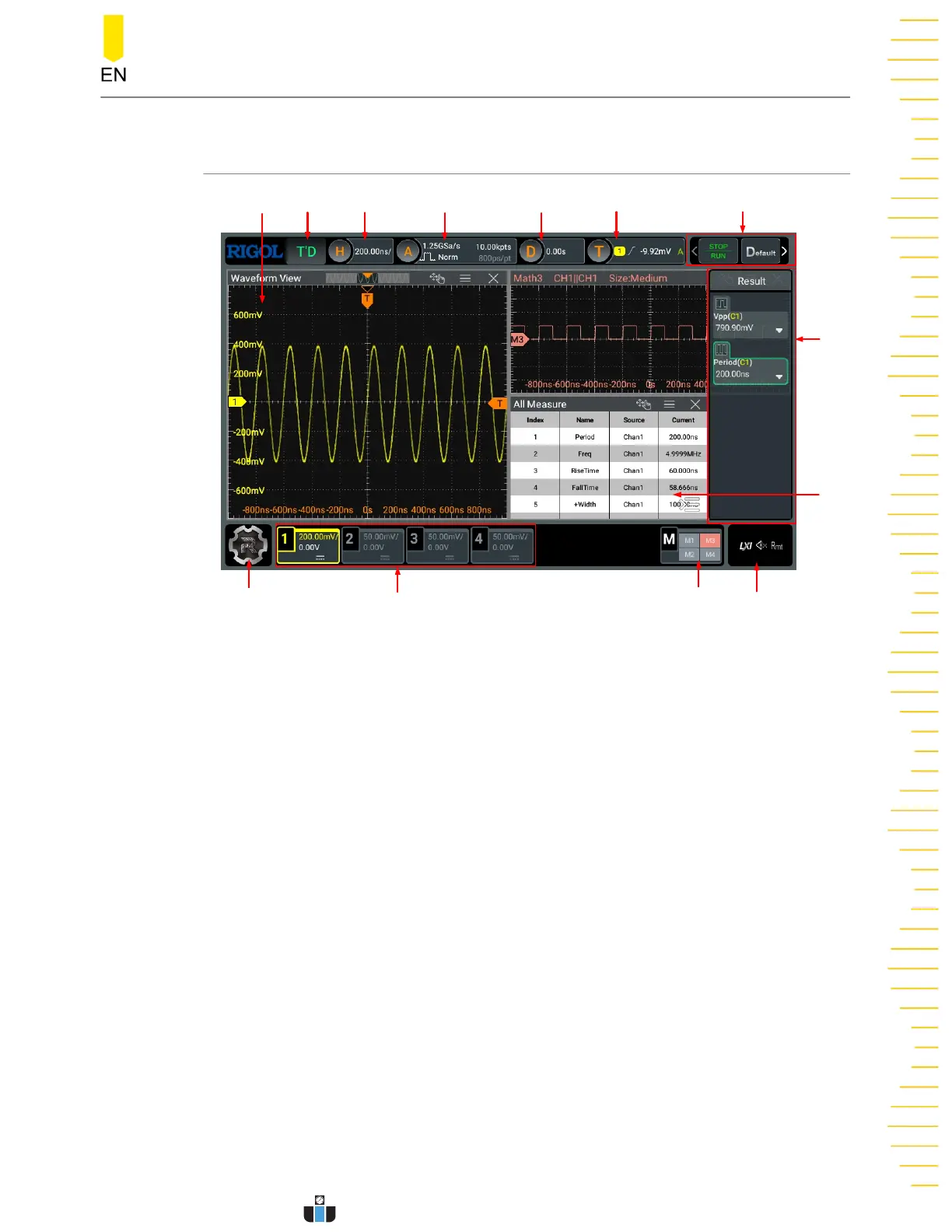

Figure 4.6 User Interface
1
Waveform View 8 Result Sidebar
2 Run State Label 9 Split-screen Display
3 Horizontal Timebase Label 10 Notification Area
4 Sample Rate & Memory Depth
Label
11 Math Labels
5 Horizontal Position Label 12 Channel Labels
6 Trigger Label 13 Function Navigation Icon
7 Function Toolbar
Product Overview
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
13
www.calcert.com sales@calcert.com1.888.610.7664
0
5
10
15
20
25
30

Rigol DHO804 Specifications

General

Bandwidth	70 MHz
Channels	4
Waveform Capture Rate	1, 000, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Vertical Resolution	12 bits
Interfaces	USB, LAN, HDMI
Input Impedance	1 MΩ ± 1%
Max Input Voltage	300 Vrms CAT I
Trigger Types	Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold, Nth Edge, Logic
Protocol Decoding	I2C, SPI, UART, CAN, LIN, FlexRay, I2S
USB Ports	USB Host, USB Device
LAN Port	1
