Rigol DHO804 Quick Guide

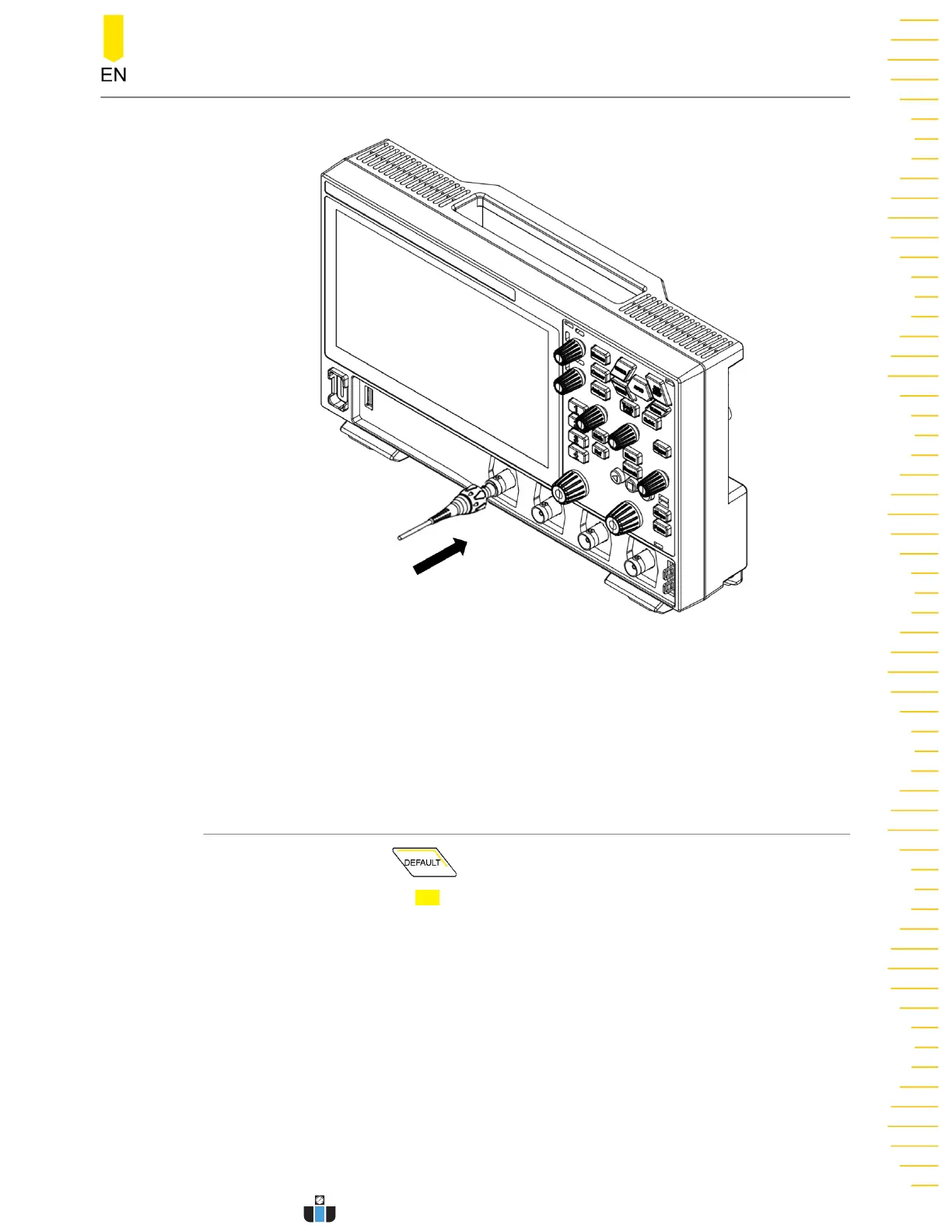

Figure 5.3 Connecting the Passive Probe
After you connect the passive probe, check the probe function and probe
compensation adjustment before making measurements. For details, please refer to
Function Inspection and Probe Compensation .
5.6 Function Inspection
1. Press the front-panel and a prompt message "Restore default settings?"
is displayed. Click or tap OK to restore the instrument to its factory default
settings.
2. Connect the ground alligator clip of the probe to the "Ground Terminal" as shown
in
Figure 5.4 .
3. Use the probe to connect the input terminal of CH1 and the "Compensation Signal
Output Terminal" of the probe, as shown in
Figure 5.4 .
To Prepare for Use
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
17
www.calcert.com sales@calcert.com1.888.610.7664
0
5
10
15
20
25
30

Rigol DHO804 Specifications

General

Bandwidth	70 MHz
Channels	4
Waveform Capture Rate	1, 000, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Vertical Resolution	12 bits
Interfaces	USB, LAN, HDMI
Input Impedance	1 MΩ ± 1%
Max Input Voltage	300 Vrms CAT I
Trigger Types	Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold, Nth Edge, Logic
Protocol Decoding	I2C, SPI, UART, CAN, LIN, FlexRay, I2S
USB Ports	USB Host, USB Device
LAN Port	1
