Rigol DM3068 User Guide

Chapter 3 Remote Control RIGOL
User’s Guide for DM3068
3-11
Remote Control via GPIB
1. Connect the Instrument
Connect the multimeter to PC using GPIB cable.
2. Configure GPIB Address
Select GPIB interface and configure its address according to “Interface
Configurations” in chapter 2.
3. Search RS232 Devices

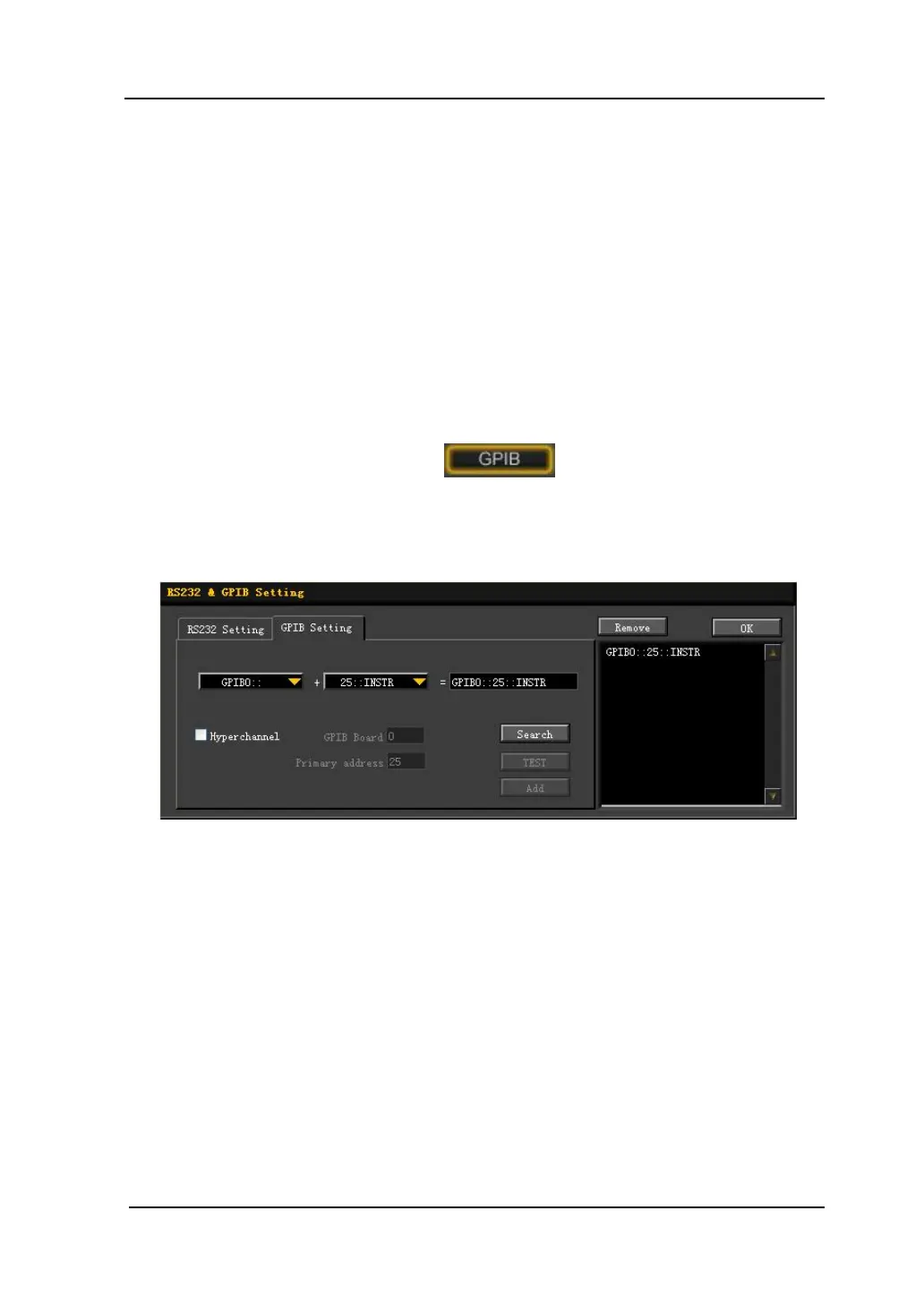

Turn on the Ultra Sigma and click
to enter the communication
setting interface as shown in the figure below. Click “Search” and the software
will search the GPIB instrument resources connected to the PC. The device
resources will be displayed on the right side of the panel.
If resources can not be found automatically:
 Select the GPIB card address of the PC from the comboBox of “GPIB::”
and select the GPIB address set in the instrument from the comboBox of
“::INSTR”.
 Click “Test” to check whether the GPIB communication works normally; if
not, please follow the corresponding prompt messages to solve the
problem.
4. View GPIB Device
Click “OK” and the software return to its main interface. The searched
instruments are shown under the “RIGOL Online Resource” directory, as

Rigol DM3068 Specifications

General

Display Digits	6.5
Power Supply	100-240 V AC, 50/60 Hz
Weight	3.7 kg
DC Voltage Range	200 mV to 1000 V
DC Voltage Accuracy	±(0.0035% of reading + 0.0005% of range)
AC Voltage Range	200 mV to 750 V
AC Voltage Accuracy	0.06%
DC Current Range	200 µA to 10 A
DC Current Accuracy	0.05%
AC Current Range	200 μA ~ 10 A
Resistance Range	200 Ω ~ 100 MΩ
Resistance Accuracy	0.01%
Capacitance Accuracy	1%
Frequency Accuracy	0.01%
Temperature Range	-200°C
Connectivity	USB, LAN, GPIB
