Programming Example RIGOL
Programming Guide for DS1000CA Series

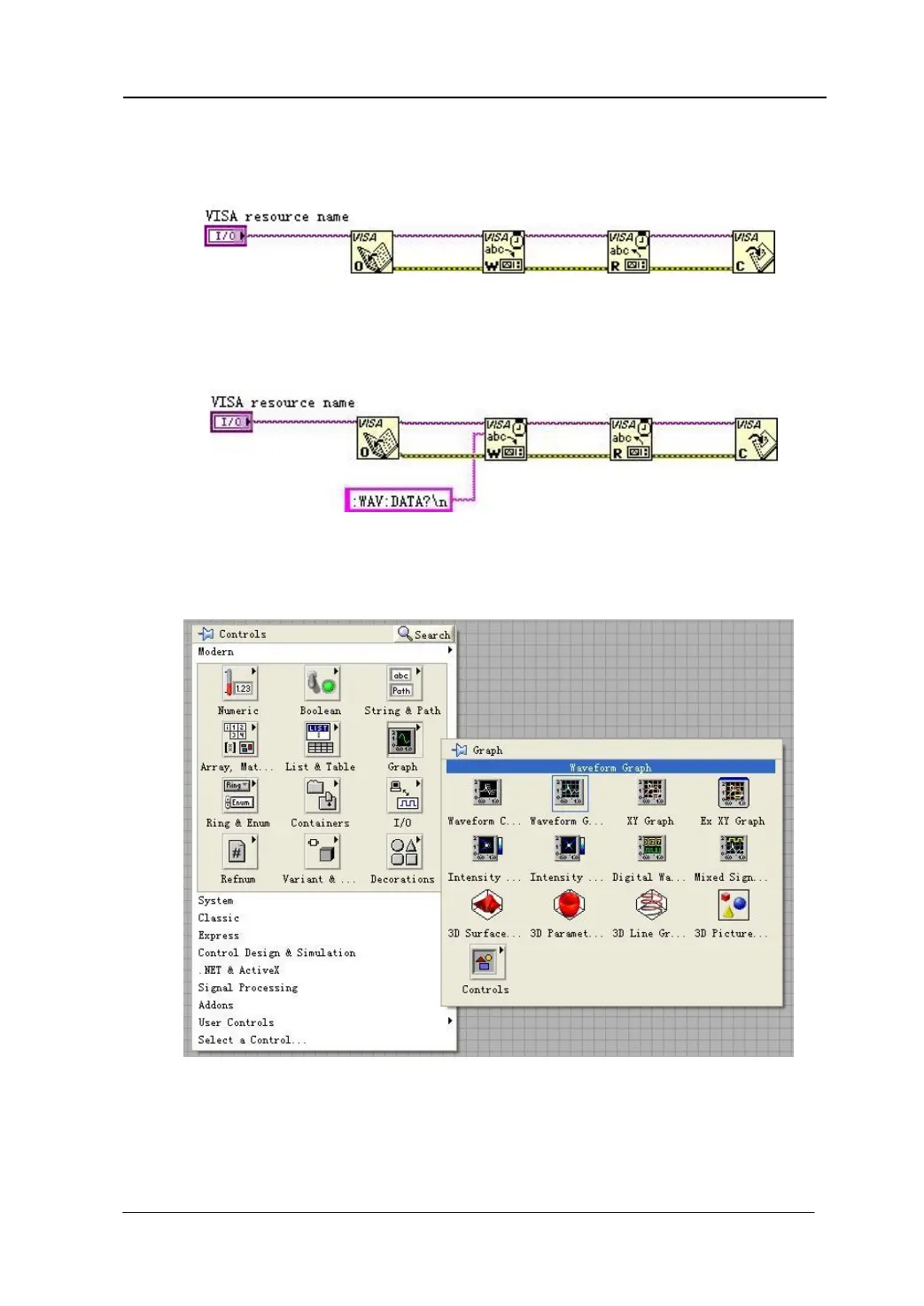

3. Separately connect “VISA resource name” with “VISA resource name out” and
“error out” with “error in” of all the functions. See the figure below.
4. Add a tectbox written with: “:WAV:DATA?\n” on “write buffer” of “VISA Write, so
as to read screen data.
5. Open the Front Panel; choose Modern→Graph→Waveform Graph to add a
Waveform Graph control. See the figure below.
6. Open LabVIEW Block Diagram; right-click and choose
“Programming”→“String”→ “String/Array/Path” and select “String To Byte
Array”; then, use this function to connect “read buffer” on “VISA Read” function
