To Connect to AC Power
The power requirements of the oscilloscope are 100-240 V, 45-440 Hz. Please
use the power cord provided in the accessories to connect the oscilloscope to
the AC power source, as shown in the figure below. After you turn on the power
switch, the oscilloscope is connected to power, and the Power key located at the
lower left corner of the front panel
is blinking.

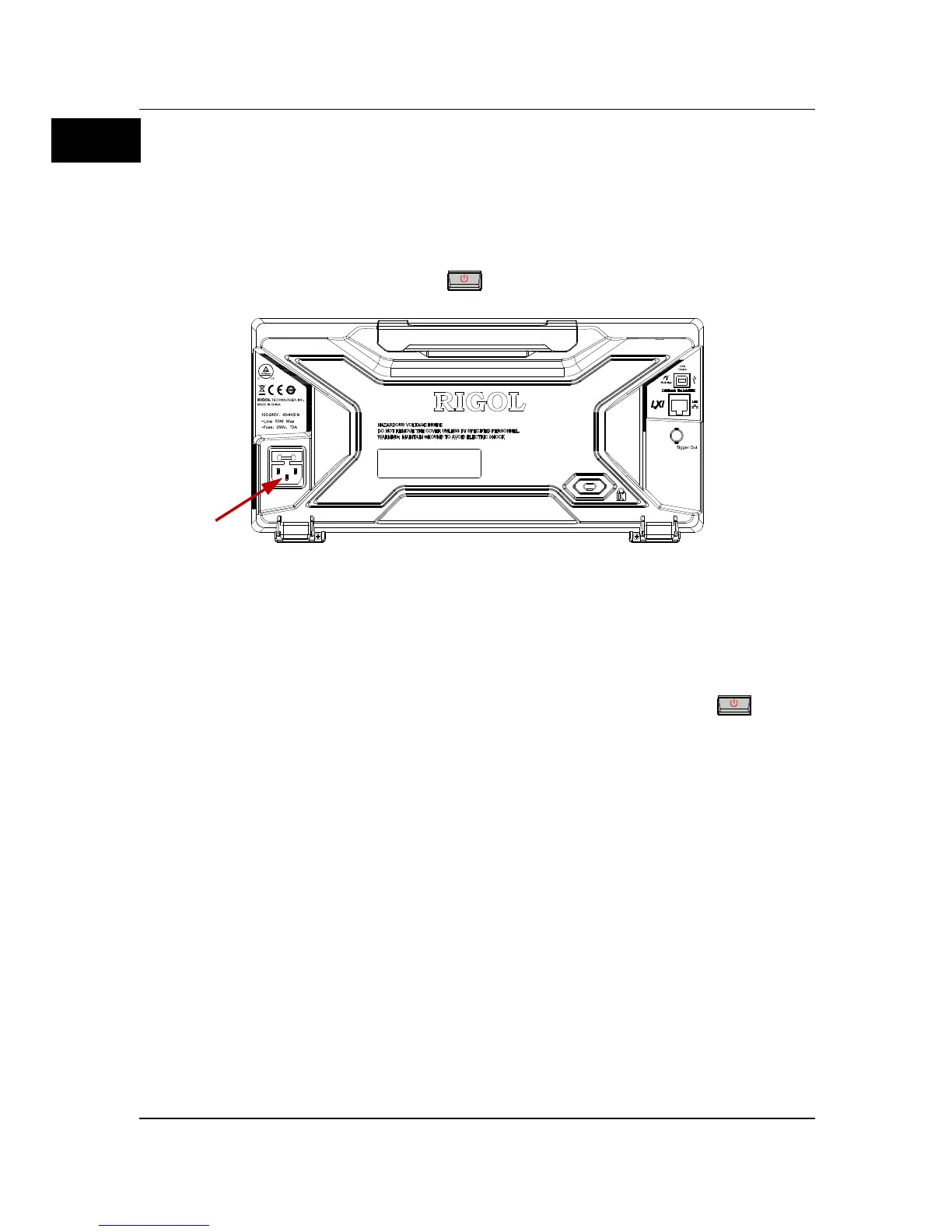

Figure 5 To Connect to AC Power
Turn-on Checkout
When the oscilloscope is connected to power, press the Power key at the
lower-left corner of the front panel to start the oscilloscope. During the start-up
process, the oscilloscope performs a series of self-tests. You can hear the
switching sound of the relay. After the self-test, the welcome screen is
displayed. The "Current Options" dialog box will be displayed if your instrument
currently has installed the trial versions of the options. From this dialog box,
you can view the type, the name, the version, and the remaining trial time of
the option currently installed. The instrument is installed with the trial versions
of the options before leaving factory. Its remaining trial time is about 2,000
minutes.
Power Cord
Connector
