RIGOL Chapter 6 MATH and Measurement
6-34 MSO1000Z/DS1000Z User’s Guide
Note:
― When the cursor measurement source is LA and the main time base is
measured (namely the “Main” region is selected), the measurement
results are as shown in the figure below. There are no measurement
values in digital channels and the measurement values are replaced by
“*”.
― When the current measurement source is MATH, you can only measure
the zoom region using the cursor. At this point, “Zoom” is automatically
selected and Region is grayed out.
 When the XY time base mode is selected, the measurement values of the
manual cursor are displayed on the lower-half screen.

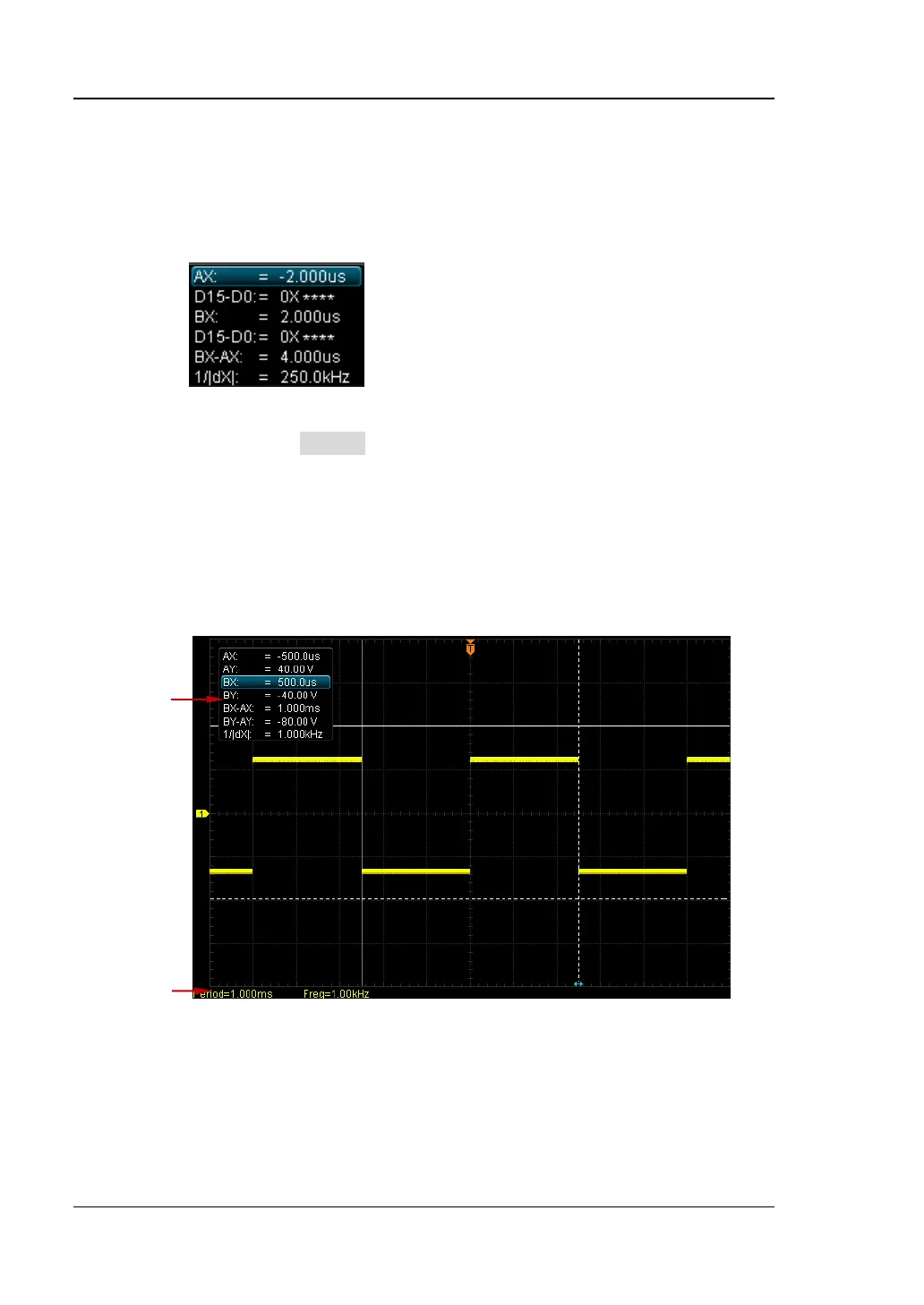

6. Measurement Example
Use manual cursor measurement to measure the period (BX-AX=1 ms) of a
square waveform and the result is equal to the period from auto measurement,
as shown in the figure below.
Figure 6-7 Manual Cursor Measurement Example
Auto
Measurement
Cursor
Measurement
