Rigol MSO1000Z series User Manual

Chapter 1 Quick Start RIGOL
MSO1000Z/DS1000Z User’s Guide 1-9
Front Panel Overview

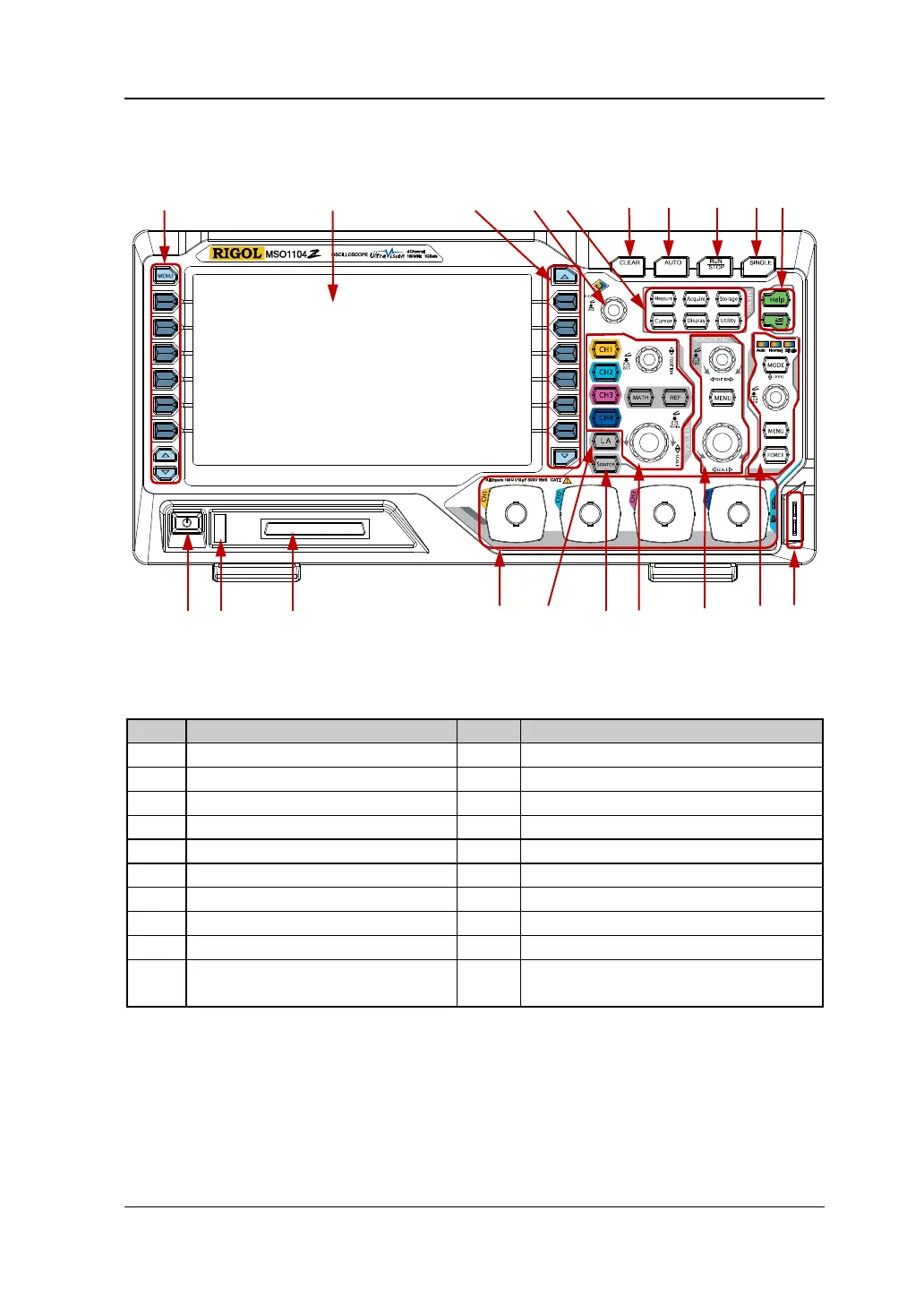

Figure 1-10 Front Panel Overview
Table 1-1 Front Panel Descriptions
No.
Description
No.
Description
1
Measurement Menu Softkeys
11
Power Key
2
LCD
12
USB HOST Interface
3
Function Menu Softkeys
13
Digital Channel Input Interface
[1]
4
Multifunction Knob
14
Analog Channel Input Interface
5
Common Operation Keys
15
Logic Analyzer Control Key
[1]
6
CLEAR
16
Signal Source
[2]
7
AUTO
17
VERTICAL Control
8
RUN/STOP
18
HORIZONTAL Control
9
SINGLE
19
TRIGGER Control
10
Help/Print
20
Probe Compensation Signal
Output Terminal/Ground Terminal
Note
[1]
: Only applicable to MSO1000Z and MSO1000Z-S models mixed signal digital
oscilloscopes.
Note
[2]
: Only applicable to MSO1000Z-S and DS1000Z-S models digital oscilloscopes.
3 4 5 6 7 8 9 10
1 2
11 12 13 14 15 16 17 18 19 20
