Chapter 16Remote Control RIGOL
MSO1000Z/DS1000Z User’s Guide 16-7

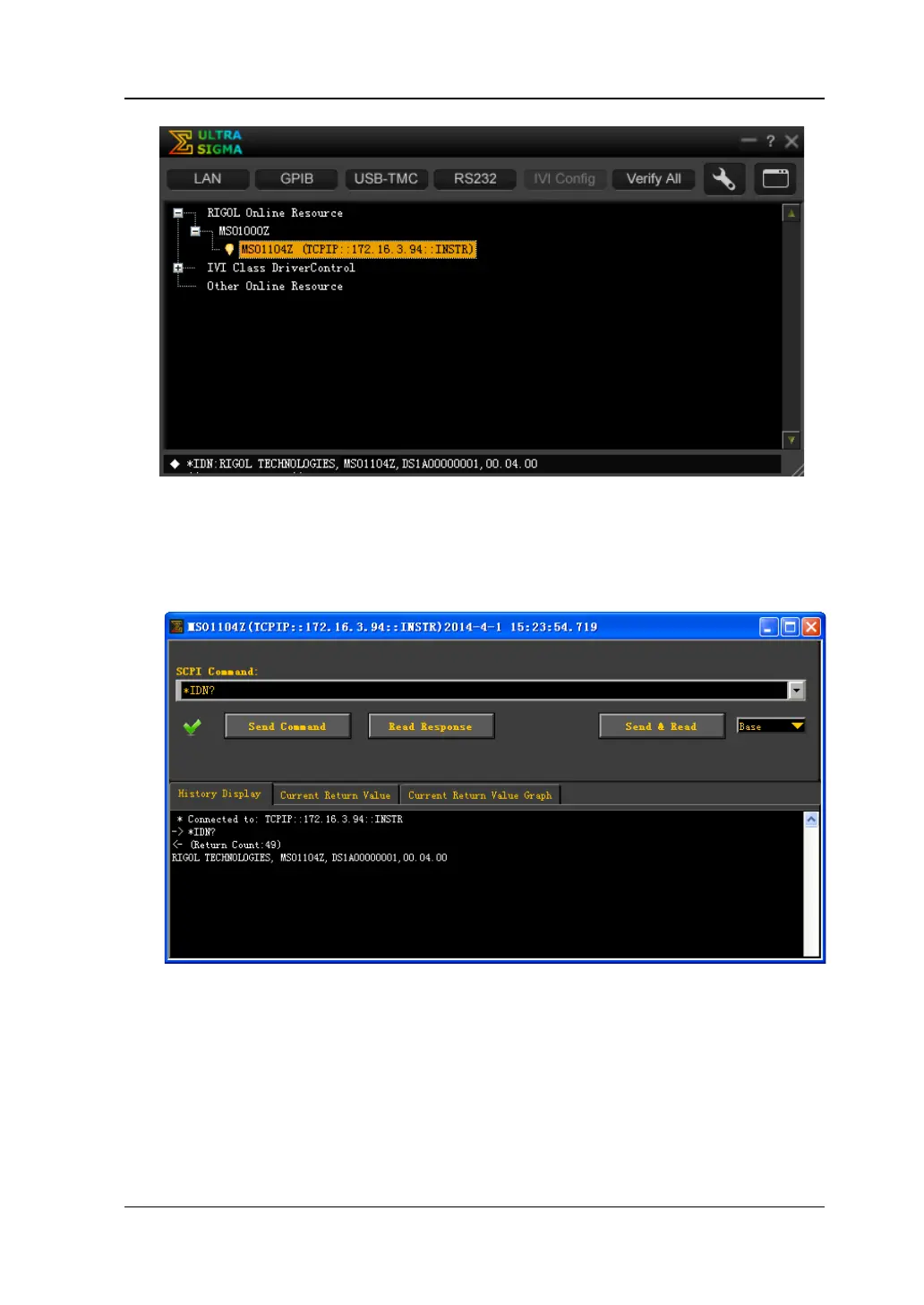

5. Communication test
Right click the resource name “MSO1104Z (TCPIP::172.16.3.94::INSTR)” to
select “SCPI Panel Control” to turn on the remote command control panel (as
shown in the figure below) through which you can send commands and read
data.
6. Load LXI webpage
As this oscilloscope conforms to LXI CORE 2011 DEVICE standards, you can load
LXI webpage through Ultra Sigma (right-click the resource name and select
LXI-Web; or directly input the IP address in the browser). Various important
information about the oscilloscope (including the model number, manufacturer,
serial number, description, MAC address and IP address) will be displayed on the
webpage.
To Next Page
