Chapter 16Remote Control RIGOL
MSO1000Z/DS1000Z User’s Guide 16-9
select the GPIB address set in the oscilloscope from the comboBox of
“0::INSTR”.
 Click “Test” to check whether the GPIB communication works normally; if
not, please follow the corresponding prompt messages to solve the
problem.
5. View device resource
Click “OK” to return back to the main interface of Ultra Sigma. The GPIB
instrument resources found will appear under the “RIGOL Online Resource”
directory.
6. Communication Test

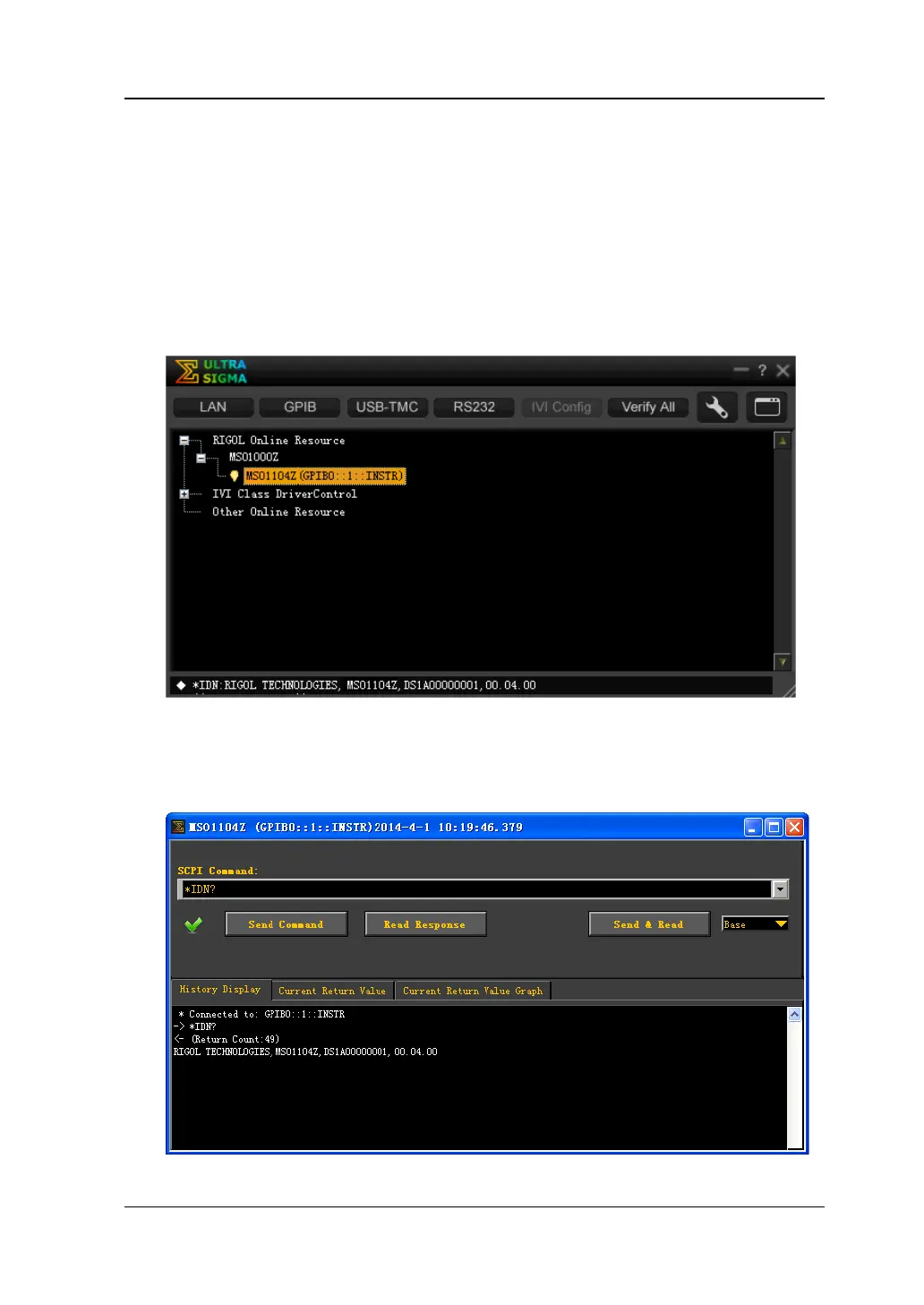

Right-click the resource name “MSO1104Z (GPIB0::1::INSTR)” to select “SCPI
Panel Control” to turn on the remote command control panel through which you
can send commands and read data as shown in the figure below.
