RIGOL Chapter 5 To Trigger the Oscilloscope
5-12 MSO1000Z/DS1000Z User’s Guide

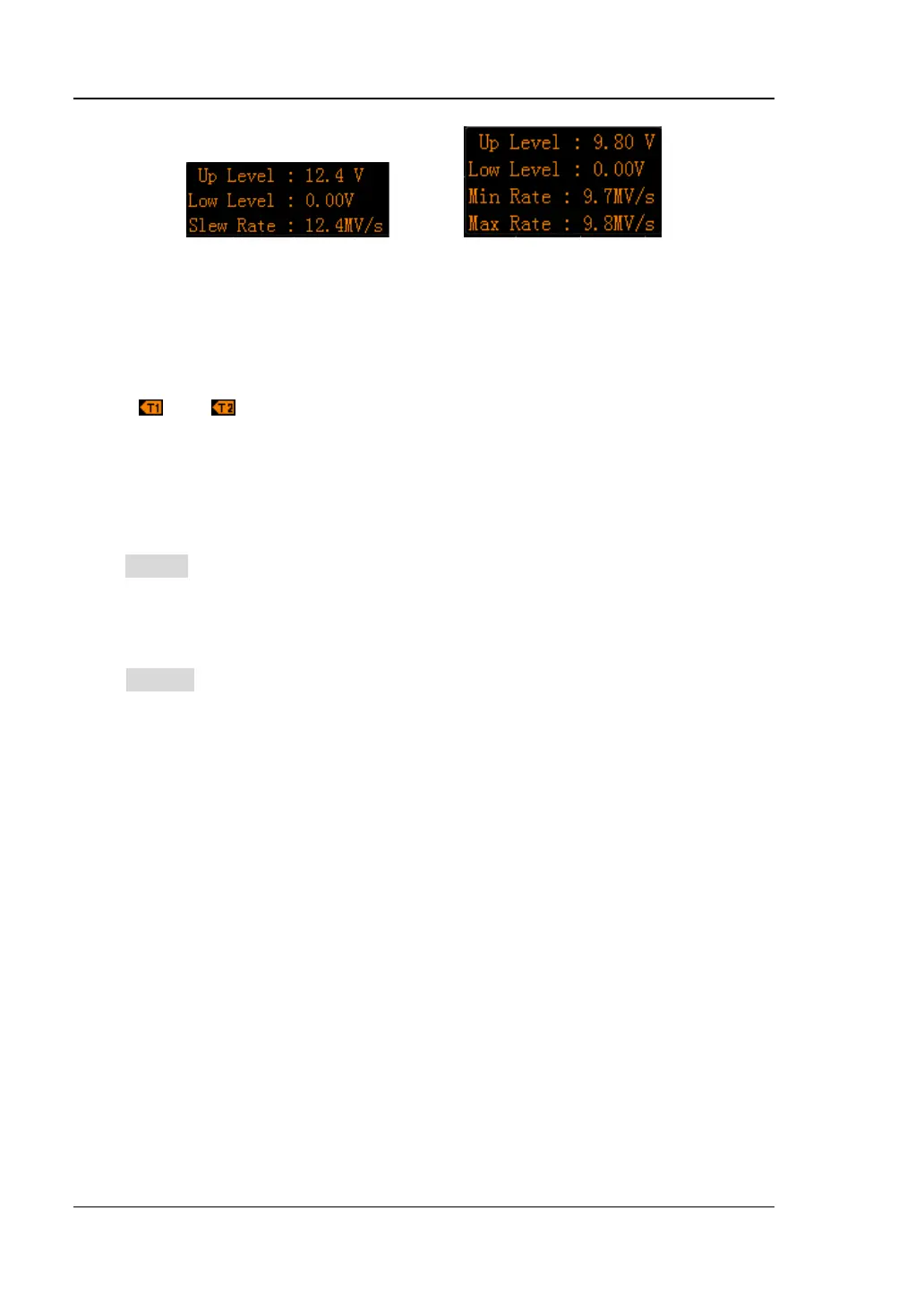

(a) (b)
Figure 5-5 Trigger Level Information Display
Note: Under the “Slope” trigger menu, you can also press down the trigger level
knob continuously to switch the vertical window.
During the adjustment of trigger level, two orange trigger level lines and two trigger
marks (
and ) appear on the screen and move up and down with the rotation
of the knob. At the same time, the current trigger level information is displayed at the
lower right corner of the screen according to different slope condition settings. After
stopping turning the knob, the trigger level lines and trigger level information
disappear in about 2 s.
Trigger Mode:
Press Sweep to open the trigger mode list and select auto, normal or single. For the
details, please refer to “
Trigger Mode”. The corresponding status light of the
current trigger mode turns on.
Trigger Setting:
Press Setting to set the trigger parameters (trigger holdoff and noise rejection)
under this trigger type.
