SmartCraft PCM
Page 8

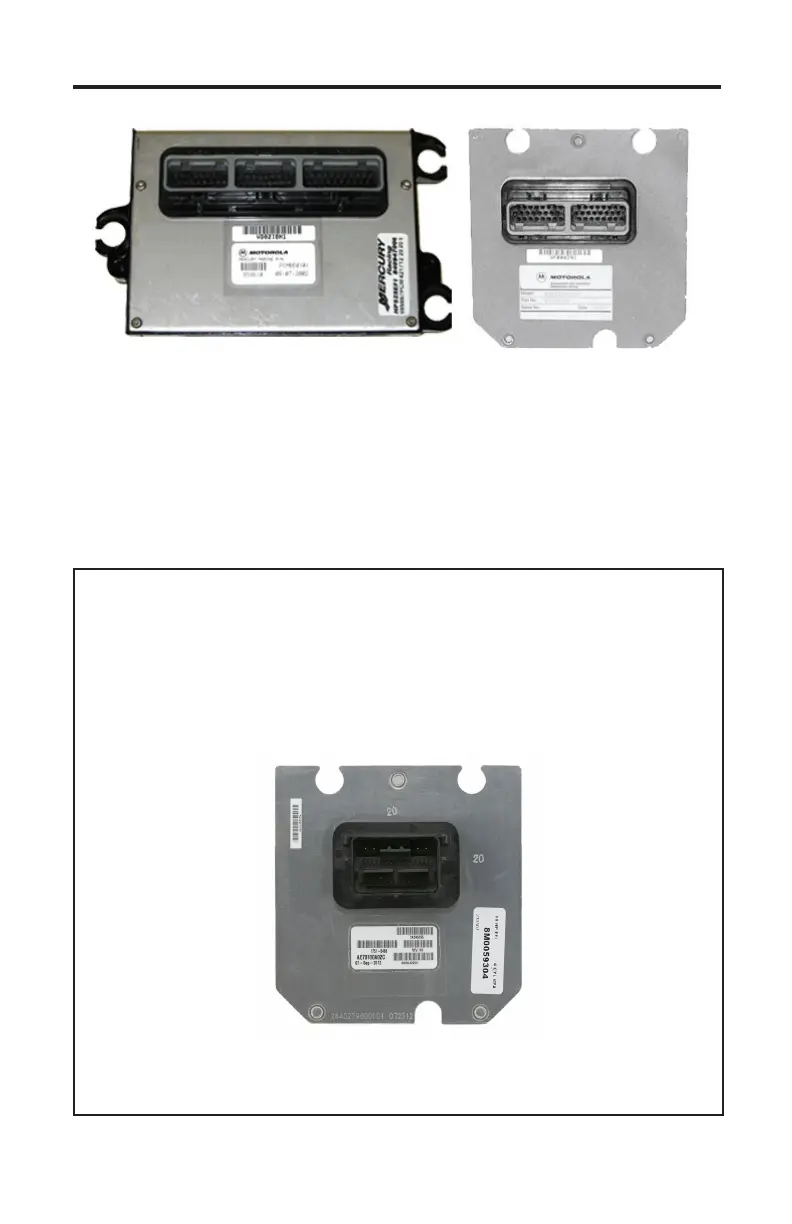

Figure 2 Mercury PCM-555 & ECM-555
is section describes TechMate Pro scan tool functions related to outboard
engines equipped with Mercury PCM-555 / ECM-555 SmartCra compatible
EFI modules. is system type was introduced on a variety of Mercury outboard
engines beginning in 2001. We will use the term “PCM” to refer to both styles of
EFI modules.
Figure 3 Mercury ECM-70
IMPORTANT NOTE
In 2010 Mercury introduced a new ECM-70 Smartcra compatible EFI module
as shown in Figure 3. If you are working on an engine that is equipped with a
ECM-70 EFI module please refer to the Smartcra ECM-70 section in this
manual for diagnostic adapter requirements and details on connecting the scan
tool to the engine.
