1998-2005 2 & 3 Cylinder Carb 4-Cycle
Page 43

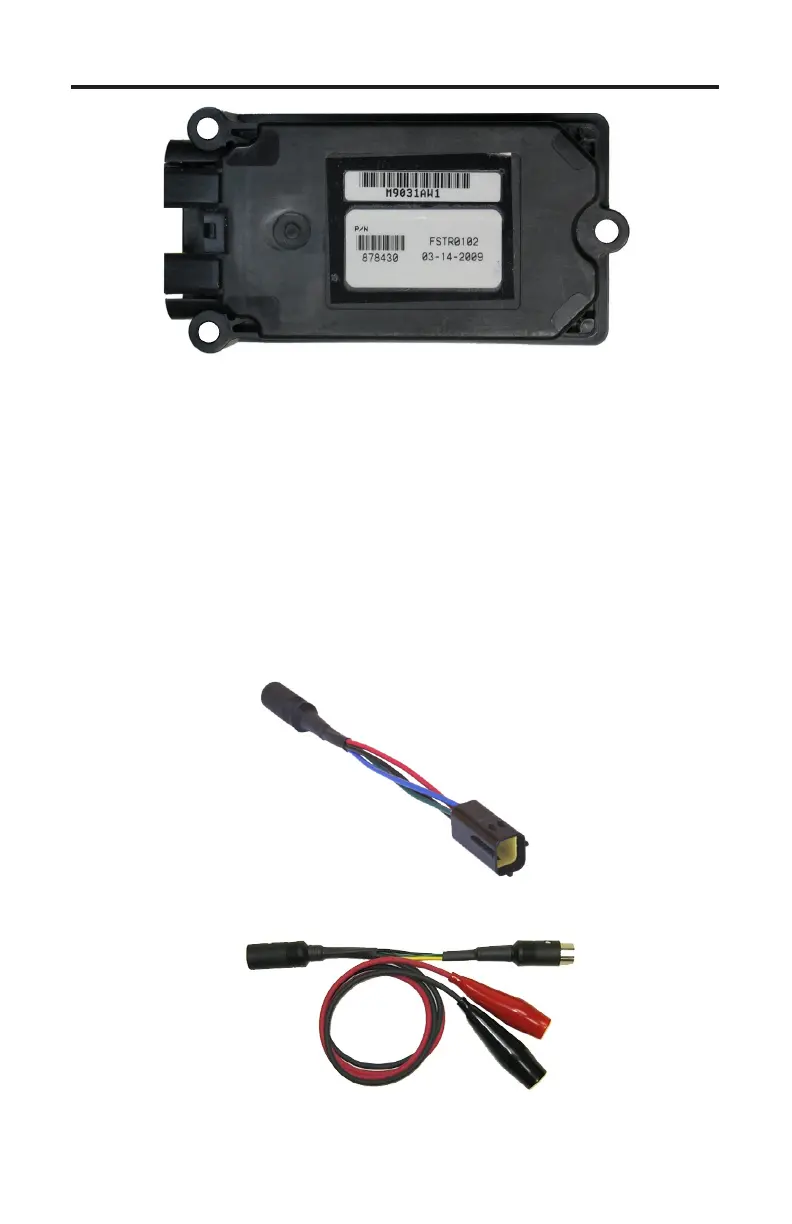

Figure 27 Mercury 24-Pin Carbureted 4-Stroke ECM
is system type applies to two and three cylinder 25HP, 30HP, 40HP, 50HP and
60HP carbureted 4-stroke engines produced by Mercury between 1998 and 2005.
Many of these models were equipped with a 24 pin ECM that provided spark
control and automatic fuel enrichment functions. is system was equipped with
a coolant temperature sensor, crank position sensor, oil pressure switch as well as
a small number of output devices (solenoids, etc...).
e scan tool provides access to the ECM’s sensor and status data, no fault codes
are used or available from this system type.
Connecting to the Engine: (2 adapters are required as shown below)
4-pin Adapter
Rinda Tech P/N 94011
In-Line Power Adapter
Rinda Tech P/N 94037
