3.2.1.8 Low Current noise cutoff.
This screen allows the user to set Low noise current cutoff in mA.
.
Pressing “ Up” key accepts the present value and
advance to Energy Display on Modbus.
Pressing the “ Down” key will enter the “Low current
noise cutoff Edit” mode and scroll the “Value” through
0 & 30 and wrapping back to 0. Setting 30 will display
measured currents as 0 below 30 mA.

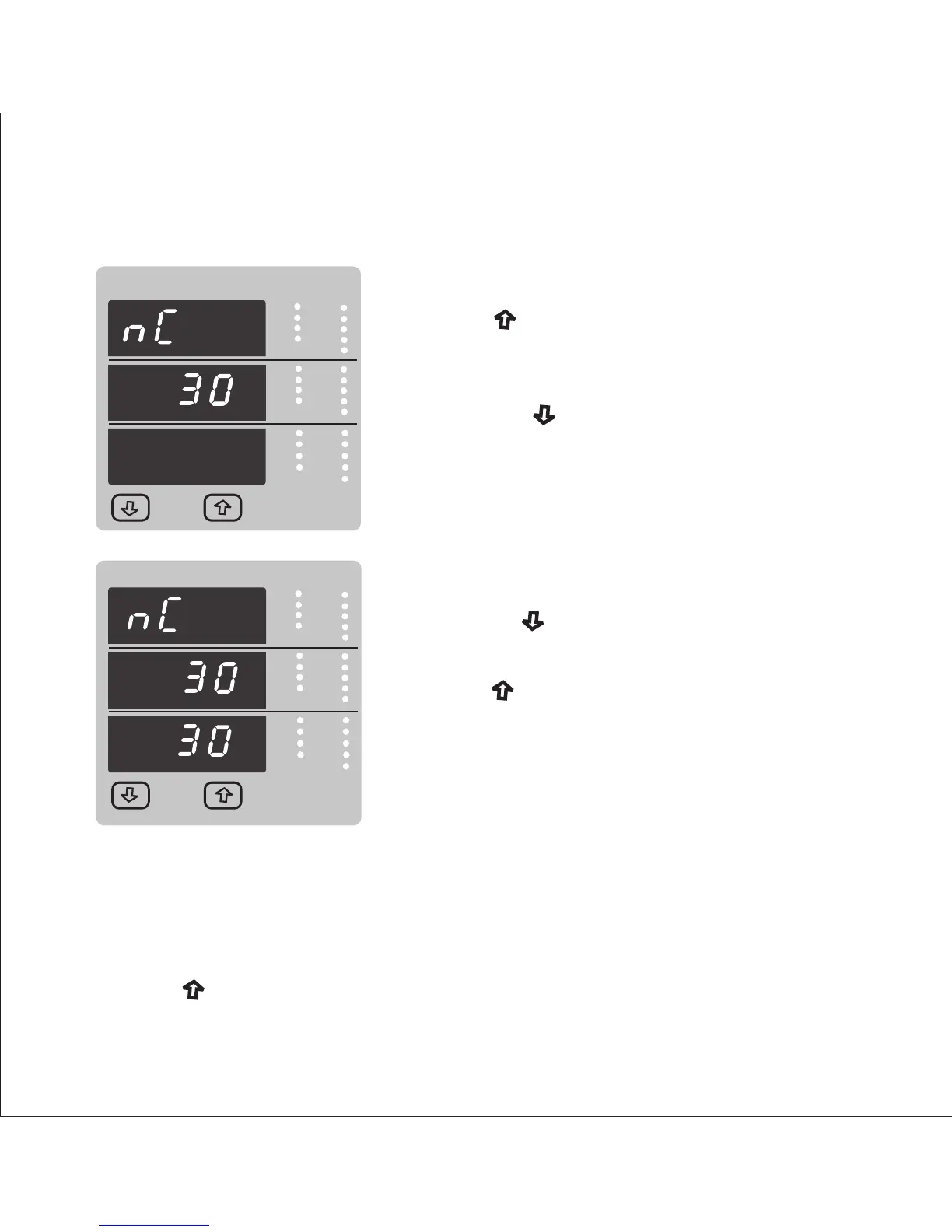

Low current cutoff Edit.
(See section 3.2.1.9)
VYB
VRY
KVAr
Sys
V
A
KVA
Min
KW
VBR
Angle
Max
x1000
KVArh
x1000
x1000
IN
Ph R
Hz
KVAh
Ph Y
P.F.
KWh
Ph B
KAh
%THD
Demand
Low current noise cutoff Confirmation.
Pressing “ Up” key set displayed value and
Advance to the Energy Display on Modbus selection
(See section 3.2.1.9)
pressing the “ Down” key will re-enter the “Low current
Noise cutoff Edit” mode.
VYB
VRY
KVAr
Sys
V
A
KVA
Min
KW
VBR
Angle
Max
x1000
KVArh
x1000
x1000
IN
Ph R
Hz
KVAh
Ph Y
P.F.
KWh
Ph B
KAh
%THD
Demand
3.2.1.9. Energy Display on modbus
This screen enable user to set energy in terms of Wh / KWh / MWh on RS 485 Output
depending as per the requirement .Same applicable for all types of energy.
Pressing “ Up” key accepts the presents value and advances to the “Energy digit reset
count”menu (See section 3.2.1.10).
24
