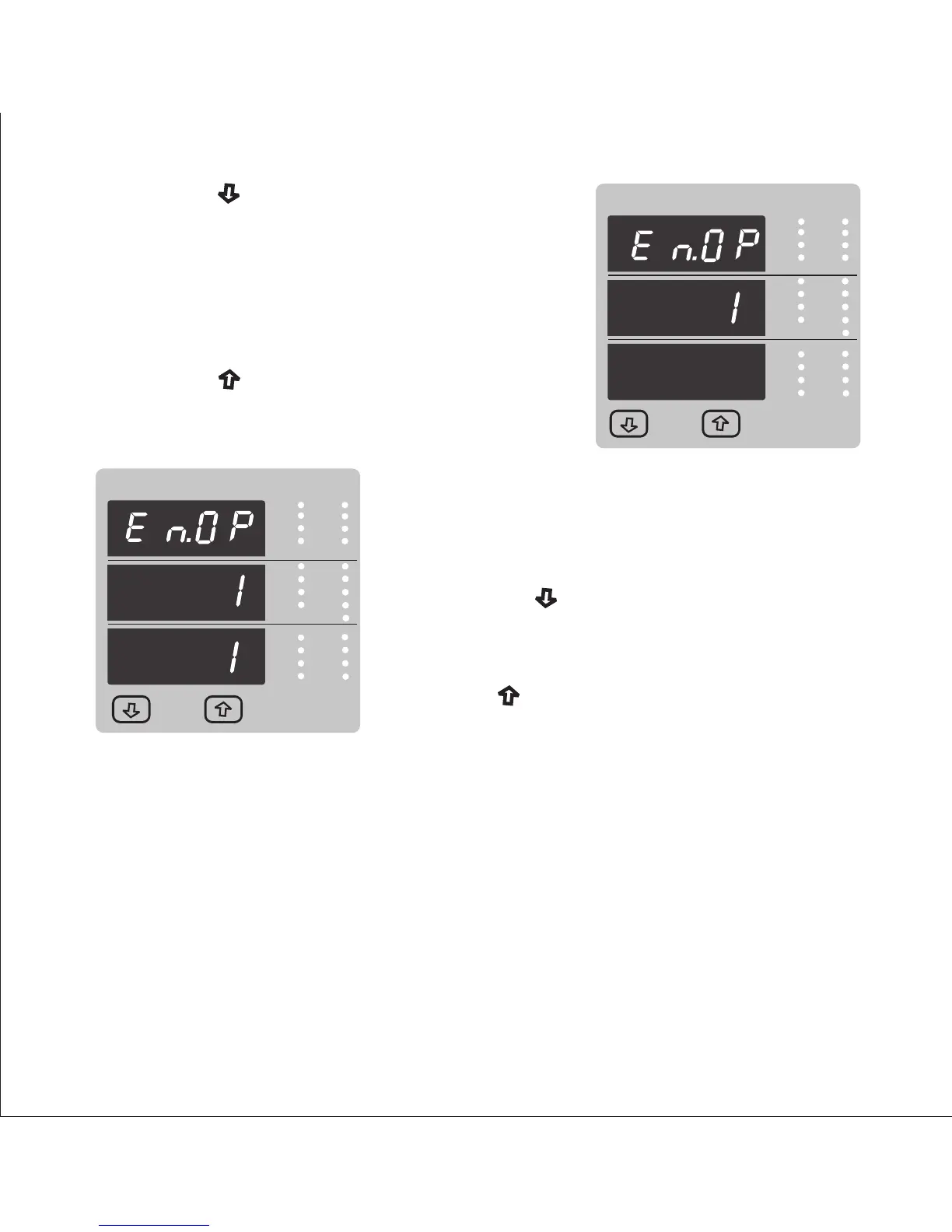

Pressing the “ Down” key will enter the “Energy
Display On Modbus Edit” mode and scroll the value
through the values 1,2 & 3 wrapping back to 1
1 : Energy In Wh
2 : Energy in KWh
3: Energy in MWh.
Pressing the “ Up” key advances to the “Energy
Display On Modbus Confirmation” menu.
VRY
KVAr
Sys
V
KW
VBR
Angle
Max
x1000
KVArh
x1000
IN
Ph R
P.F.
KWh
Ph B
A
VYB
KVA
Min
x1000
Hz
KVAh
Ph Y
%THD
x1000
Hz
KVAh
Ph Y
%THD
Pressing “ Up” key sets the displayed value and
will advance to the “Energy digit reset count” menu.
(See section 3.2.1.10)
Energy Display On Modbus Confirmation.
This screen will only appear following an edit of the
Energy Display On Modbus.
VRY
KVAr
Sys
V
KW
VBR
Angle
Max
x1000
KVArh
x1000
IN
Ph R
P.F.
KWh
Ph B
A
VYB
KVA
Min
x1000
Hz
KVAh
Ph Y
%THD
x1000
Hz
KVAh
Ph Y
%THD
Pressing the “ Down” key will enter the “Energy
Display On Modbus Edit” Edit” stage by blanking the
bottom line of the display.
Note : Default value is set to ‘1’ i.e. Energy on Modbus
will be in terms of Wh/VArh/VAh/Ah resp.
3.2.1.10 Energy Digit reset count :
This screen enables user for setting maximum energy count after which energy will rollback
to zero depends upon setting of Wh,KWh & MWh.
25
