3.2.4.1.2 Relay 2 Output Selection :
Configuration of Relay 2 for Pulse or Limit Output is same as Relay 1. If you Select the
Pulse output option for Relay 1 same setting will be applicable for Relay 2 except
assignment of energy to Pulse output (i.e. Energy assignment of both relay can be different.)

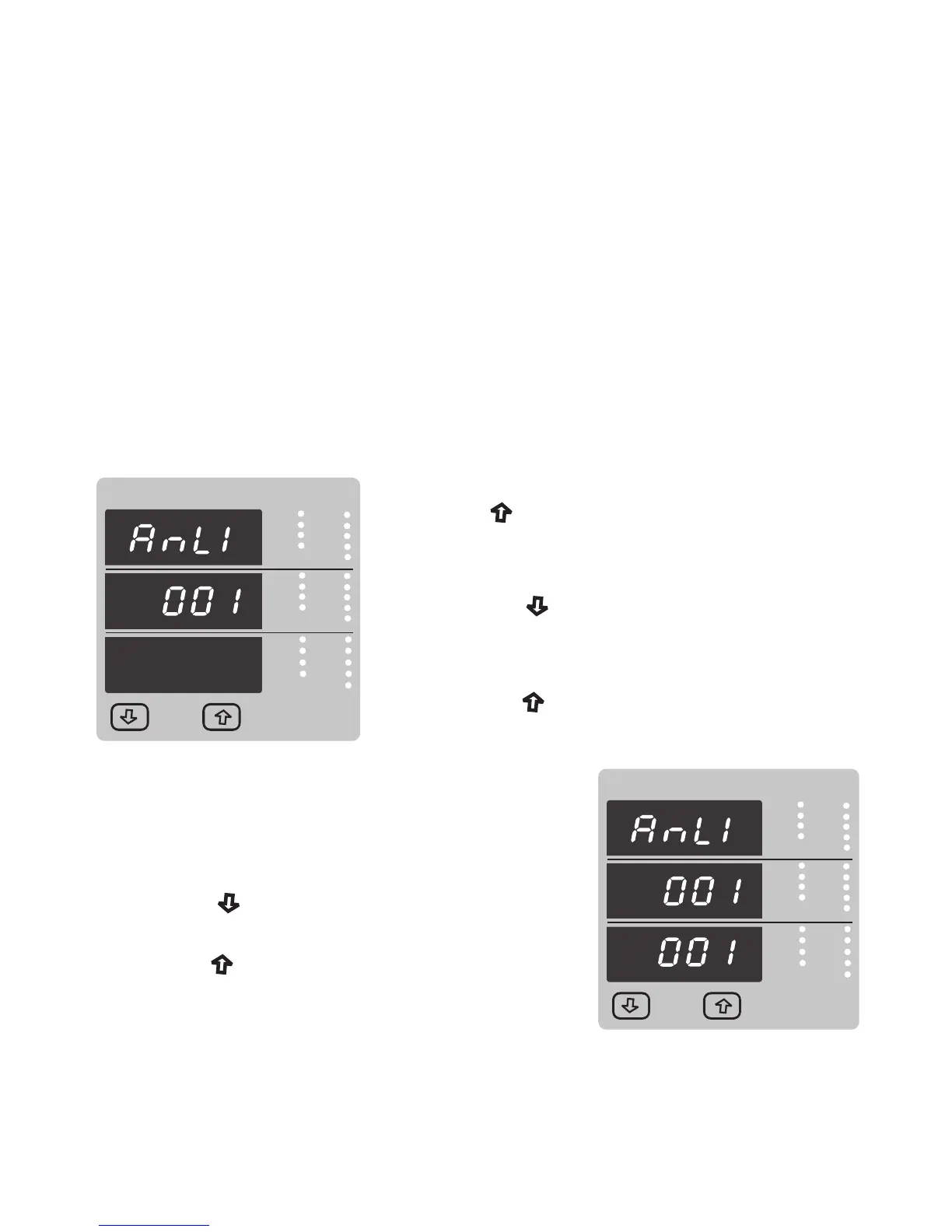

3.2.4.1.3.1 Parameter setting for Analog Output 1 (Optional)
This screen is for analog output 1 only . It allows the user to set analog output 1 to corresponding
measured parameter . Refer table2 “ Parameter for Analog & Limit output “.
3.2.4.1.3 Analog Output
Pressing “ Up” key accepts the present value and
advance to the Analog output 2 selection (see section
3.2.4.1.3.2 ).
Pressing the “ Down” key will enter the “ Analog
output 1 Edit” mode and scroll the values, as per Table 2
“ Parameter for Analog & Limit output”
Pressing the “ Up” key advance to the Analog output 1
confirmation screen .
VYB
VRY
KVAr
Sys
V
A
KVA
Min
KW
VBR
Angle
Max
x1000
KVArh
x1000
x1000
IN
Ph R
Hz
KVAh
Ph Y
P.F.
KWh
Ph B
KAh
%THD
Demand
VYB
VRY
KVAr
Sys
V
A
KVA
Min
KW
VBR
Angle
Max
x1000
KVArh
x1000
x1000
IN
Ph R
Hz
KVAh
Ph Y
P.F.
KWh
Ph B
KAh
%THD
Demand
Pressing the “ Down” key will re-enter the “ Analog
Analog output 1 Confirmation :
Pressing the “ Up” key sets the displayed value and
will advance to the Analog output 2 selection screen
( see section 3.2.4.1.3.2 )
This Screen will appear only after edit mode of Analog
output 1 Parameter.
output 1 Edit”
