Rishabh RISH Master 3440 - 3.2.2.2 RS 485 Baud Rate:; 3.2.2.3 RS 485 Parity Selection:

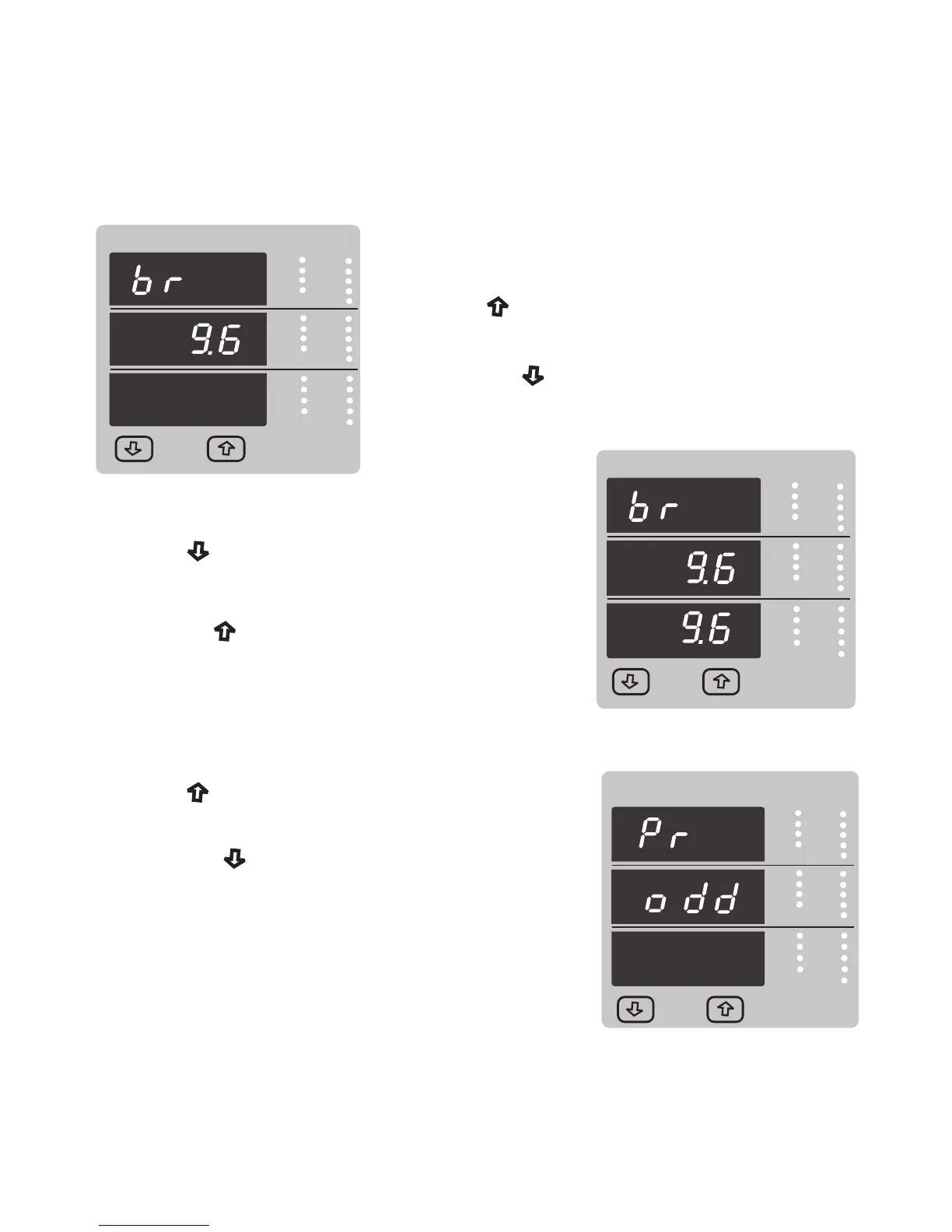

3.2.2.2 RS 485 Baud Rate :
This screen allows the user to set Baud Rate of RS 485 port.
The values displayed on screen are in kbaud ..
Pressing “ Up” key accepts the present value and
advance to the Parity Selection (See Section 3.2.2.3)
Pressing the “ Down” key will enter the “Baud Rate
Edit” mode and scroll the value through 2.4, 4.8, 9.6 ,
19.2 and back to 2.4
VYB
VRY
KVAr
Sys
V
A
KVA
Min
KW
VBR
Angle
Max
x1000
KVArh
x1000
x1000
IN
Ph R
Hz
KVAh
Ph Y
P.F.
KWh
Ph B
KAh
%THD
Demand
RS 485 Baud Rate confirmation :
Pressing “ Down” key will be re-enter into the.
Pressing the “ Up” key will select the value and
advances to the Parity Selection (See Section 3.2.2.3).
Baud Rate Edit mode
VYB
VRY
KVAr
Sys
V
A
KVA
Min
KW
VBR
Angle
Max
x1000
KVArh
x1000
x1000
IN
Ph R
Hz
KVAh
Ph Y
P.F.
KWh
Ph B
KAh
%THD
Demand
VYB
VRY
KVAr
Sys
V
A
KVA
Min
KW
VBR
Angle
Max
x1000
KVArh
x1000
x1000
IN
Ph R
Hz
KVAh
Ph Y
P.F.
KWh
Ph B
KAh
%THD
Demand
3.2.2.3 RS 485 Parity Selection :
This screen allows the user to set Parity & number of stop bits of
RS 485 port.
Pressing “ Up” key accepts the present value and
advance to Menu selection (see section 3.2).
Pressing the “ Down” key will enter the “Parity & stop
bit Edit” mode and scroll the value through
odd : odd parity with one stop bit
no 1 : no parity with one stop bit
no 2 : no parity with two stop bit
E : even parity with one stop bit
28
