Rishabh RISH Master 3440 - 3.2.2 Communication Parameter Selection:; 3.2.2.1 Address Setting:

VYB
VRY
KVAr
Sys
V
A
KVA
Min
KW
VBR
Angle
Max
x1000
KVArh
x1000
x1000
IN
Ph R
Hz
KVAh
Ph Y
P.F.
KWh
Ph B
KAh
%THD
Demand

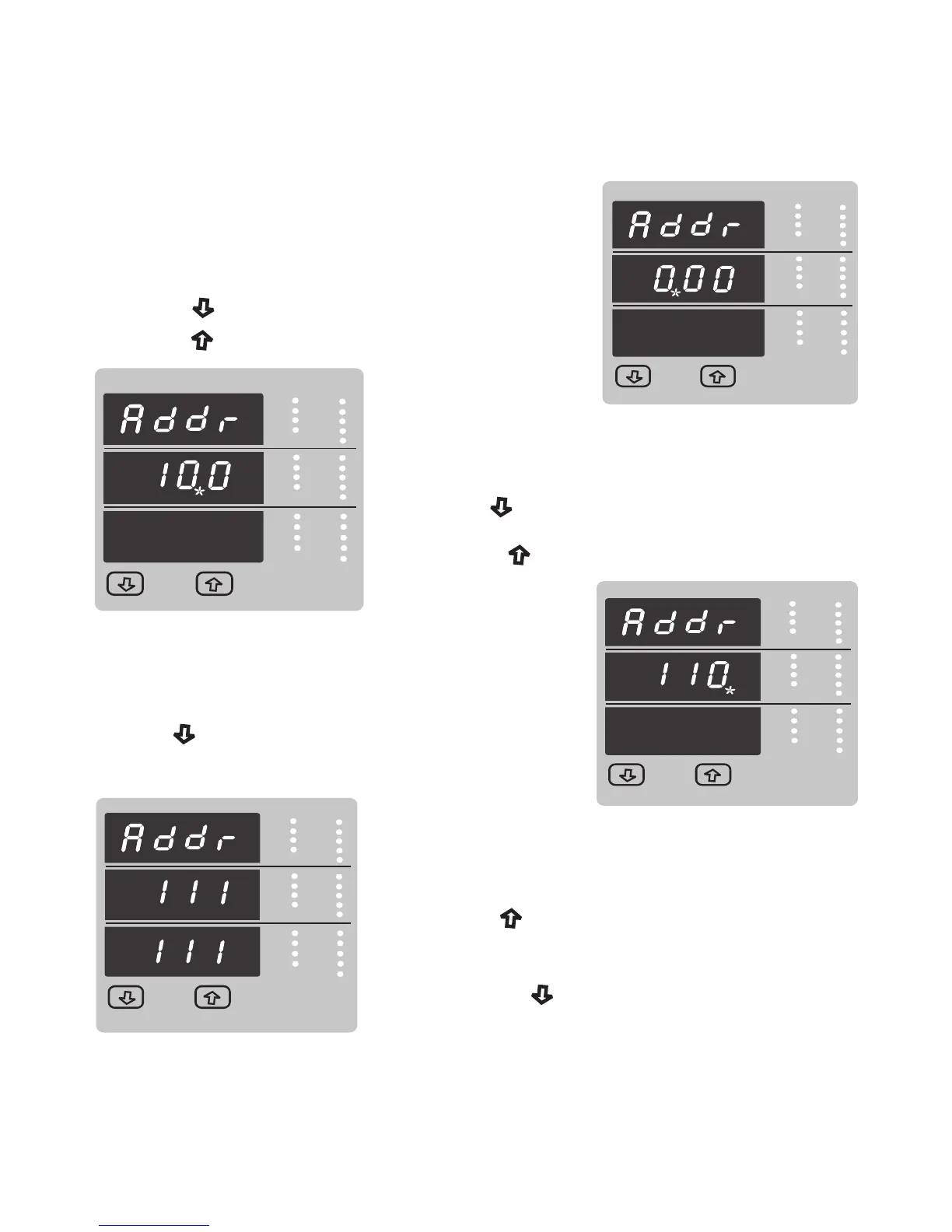

Enter Address, first digit entered, prompt for second digit
(* Denotes that decimal point will be flashing).
Use the “ Down” key to scroll the value of the second
Press the “ Up” key to advance to next digit.
Enter Address, prompt for first digit.
(* Denotes that decimal point will be flashing).
Press the “ Down” key to scroll the value of the first digit
Press the “ Up” key to advance to next digit.
The range of allowable address is 1 to 247 .
