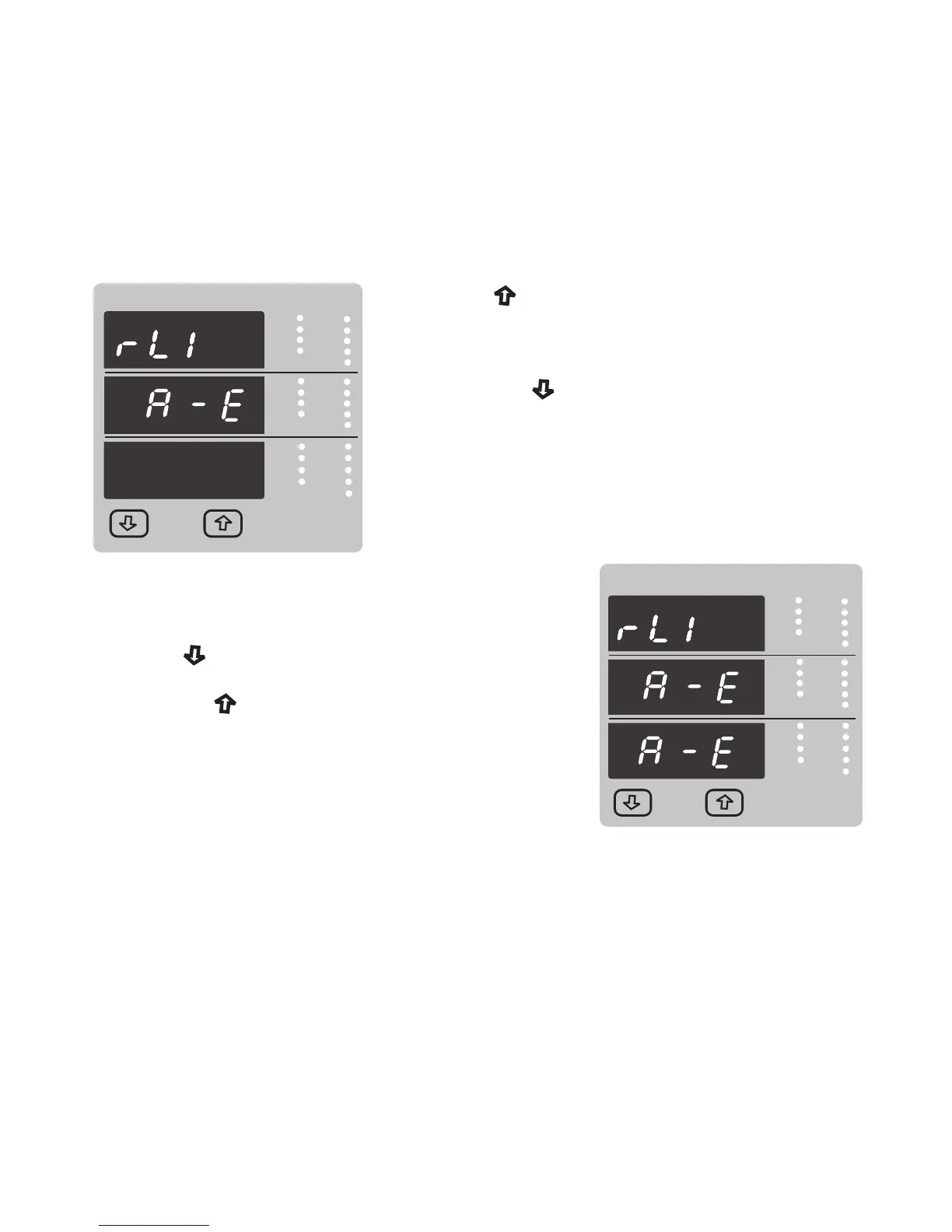

3.2.4.1.1.1.1 Assignment of Energy to pulse output (Relay 1) :
This screen allows the user to assign pulse output to energy (for Relay 1)
Pressing “ Up” key accepts the present setting
and advance to “Pulse duration selection”
(see section 3.2.4.1.1.1.2).
Pressing the “ Down” key will enter into edit mode
and scroll through the energy setting
A - E : Apparent Energy
I - E : Import Active Energy
E - E : Export Active Energy
I - rE : Import Reactive Energy
E - rE : Export Reactive Energy
A - H : Ampere Hour
VYB
VRY
KVAr
Sys
V
A
KVA
Min
KW
VBR
Angle
Max
x1000
KVArh
x1000
x1000
IN
Ph R
Hz
KVAh
Ph Y
P.F.
KWh
Ph B
KAh
%THD
Demand
VYB
VRY
KVAr
Sys
V
A
KVA
Min
KW
VBR
Angle
Max
x1000
KVArh
x1000
x1000
IN
Ph R
Hz
KVAh
Ph Y
P.F.
KWh
Ph B
KAh
%THD
Demand
Pressing the “ Up” key will set the value and advances
to the “ Pulse duration selection ”(see section 3.2.4.1.1.1.2).
Pulse output (for Relay 1) confirmation :
Pressing “ Down” key will be re-enter into edit mode .
3.2.4.1.1.1.2 Pulse Duration Selection:
This screen applies only to the Pulsed output mode of both the relay
This screen allows the user to set Relay energisation time in milliseconds.
36
