Hysteresis confirmation Screen.
This Screen confirms the percentage value set by user .
Press the “ Up” key to advance to next Screen.
“Energizing delay time” ( 3.2.4.1.1.2.5 )
& Screen will appear only after edit mode of Hysteresis.
Entered value for third digit .
Press the “ Up” key to advance to Hysteresis
confirmation Screen.
V
x1000
VRY
KVAr
KVArh
IN
Sys
Ph R
KAh
A
x1000
VYB
KVA
Hz
KVAh
Min
Ph Y
Demand
KW
x1000
VBR
Angle
P.F.
KWh
Max
Ph B
Max Demand
V
x1000
VRY
KVAr
KVArh
IN
Sys
Ph R
KAh
A
x1000
VYB
KVA
Hz
KVAh
Min
Ph Y
%THD
KW
x1000
VBR
Angle
P.F.
KWh
Max
Ph B
Demand

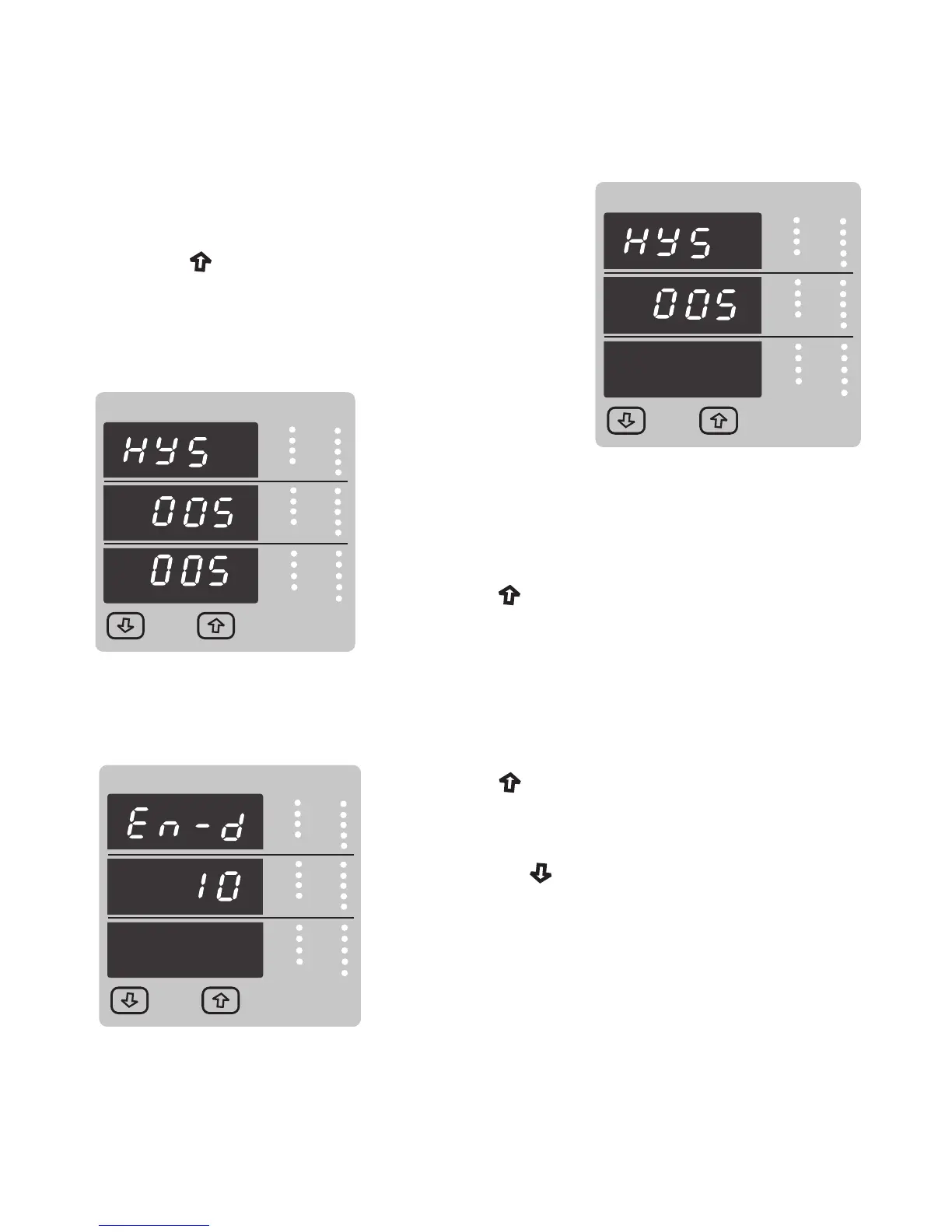

3.2.4.1.1.2.5 Energizing Delay time.
This screen allows the user to set Energizing Delay time for Relay 1 Limit Assigned Parameters.
.
Pressing “ Up” key accepts the present value and
advance to De-energizing delay screen
Pressing the “ Down” key will enter the
“Energizing Delay” Edit mode and
scroll the “Value” through 1 to10
