Trip point can be set in the range of 10% to 120 % of nominal value for Hi-Alarm &
10% to 100 % of nominal value for Lo-Alarm.
Trip point:
Hysteresis:
Energizing Delay:
De-Energizing Delay:
Hysteresis can be set in the range of 0.5% to 50 % of set trip point .

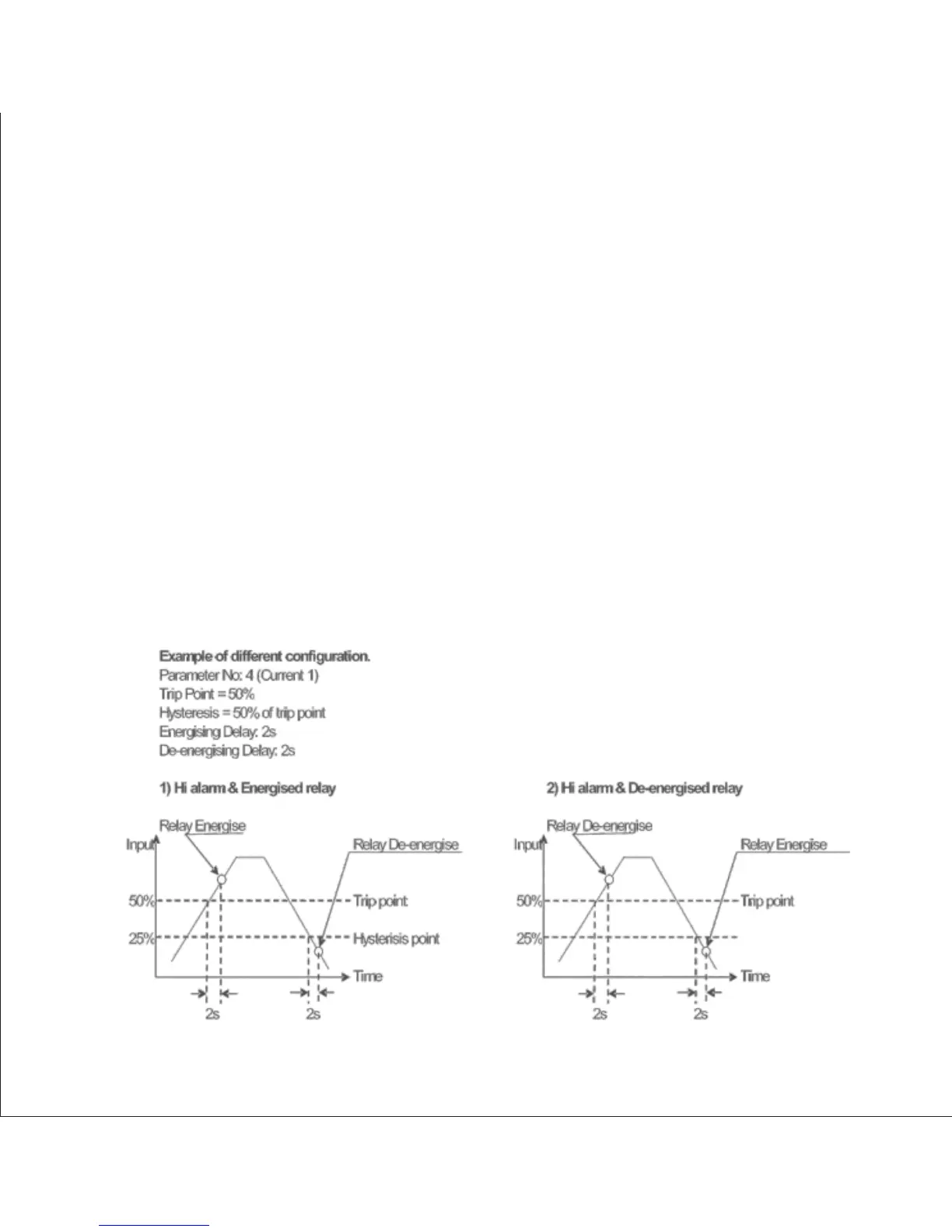

If Hi-alarm Energized or Hi-alarm De-energized is selected then relay will get
De-energized or Energized respectively, if set parameter value is less than Hysteresis
Similarly if Lo-alarm Energized or Lo-alarm De-Energized.
The energizing delay can be set in the range from1 to 10 sec.
The De-energizing delay can be set in the range from1 to 10 sec.
Note : In case of lo alarm if trip point is set at 100% then maximum 20%
Hysterisis can be set..
Hysterisis point
54
