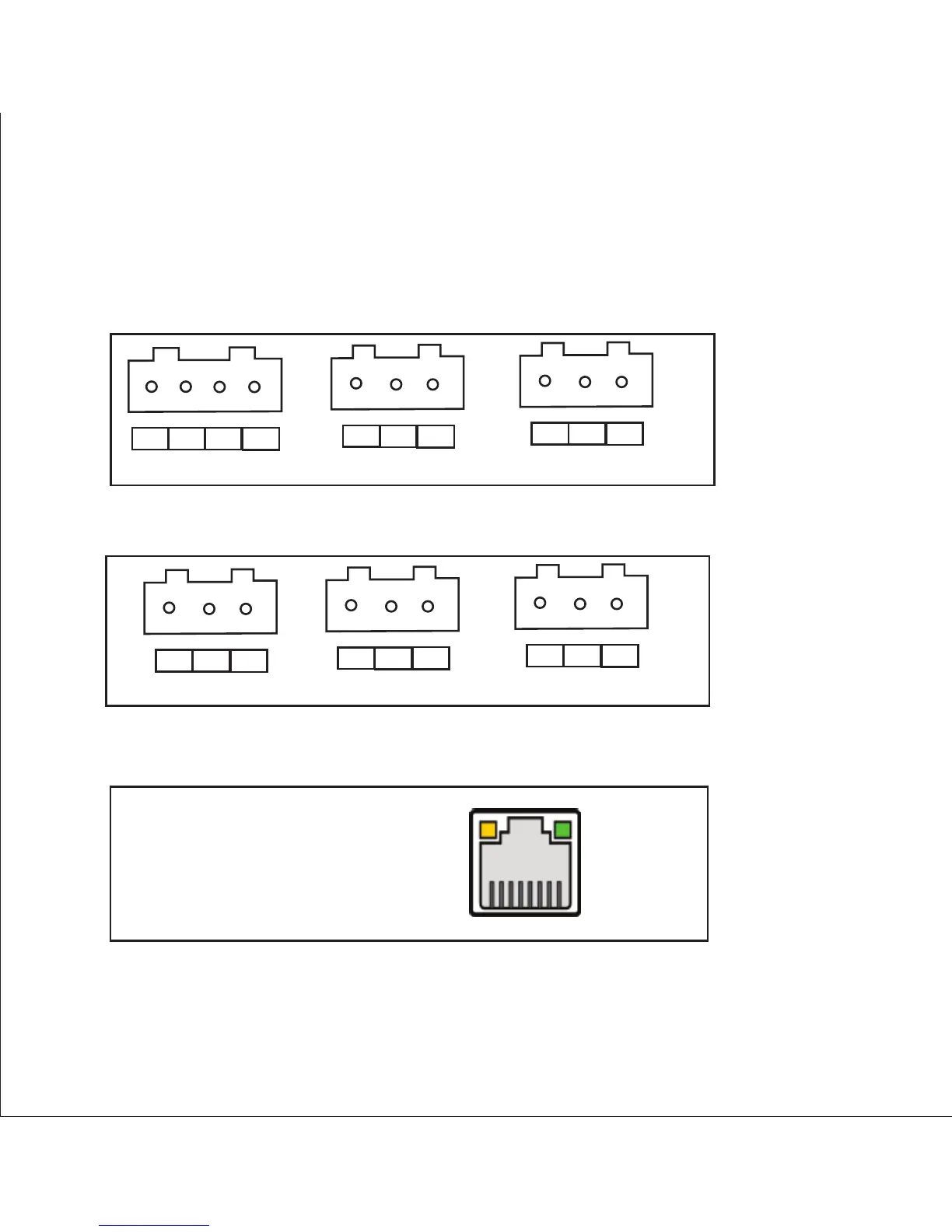

14. Connection for Optional Pulse Output / RS 485
/ Analog Output / Ethernet ( rear view of the instrument ) :
1. RS 485 Output + One Pulse (One Limit) + Two Analog Output
A1 A2
Gnd
0 - 1mA
N/O N/C
COM
Relay 2
B A
Gnd
RS 485
Gnd
2. Two Pulse (Two Limit) + RS 485 Output
N/O N/C
COM
Relay 1
N/O N/C
COM
Relay 2
B A
Gnd
RS 485
3. Ethernet
