5 Assembly and siting
EN
28 Rittal Liquid Cooling Package

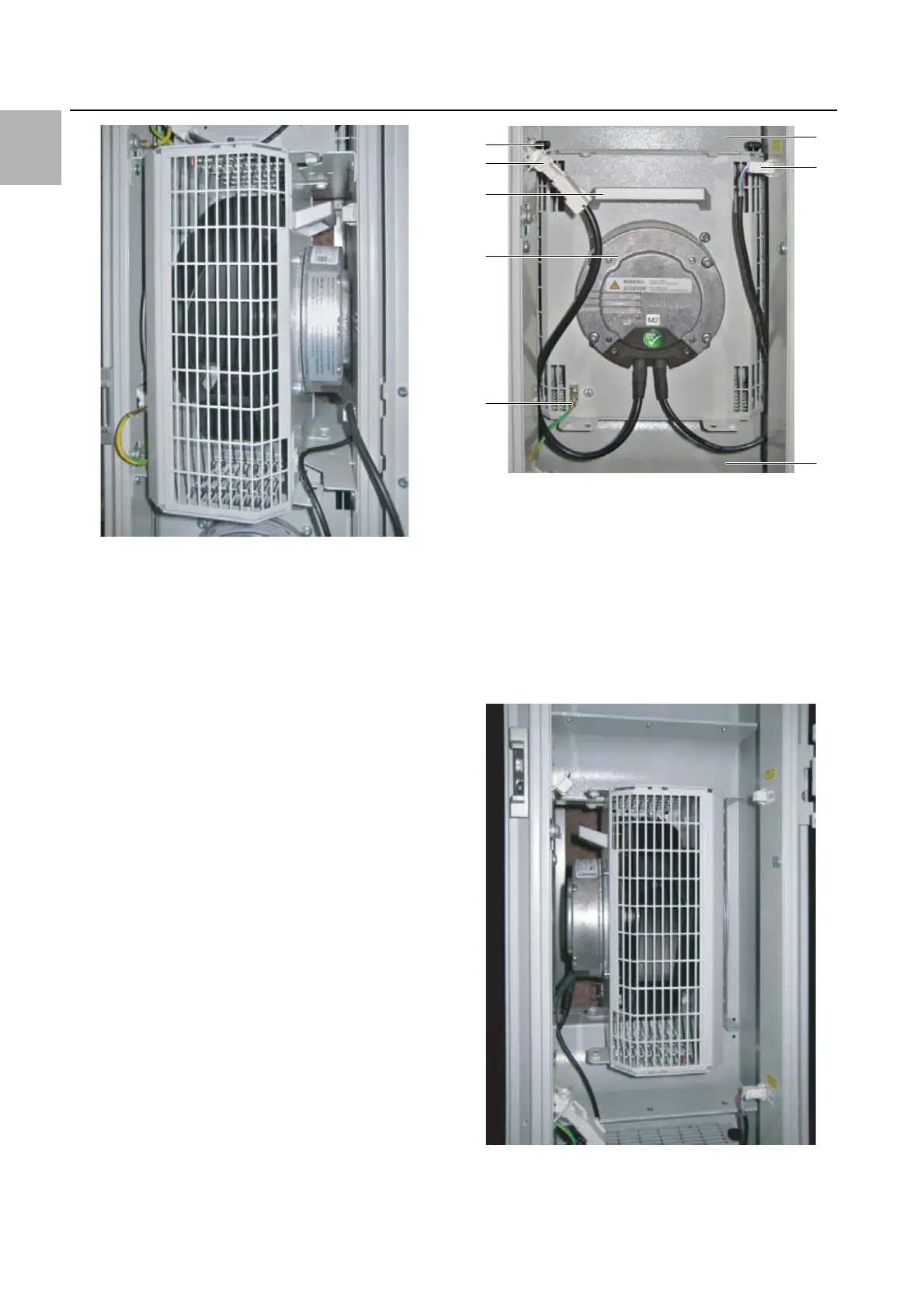

Fig. 30: Rotated fan module in fan tray – LCP Inline and
LCP Rack version
Grasp the fan module with both hands on the left
and right, and pull it out of the rack.
Configuration with LCP Inline flush:
Should you wish to exchange fan 1 and if the option-
al display with touch function is installed, please first
disconnect connector X33 of the connection cable.
Release the two fan connectors DC and AC on the
left and right (fig. 31, items 2 and 6).
Disconnect the earth connection on the fan (fig. 31,
item 3).
Loosen the two screws (fig. 31, item 7) on the fan's
air baffle plates at the top and bottom respectively.
Fig. 31: Fan module in fan tray – LCP Inline flush version
Key
1 Air baffle plate
2 Connector DC
3 Earth connection
4 Fan
5Handle
6 Connector AC
7 Screws
Rotate the fan module in the rack by 90° in a clock-
wise direction (fig. 32).
Fig. 32: Rotated fan module in fan tray – LCP Inline flush
version
5
6
4
2
1
3
7
1
